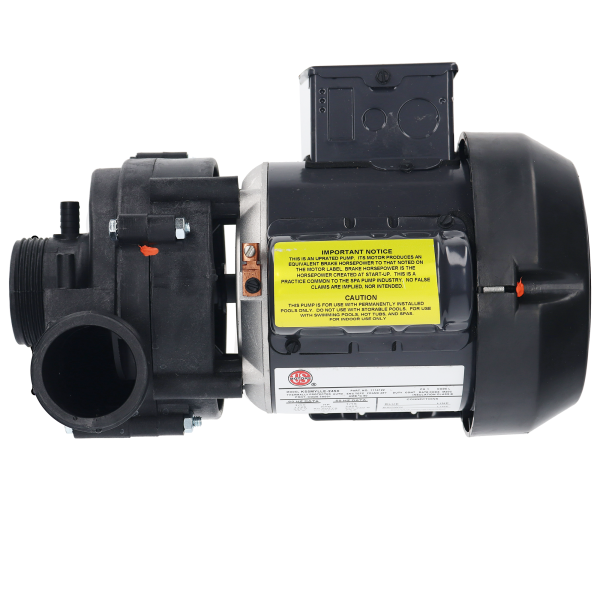

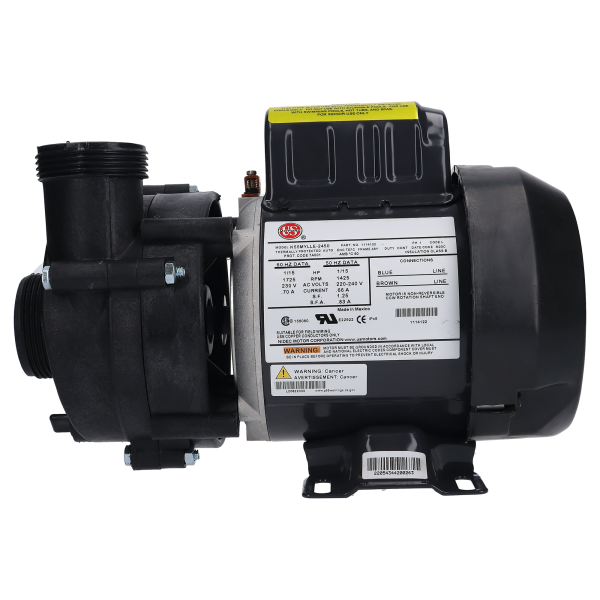

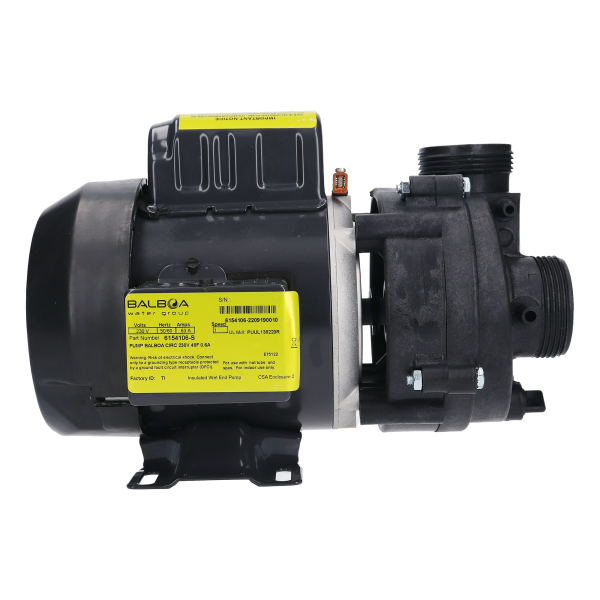

Balboa 6154106-S Circulation Spa Pump – 1/15 HP Single Speed 230V

$ 90.81

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

♨️ Balboa 6154106-S Circulation Spa Pump – 1/15 HP Single Speed 230V Energy-efficient, ultra-quiet circulation engineered for continuous spa filtration �� Product Overview The Balboa 6154106-S is a high-efficiency 230V circulation pump designed for around-the-clock operation in hot tubs and spas equipped with dedicated circulation systems. This pump pairs the time-tested Ultima wet end with Balboa’s innovative WOW motor technology, delivering up to 67 GPM of water flow while drawing a remarkably low 0.6 amps — making it one of the most energy-efficient circulation pumps available. Running on 230V/60Hz with a compact 48-frame design, the 6154106-S is purpose-built for spas wired on 230V circuits — which accounts for the majority of permanently installed hot tubs in North America. Its carbon ceramic seals with Viton® elastomers resist both heat and chemical exposure for extended service life, while the multi-directional volute provides flexibility to match virtually any plumbing configuration. Nearly silent operation ensures your spa experience is never interrupted by pump noise. ✨ Key Features ✅ Ultima Wet End WOW Motor – Proven dual-technology platform from Balboa Water Group delivering reliability and efficiency ✅ 67 GPM Maximum Flow – High-volume circulation for thorough filtration and even heat distribution ✅ Ultra-Low 0.6 Amp Draw – Exceptional energy efficiency at 230V for minimal operating cost during 24/7 duty ✅ Carbon Ceramic Seals with Viton® Elastomers – Superior chemical and heat resistance for long service life ✅ Multi-Directional Volute Mounting – Discharge can be rotated in 90-degree increments (12, 3, 6, or 9 o’clock positions) ✅ Nearly Silent Operation – Vibration-dampening motor specifically engineered for whirlpool applications ✅ Ozone System Compatible – Supports concurrent ozone injection for enhanced sanitization ✅ Auto Shut-Off Protection – Detects blocked suction or dry-run conditions and shuts down to prevent motor damage ✅ High Heat Limit Overload Protection – Thermal safeguard against motor overheating ✅ Compact 48Y Frame – Short-body design fits tight equipment bays where larger pumps will not ✅ 1-1/2″ MBT Connections – Standard male buttress thread ports for broad plumbing compatibility ✅ Venturi Bypass Ports – Built-in ports for use with ozone systems or pump heat jackets ✅ Hygienic Drain Plug – Prevents freeze damage and allows proper drainage during storage ⚙️ Technical Specifications Specification Value Model Number 6154106-S Manufacturer Balboa Water Group Pump Type Circulation Motor Power 1/15 HP Speed Settings Single Speed Motor Speed 1725 RPM Voltage 230V Frequency 60 Hz Amperage 0.6A Maximum Flow Rate 67 GPM Frame Type 48Y (48-Frame Thru-Bolt) Suction Port 1-1/2″ MBT (Center) Discharge Port 1-1/2″ MBT (Side) Port Thread OD Approx. 2-3/8″ across threads Discharge Position Side Discharge (rotatable in 90° increments) Suction Position Center Suction Volute Mounting Multi-Directional Seal Type Carbon Ceramic with Viton® Elastomers Overall Length Approx. 10.5″ Height Approx. 7.5″ Motor Width Approx. 5.85″ Shipping Weight 15.7 lbs Shipping Dimensions 16″ x 9.5″ x 11.5″ Cord None – Hardwire Installation Required Certifications UL, TUV, cCSAus �� Electrical Requirements Electrical Spec Requirement Supply Voltage 230V Frequency 60 Hz Phase Single Phase Full Load Amps 0.6A Connection Type Hardwire (No Cord Included) ⚠️ IMPORTANT ELECTRICAL SAFETY INFORMATION: Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection as mandated by the NEC. A dedicated circuit is required — do not share the circuit with other appliances. This pump does not include a power cord. It must be hardwired to your spa control system or to an appropriately rated electrical supply by a licensed electrician. This is a 230V pump. If your spa is wired for 115V, you need the Balboa 6154113-S (115V version) instead. Connecting to incorrect voltage will damage the motor and void the warranty. �� Compatibility Guide Frame and Port Configuration Specification This Pump Frame Type 48Y (48-Frame Thru-Bolt) Suction 1-1/2″ MBT – Center Discharge 1-1/2″ MBT – Side Volute Multi-Directional (rotatable every 90°) Union Thread OD Approx. 2-3/8″ across threads Discharge Orientation The discharge port can be rotated in 90-degree increments by loosening the four long bolts at the back of the motor. Available positions are 12, 3, 6, and 9 o’clock — allowing you to match your existing plumbing layout without additional fittings. Connection Type Reference This pump uses Male Buttress Thread (MBT) connections. There are no barbs on the front of the wet end. Union Size Collar Size (Tip to Tip) O-Ring OD 1-1/2″ FBT 2-1/2″ (64mm) 2-5/16″ (59mm) 115V Equivalent If your spa is wired for 115V, the equivalent model is the Balboa 6154113-S (115V / 60Hz / 1.3A). The wet end and hydraulic performance are identical — only the motor voltage and amperage differ. Alternate Part Numbers This pump may also be referenced under the following part numbers: PUUL 48 VIC6154106S 6154106S BB6154106S 10-6154106 301367 PUM22100945 110755 (Maax / Coleman Spas) Replaces / Cross-References 1030056 1030120 1070056 1070125U 34-138-1035 �� Installation Requirements Mounting Requirement Specification Mounting Position Horizontal Base Solid, level, vibration-dampening surface Ventilation Maintain adequate clearance around motor for air cooling Access Allow sufficient clearance for maintenance and union access Plumbing Connection Size Suction 1-1/2″ MBT (Center) Discharge 1-1/2″ MBT (Side) Union Type 1-1/2″ FBT (check with your order — union inclusion may vary) Discharge Rotation To adjust the discharge orientation: Loosen the four long bolts at the back of the motor Rotate the volute/wet end to the desired position (90° increments) Re-tighten all four bolts evenly Installation Notes ⚠️ Before starting the motor, fill the tub with water to the level recommended by the hot tub manufacturer. If not specified, fill to the same level as the top of the pump. Never run the pump dry! ⚠️ The motor includes a built-in automatic reset overload protector. If the timer is still on, the motor will restart automatically once it cools down. ⚠️ This pump requires hardwire installation — no power cord is included. Connect to your spa control system’s circulation pump output or to a properly rated 230V dedicated circuit by a licensed electrician. ⚠️ GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. ⚠️ No modifications, additions, or deletions should be made to the pump without factory approval. ⚠️ Do not relocate the pump without prior approval from the manufacturer. ��️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Inspect around seal area and union connections Inspect union connections Monthly Hand-tighten if needed — do not use tools on union nuts Check motor ventilation Quarterly Ensure motor vents and cooling fan shroud are clear of debris Verify amperage draw Annually Should read approximately 0.6A — significant deviation indicates a problem Inspect mounting bolts Quarterly Tighten if loose to reduce vibration Motor Design Note Balboa updated the motor design on these pumps in March 2022. The current motor is sealed with the cooling fan on the outside of the back, covered with a protective shroud. The electrical connection is now on an external junction box on the side of the motor. Photos may not reflect the current motor style — functionality remains the same. Warning Signs — Consider Pump Replacement If: Unusual noise (grinding, screeching, or humming without starting) Water leaking from the seal area Motor trips breaker repeatedly Reduced water flow through the circulation system Motor running excessively hot Motor failing to start or running intermittently Seal Replacement Detail Specification Seal Type Carbon Ceramic with Viton® Elastomers Replacement Replace at first sign of water leakage from the seal area Seal Replacement Tips (from manufacturer): Lubricate the stationary seal member with clean water only before installation. Push the stationary seal member into the seal plate cavity, seating it firmly and squarely with finger pressure only. Do NOT use a screwdriver or any tool that might damage the ceramic seal member. Clean the impeller hub and wet the shaft with clean water before sliding the rotating seal member on. The impeller threads onto the shaft — hand-tight only. Insert a screwdriver in the rear slot to prevent the shaft from turning while removing or installing the impeller (counter-clockwise to remove). �� Ideal Applications Application Suitability Notes ♨️ Hot Tub Circulation System (230V) ✅ Yes — Primary Use Designed for 24/7 continuous circulation in 230V dedicated circ pump systems ♨️ Spa Filtration Loop ✅ Yes Provides continuous water movement through heating and filter system ♨️ Heat Distribution ✅ Yes Maintains even water temperature throughout the spa ♨️ Chemical Distribution ✅ Yes Keeps sanitizer and treatment chemicals evenly distributed ♨️ Ozone Integration ✅ Yes Compatible with concurrent ozone injection via venturi bypass ports �� Whirlpool Bath (230V) ✅ Yes WOW motor technology was originally developed for the bath market ♨️ Jet Pump Replacement ❌ No This is a circulation pump — it does not power therapy jets ♨️ 115V Spa System ❌ No Requires 230V — use Balboa 6154113-S for 115V systems ❓ Frequently Asked Questions Q: What horsepower is this pump? A: This pump is rated at 1/15 HP, which is standard for dedicated circulation pumps. It is designed for continuous low-power operation to move water through your heating and filtration system, not for powering jets. Q: Will this fit my hot tub? A: This pump has a 48Y frame with 1-1/2″ MBT suction (center) and 1-1/2″ MBT discharge (side). Check your existing circulation pump’s frame type, port sizes, connection type, and voltage. The multi-directional volute can be rotated in 90-degree increments for installation flexibility. Q: What voltage does this pump require? A: 230V / 60Hz. This is a 230V pump — most permanently installed hot tubs in North America use 230V. If your spa is wired for 115V, you need the Balboa 6154113-S instead. Always verify your existing pump’s voltage before ordering. Q: Does this pump come with a power cord? A: No. This pump requires hardwire installation by a licensed electrician. It must be connected to your spa control system’s circulation pump output or directly to a properly rated 230V electrical supply. Q: Does it come with unions? A: Union inclusion may vary. Please verify at the time of order. Standard 1-1/2″ FBT pump unions are compatible and available separately if needed. Q: How quiet is this pump? A: The Balboa circulation pump is engineered for nearly silent operation. The WOW motor features vibration-dampening design specifically developed for whirlpool applications where noise is unacceptable. Under normal conditions, this pump should be virtually inaudible. Q: Can I rotate the discharge direction? A: Yes. The discharge can be rotated in 90-degree increments (12, 3, 6, or 9 o’clock positions) by loosening the four long bolts at the back of the motor, repositioning the volute, and re-tightening. Q: Can I use this pump with an ozone system? A: Yes. This pump supports concurrent ozone injection and includes venturi bypass ports for use with ozone systems or pump heat jackets. Q: What is the difference between this pump and the 6154113-S? A: The only difference is the motor voltage. The 6154106-S runs on 230V (0.6A), while the 6154113-S runs on 115V (1.3A). The wet end, hydraulic performance, and physical dimensions are identical. Q: What does the auto shut-off protection do? A: If the pump suction becomes blocked or the pump runs dry, the built-in protection senses the heat rise and automatically shuts the motor down to prevent permanent damage. Q: How much will this pump cost to run? A: At only 0.6 amps on 230V, this pump draws approximately 138 watts. Running 24/7, that amounts to roughly 3.3 kWh per day — significantly less than running a jet pump for circulation. Q: What size are the ports? A: Both suction and discharge are 1-1/2″ Male Buttress Thread (MBT). The thread outside diameter measures approximately 2-3/8″. There are no barbs on the wet end. Q: What warranty is included? A: Manufacturer warranty covers one year from installation or two years from manufacture date. Contact Parts4Tubs for full warranty terms and conditions. Q: Do I need a GFCI breaker? A: Yes. GFCI (Ground Fault Circuit Interrupter) protection is required by the National Electrical Code (NEC) for all hot tub and spa installations, including 230V circuits. Q: The motor looks different from the photos — is it the right pump? A: Balboa updated the motor design in March 2022. The current version has a sealed motor with an external cooling fan and shroud, plus an external junction box for electrical connections. Pump & motor manufacturers reserve the right to change motors or motor style without notice — functionality remains the same. �� Why Choose the Balboa 6154106-S Circulation Pump ✅ Proven Dual Technology — Ultima wet end WOW motor delivers unmatched reliability in continuous-duty applications ✅ Lowest Operating Cost — 0.6 amps at 230V means minimal electricity consumption for 24/7 operation ✅ Virtually Silent — Vibration-dampening motor design ensures peaceful enjoyment of your spa ✅ Built-In Safety — Auto shut-off and thermal overload protection prevent costly motor burnout ✅ Chemical-Resistant Seals — Viton® elastomers and carbon ceramic construction handle demanding spa chemistry ✅ Flexible Installation — 4-position rotatable discharge and compact 48-frame body fit virtually any equipment bay ✅ Ozone Ready — Venturi bypass ports support ozone injection and accessory integration ✅ Wide OEM Compatibility — Used by Maax, Coleman, and numerous other hot tub manufacturers ✅ Broad Cross-Reference — Replaces multiple legacy part numbers from Vico, Balboa, and OEM sources ✅ Backed by Balboa — Warranty support from the world’s largest spa control system manufacturer �� Why Buy From Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement seals and parts available ✅ Pump unions and accessories in stock ✅ Dedicated customer service team �� Summary The Balboa 6154106-S is a 1/15 HP single-speed circulation pump operating at 230V/60Hz, delivering up to 67 GPM of water flow while drawing just 0.6 amps. Featuring the proven Ultima wet end with WOW motor technology, carbon ceramic Viton® seals, 4-position rotatable discharge, and built-in auto shut-off protection, this pump provides whisper-quiet, energy-efficient 24/7 circulation for 230V hot tub systems. With broad OEM compatibility across Maax, Coleman, and other brands, plus a comprehensive cross-reference to legacy part numbers, the 6154106-S is the reliable replacement choice for your spa’s circulation needs. Order today from Parts4Tubs for fast US shipping and expert support. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Balboa 6154106-S Circulation Spa Pump – 1/15 HP Single Speed 230V
