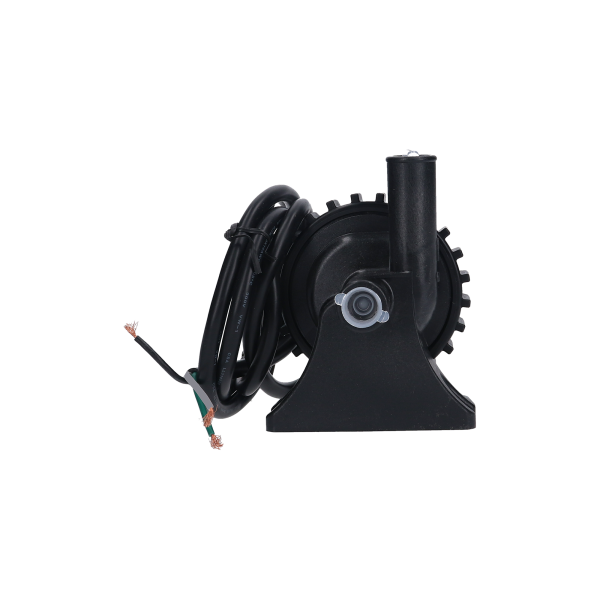

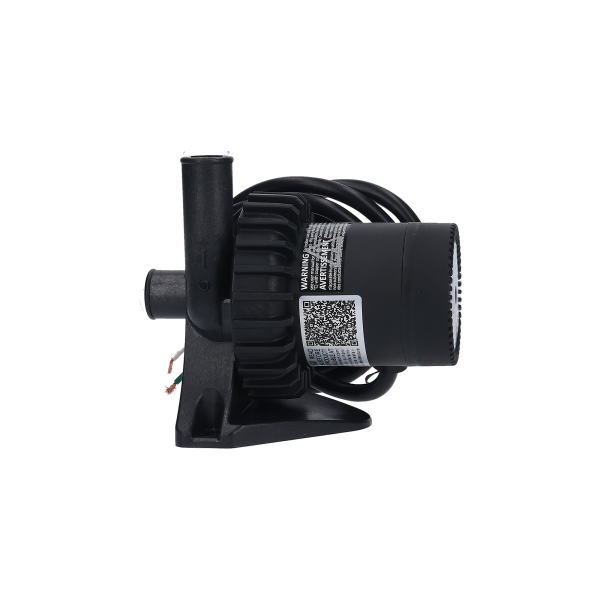

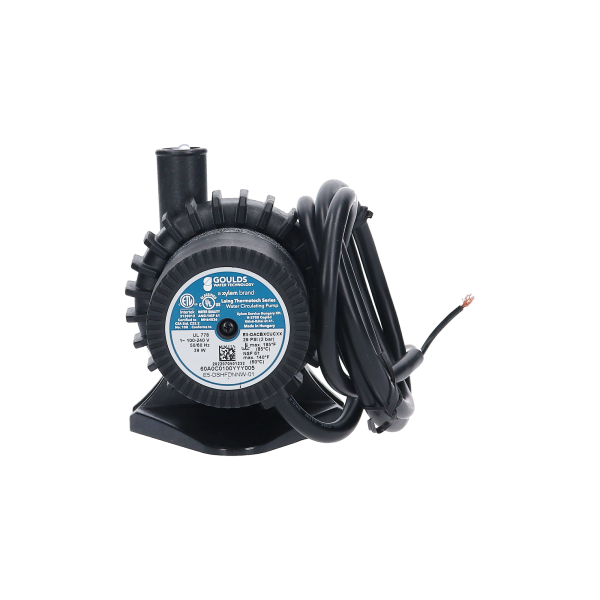

Laing E5 SilentFlo 5000 Spa Circulation Pump — 115/230V Dual Voltage 3/4″ Barb | 74427

$ 97.16

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Laing E5 SilentFlo 5000 Spa Circulation Pump — 115/230V Dual Voltage 3/4″ Barb | 74427 Ultra-low wattage dual-voltage circulation — the OEM replacement for every Hot Spring, Caldera & Tiger River spa �� Product Overview The Laing E5 (74427) is a dual-voltage (115/230V), single-speed circulation pump with 3/4″ barb connections — the smallest and most energy-efficient pump in the Laing E-series family, drawing just 39 watts while circulating up to 6,000 gallons every 24 hours. This pump is the official OEM replacement for the SilentFlo 5000 (72204) and all previous single-speed circulation pumps used in Hot Spring, Caldera, Tiger River, and Limelight spas from 1986 forward — all manufactured by Watkins Manufacturing. What makes the E5 unique among Laing circulation pumps is its true dual-voltage design — it automatically operates on either 115V or 230V at 50 or 60 Hz without any wiring changes or voltage selection. This universal voltage capability means a single pump works in any spa worldwide. The E5 also features the ability to be controlled by a built-in temperature sensor or variable speed control, with options for a PWM controller and plug-in timer for additional energy savings. The E5 uses a magnetically driven impeller with a slow ramp-up soft start to ensure proper priming. Unlike the E10 and E14 models which use ceramic ball bearings, the E5 is water lubricated — meaning it relies on the presence of water for both cooling and lubrication, and must never be operated dry. If dry run occurs, a built-in thermal cut-off automatically shuts the pump down. To reset, simply turn off the spa for 10 seconds and power it back on. The suction inlet is positioned 1-11/16″ from the floor — the same dimension as the original SilentFlo 5000, making this a true drop-in replacement with no plumbing modifications. The compact design allows horizontal or vertical mounting (including on the sidewall of the equipment compartment). Includes a 4-foot power cord and mounting bracket. The newer model no longer includes the external bonding lug — this is by design and does not affect function or safety. Ensure the green ground wire in the cord is connected to a grounding location inside the spa controller. ⚠️ 1″ BARB NOTE: Some older SilentFlo 5000 pumps had 1″ barb connections. The E5 74427 uses 3/4″ barbs. If replacing an older 1″ barb model, you will need barb reducing couplings (1″ barb × 3/4″ barb) and a short section of 3/4″ tubing to adapt the plumbing. See Installation section for details. �� E5 vs. E10: The E5 is a completely different, smaller pump than the E10. The E5 draws only 39 watts (vs E10’s 62-71W), is designed specifically for Watkins/Hot Spring/Caldera/Tiger River spa systems, features dual voltage (vs E10’s single voltage models), and uses water lubrication with thermal cut-off protection (vs E10’s ceramic bearings and microprocessor dry run protection). If your spa uses an E10-style pump, do not substitute an E5 without verifying compatibility. ⭐ Key Features ✅ Dual Voltage — 115V / 230V — Automatically operates on either voltage — no wiring changes needed ✅ Ultra-Low 39 Watts — Smallest power draw in the Laing E-series — pennies per day to operate ✅ OEM for Hot Spring / Caldera / Tiger River — Genuine Watkins Manufacturing replacement ✅ Replaces SilentFlo 5000 — Drop-in replacement for 72204 and all previous circ pumps (1986–2009 ) ✅ 3/4″ Barb Connections — Standard circulation plumbing for Watkins spa systems ✅ Magnetic Drive with Slow Ramp-Up — Soft start ensures proper priming before full speed ✅ Variable Speed Compatible — Can be controlled by built-in temperature sensor or PWM controller ✅ Water Lubricated — Maintenance-free lubrication system ✅ Thermal Cut-Off Protection — Auto-shutdown if overheating — 10-second reset ✅ Clog-Resistant Open Impeller — Designed for continuous 24/7 operation ✅ Compact & Flexible Mounting — Horizontal, vertical, or sidewall mount ✅ 4′ Power Cord & Mounting Bracket Included — Ready to install ✅ 1-Year Manufacturer’s Warranty — Full warranty coverage �� Technical Specifications Specification Value Manufacturer Laing / Xylem / Goulds Series E5 (SilentFlo) Part Number 74427 Laing Model E5-NCHNNNN3W-10 (current); also E5-NSHNNN3W, E5-NSHNNN1W14 Pump Type Circulation Pump — Single Speed Motor Type Magnetically Driven — Canned Type Voltage 115/230V — Dual Voltage (automatic — operates on either) Frequency 50/60 Hz (universal) Input Power 39 watts (at 115V) Flow Rate 6,000 gallons per 24 hours (continuous daily throughput) Connection Size 3/4″ Barb (intake and discharge) Suction Center suction — inlet positioned 1-11/16″ from floor Discharge Side discharge Impeller Type Open — magnetically driven — clog resistant Lubrication Water lubricated — requires water at all times Seal None — sealless, shaftless design Dry Run Protection Thermal cut-off — auto-shutdown on overheating — 10-second reset Soft Start Magnetic drive slow ramp-up — ensures proper priming Variable Speed Compatible with PWM controller and plug-in timer (optional) Temperature Sensor Built-in temperature sensor capability Maximum Temperature 140°F (60°C) Mounting Horizontal, vertical, or sidewall mount Weight Less than 5 lbs Cord ✅ 4′ (48″) power cord INCLUDED — bare wire connection Mounting Bracket ✅ INCLUDED Bonding Lug ❌ No longer included on newer models (not required) Duty Cycle Continuous — designed for 24/7 operation Warranty 1-year manufacturer’s warranty ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 115V OR 230V (dual voltage — automatic) Frequency 50/60 Hz (universal) Phase Single Phase Input Wattage 39W (at 115V) Cord 4′ (48″) — bare wire — INCLUDED Variable Speed PWM controller compatible (optional accessory) E5 vs. E10 vs. E14 Comparison Specification E5 (THIS PUMP) E10 (115V) E10 (230V) E14 Voltage 115/230V dual 115V only 230V only 230V only Wattage 39W 62W 71W 110W Daily Throughput 6,000 gal/24hr Higher Higher Highest Connections 3/4″ barb 3/4″ or 1″ barb/MPT 3/4″ or 1″ barb/MPT 1-1/2″ MBT Dry Run Protection Thermal cut-off Microprocessor Microprocessor Software Lubrication Water Ceramic bearing Ceramic bearing Ceramic bearing Primary OEM Hot Spring/Caldera/Tiger River Sundance/Jacuzzi/D1 Sundance/Jacuzzi/D1 Master Spas/LA Spas �� The E5 is designed for Watkins-brand spas (Hot Spring, Caldera, Tiger River, Limelight) and uses 20% more flow and nearly half the wattage of the SilentFlo 5000 it replaced. The E10 and E14 serve different spa brands with different plumbing configurations. ⚠️ NO BONDING LUG: The current E5 model no longer includes the external bonding lug found on earlier versions. This does not affect function or safety. Ensure the green ground wire in the cord is connected to a grounding location inside the spa controller. ⚠️ ELECTRICAL SAFETY: All electrical installations must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and local building codes. Hot tubs require GFCI (Ground-Fault Circuit Interrupter) protection. A dedicated circuit is required — do not share with other appliances. �� Compatibility Guide Compatible Spa Brands — Confirmed Brand Compatibility Notes Hot Spring Spas ✅ Confirmed — OEM All models 1986–2009 — replaces SilentFlo 5000 and all previous circ pumps Caldera Spas ✅ Confirmed — OEM All models — Watkins Manufacturing Tiger River Spas ✅ Confirmed — OEM All models — Watkins Manufacturing Limelight Spas ✅ Confirmed — OEM Watkins Manufacturing brand Bullfrog Spas ✅ Confirmed Part number 65-02989 Any spa using SilentFlo 5000 ✅ Universal replacement Drop-in replacement for all SilentFlo models SilentFlo 5000 Replacement History The E5 was introduced in March 2008 as the premier upgrade/replacement for the SilentFlo 5000. It replaces all previous single-speed circulation pumps on Watkins-brand spas: Replaced Model Notes SilentFlo 5000 (72204) The pump the E5 was designed to replace — drop-in fit All previous Hot Spring circ pumps (1986–2009) Complete backward compatibility All previous Tiger River circ pumps Per Pool-Spa-Supplies All previous Caldera circ pumps Per Pool-Spa-Supplies SM-303 series SM303NH-3/4, SM303NHT, SM303NH-75 — all discontinued Plumbing Compatibility Your Existing Connection This Pump Notes 3/4″ barb ✅ Direct fit Standard E5 connection 1″ barb (older SilentFlo 5000) ⚠️ Needs reducers Use barb coupling 1″ × 3/4″ (part 1429-131 × 2) plus short 3/4″ tubing 1-1/2″ MBT ❌ Wrong type/size Use E14 (73348) instead �� Alternate Part Numbers Primary Part Numbers Part Number Notes 74427 Laing/Watkins primary part number (THIS PUMP) E5-NCHNNNN3W-10 Current Laing model number E5-NSHNNN3W Laing model variant E5-NSHNNN3W14 Laing model variant E5-NSHNNN1W14 Laing model variant E5-NSHN1_14 Laing shorthand model 6080U5019 Laing OEM number 6080C5031 Laing OEM variant Watkins Manufacturing OEM (Hot Spring / Caldera / Tiger River) Part Number Notes 74427 Primary Watkins part number 74416 Watkins alternate / earlier revision 74415 Watkins alternate / earlier revision 72204 SilentFlo 5000 — original pump this replaces 72174 Hot Spring cross-reference 34378 Watkins reference 37949 Watkins reference 73491 Watkins reference 73369 Watkins reference 73588 Watkins reference 39586 Watkins reference 301392 Watkins reference 301392E Watkins reference 301392G Watkins reference 301630 Watkins reference LHB08100024 Laing/Watkins catalog reference HydroQuip Cross-References Part Number Notes 10-0102 HydroQuip catalog number 10-0102-K HydroQuip kit format 10-0127 HydroQuip alternate HQ100102 HydroQuip alternate format SM-303 Series Replaced Part Number Notes SM303NH-3/4 3/4″ barb — replaced by E5 SM303NHT Threaded variant — replaced by E5 SM303NH-75 Variant — replaced by E5 SM303ROTOR Rotor assembly reference Industry / Distributor Cross-References Part Number Notes 1-00-0222 Industry reference 1-00-0222A Industry reference 01-00-0222 Industry reference (alternate format) A-05-280-502 Industry reference 34-158-1252 Horizon reference 341581000 Distributor reference 611452 Distributor reference 79003 Distributor reference 60AC0100YYY005 Distributor reference 9026 Laing catalog number 9406 Laing catalog number 900300632 Barcode/reference P2450 Industry reference 1655301-1 Industry reference 1655301-1C Industry reference UPC / Barcode Cross-References Part Number Notes 733886902600 UPC 733886940602 UPC Combined Format Cross-References Part Number Notes LAISM303NH3/4 SM-303-NH, 3/4″ LAISM303NHT SM-303-NHT LTI Cross-References Part Number Notes 7060 LTI reference 70813 LTI reference Brand-Specific Cross-References Part Number Brand Notes 65-02989 Bullfrog Spas OEM reference E5 Silent Flo 5000 Generic Common name ��️ Installation Requirements What’s in the Box Item Included Notes Laing E5 circulation pump ✅ Yes Complete pump assembly 4′ (48″) power cord ✅ Yes Bare wire connection Mounting bracket ✅ Yes For floor or sidewall mounting External bonding lug ❌ No longer included Not required on current model Mounting Requirement Specification Mounting Position Horizontal, vertical, or sidewall — flexible positioning Suction Inlet Height 1-11/16″ from floor — same as SilentFlo 5000 Bracket Can mount to floor or sidewall of equipment compartment Plumbing Connection Size Notes Intake (suction) 3/4″ barb (center suction) Connects to 3/4″ ID vinyl tubing Discharge 3/4″ barb (side discharge) Connects to 3/4″ ID vinyl tubing Tubing 3/4″ ID vinyl tubing Secure with spring clamps or hose clamps If Replacing an Older SilentFlo 5000 with 1″ Barbs Some older SilentFlo 5000 pumps used 1″ barb connections. The E5 74427 uses 3/4″ barbs. To adapt: Barb Reducing Couplings: Purchase 1″ barb × 3/4″ barb couplings (part 1429-131 × 2 qty) Short 3/4″ Tubing: A short section of 3/4″ ID vinyl tubing between the coupling and pump barb Alternative: A short piece of 3/4″ tubing from the hardware store works fine Installation Notes ⚠️ Dual Voltage: This pump operates on either 115V or 230V automatically — no voltage selection needed. Just connect to your spa’s existing wiring. ⚠️ Ground Wire: The newer E5 model does NOT include the external bonding lug. Connect the green ground wire in the cord to a grounding location inside the spa controller. ⚠️ Water Required: The E5 is water lubricated and cooled — it must NOT be operated without water. Ensure the spa is filled before powering on. ⚠️ Soft Start: The magnetic drive slowly ramps up to ensure proper priming. This gradual start is normal and by design. ⚠️ Dry Run Reset: If the pump overheats from running dry, the thermal cut-off will shut it down. To reset, turn off the spa for 10 seconds, then power it back on. ⚠️ Impeller Access: The impeller is accessible by unscrewing the top ring of the pump — no special tools required. ⚠️ GFCI Protection Required: All spa installations require GFCI protection per the NEC. ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for water flow Monthly Verify circulation is active through heater return Inspect barb connections Monthly Check for leaks at spring clamp/hose clamp connections Listen for unusual noise Monthly Should be whisper-quiet Clean impeller As needed Unscrew top ring to access — remove debris Check mounting bracket Quarterly Ensure pump is secure Verify GFCI operation Monthly Press test button to check Warning Signs — Replace Pump If: Pump fails to start after 10-second reset Unusual noise (clicking, grinding, buzzing) No water circulation despite pump running Motor trips breaker or GFCI repeatedly Thermal cut-off activating repeatedly (if spa has water) Pump vibrating excessively or wobbling Visible wear on impeller or internal housing Water Lubrication Note The E5 is water lubricated — unlike the E10/E14 which use ceramic ball bearings. This means the pump must always have water present during operation. If you drain your spa for maintenance, ensure the circulation pump is not energized until the spa is refilled. �� Ideal Applications Application Suitability Notes ♨️ Hot Spring Spas (1986–present) ✅ Yes — OEM Replaces SilentFlo 5000 and all previous circ pumps ♨️ Caldera Spas (all models) ✅ Yes — OEM Watkins Manufacturing ♨️ Tiger River Spas (all models) ✅ Yes — OEM Watkins Manufacturing ♨️ Limelight Spas ✅ Yes — OEM Watkins Manufacturing ♨️ Bullfrog Spas ✅ Yes — Confirmed Part number 65-02989 ♨️ SilentFlo 5000 replacement ✅ Yes — Direct upgrade 20% more flow, nearly half the wattage ♨️ SM-303 series replacement ✅ Yes — Direct upgrade All SM-303 models ♨️ Low-flow heater circulation ✅ Yes — Designed for Draws water through circ filter, pushes through heater ♨️ Sundance / Jacuzzi spas ❌ No — Use E10 E10 series (73989, 6500-460) is the OEM for Sundance/Jacuzzi ♨️ Master Spas / LA Spas ❌ No — Use E14 E14 (73348) is the OEM for Master Spas/LA Spas ♨️ Spas with 1-1/2″ MBT connections ❌ No — Wrong type Use E14 (73348) ❓ Frequently Asked Questions Q: Will this pump work on both 115V and 230V? A: Yes — the E5 is a true dual-voltage pump that automatically operates on either 115V or 230V at 50 or 60 Hz. No wiring changes or voltage selection needed. Q: Does this replace the SilentFlo 5000? A: Yes — the E5 74427 is the official replacement for the SilentFlo 5000 (72204) and all previous single-speed circulation pumps on Hot Spring, Caldera, and Tiger River spas from 1986 forward. It uses 20% more flow and nearly half the wattage. Q: What spas use this pump? A: The E5 74427 is the OEM circulation pump for Hot Spring, Caldera, Tiger River, and Limelight spas — all Watkins Manufacturing brands. It is also used in Bullfrog Spas and other brands. Q: My old SilentFlo 5000 has 1″ barbs — will this fit? A: The E5 uses 3/4″ barbs. Some older SilentFlo 5000 models had 1″ barbs. You will need barb reducing couplings (1″ × 3/4″, part 1429-131 × 2) and a short section of 3/4″ tubing to adapt. Q: Where is the bonding lug? A: The current E5 model no longer includes the external bonding lug. This is by design and does not affect function or safety. Connect the green ground wire to a grounding point inside the spa controller. Q: What is the difference between the E5 and E10? A: They are completely different pumps for different spa brands. The E5 draws 39 watts, is dual voltage, is water lubricated, uses thermal cut-off protection, and is the OEM for Hot Spring/Caldera/Tiger River. The E10 draws 62-71 watts, is single voltage (115V or 230V models), uses ceramic ball bearings, has microprocessor-controlled dry run protection, and is the OEM for Sundance/Jacuzzi/D1. Q: Does this pump have dry run protection? A: Yes — the E5 has a built-in thermal cut-off that automatically shuts the pump down if it overheats from running dry. To reset, power off the spa for 10 seconds and power it back on. Q: Is a cord included? A: Yes — a 4-foot bare wire cord is included along with a mounting bracket. Q: Can I mount this pump on the sidewall? A: Yes — the E5’s compact size and flexible bracket allow horizontal, vertical, or sidewall mounting in the equipment compartment. Q: How quiet is this pump? A: Whisper-quiet — designed for 24/7 continuous operation. Some customers have reported slight balance variations between individual units, but most report virtually silent operation. Q: Can I use variable speed control with this pump? A: Yes — the E5 supports PWM (Pulse Width Modulation) speed control and plug-in timer accessories for additional energy savings. Contact Parts4Tubs for compatible accessories. Q: Do I need a GFCI breaker? A: Yes — GFCI protection is required by the NEC for all hot tub and spa installations. Q: What warranty is included? A: 1-year manufacturer’s warranty. Contact Parts4Tubs for full terms. �� Why Choose the Laing E5 74427 ✅ Official OEM Replacement — Genuine replacement for Hot Spring, Caldera, Tiger River, Limelight spas ✅ Replaces SilentFlo 5000 — Drop-in fit for 72204 and all previous circ pumps (1986–2009 ) ✅ Dual Voltage (115V / 230V) — Universal — works on any voltage automatically ✅ Ultra-Low 39 Watts — Costs pennies per day — nearly half the wattage of the SilentFlo 5000 ✅ 20% More Flow Than SilentFlo 5000 — Better circulation with less energy ✅ Variable Speed Compatible — PWM controller and timer options for additional savings ✅ Magnetic Drive with Soft Start — Slow ramp-up ensures proper priming ✅ Thermal Cut-Off Protection — Built-in safety against dry run with easy 10-second reset ✅ Compact & Flexible — Mounts horizontally, vertically, or on sidewall ✅ Clog-Resistant Open Impeller — Easy to access and clean via top ring ✅ 4′ Cord & Bracket Included — Ready to install ✅ Proven Reliability — Laing (Xylem/Goulds) — world-renowned circulation pump manufacturer ✅ 1-Year Manufacturer’s Warranty — Full warranty coverage �� Why Buy From Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Barb reducing couplings (1″ × 3/4″) available for older SilentFlo 5000 conversions ✅ Dedicated customer service team ✨ Summary The Laing E5 (74427) is the smallest, most energy-efficient circulation pump in the Laing E-series — a dual-voltage (115/230V) pump with 3/4″ barb connections drawing only 39 watts while circulating up to 6,000 gallons per 24 hours. The official OEM replacement for the SilentFlo 5000 (72204) and all previous single-speed circulation pumps used in Hot Spring, Caldera, Tiger River, and Limelight spas from 1986 forward. Features a magnetically driven open impeller with slow ramp-up soft start, water-lubricated operation, built-in thermal cut-off dry run protection with 10-second reset, and variable speed / PWM controller compatibility. Drop-in replacement with suction inlet at 1-11/16″ from floor (same as SilentFlo 5000). Compact design with horizontal, vertical, or sidewall mounting. Newer model no longer includes bonding lug (not required — connect green ground wire inside controller). Uses 20% more flow and nearly half the wattage of the SilentFlo 5000 it replaces. Also compatible with Bullfrog Spas (65-02989). Includes 4′ bare wire cord and mounting bracket. For older SilentFlo 5000 models with 1″ barbs, order barb reducing couplings (1429-131 × 2). 1-year manufacturer’s warranty. Available now at Parts4Tubs.
