Heater Element PA-25-4036-BI

$ 24.56

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

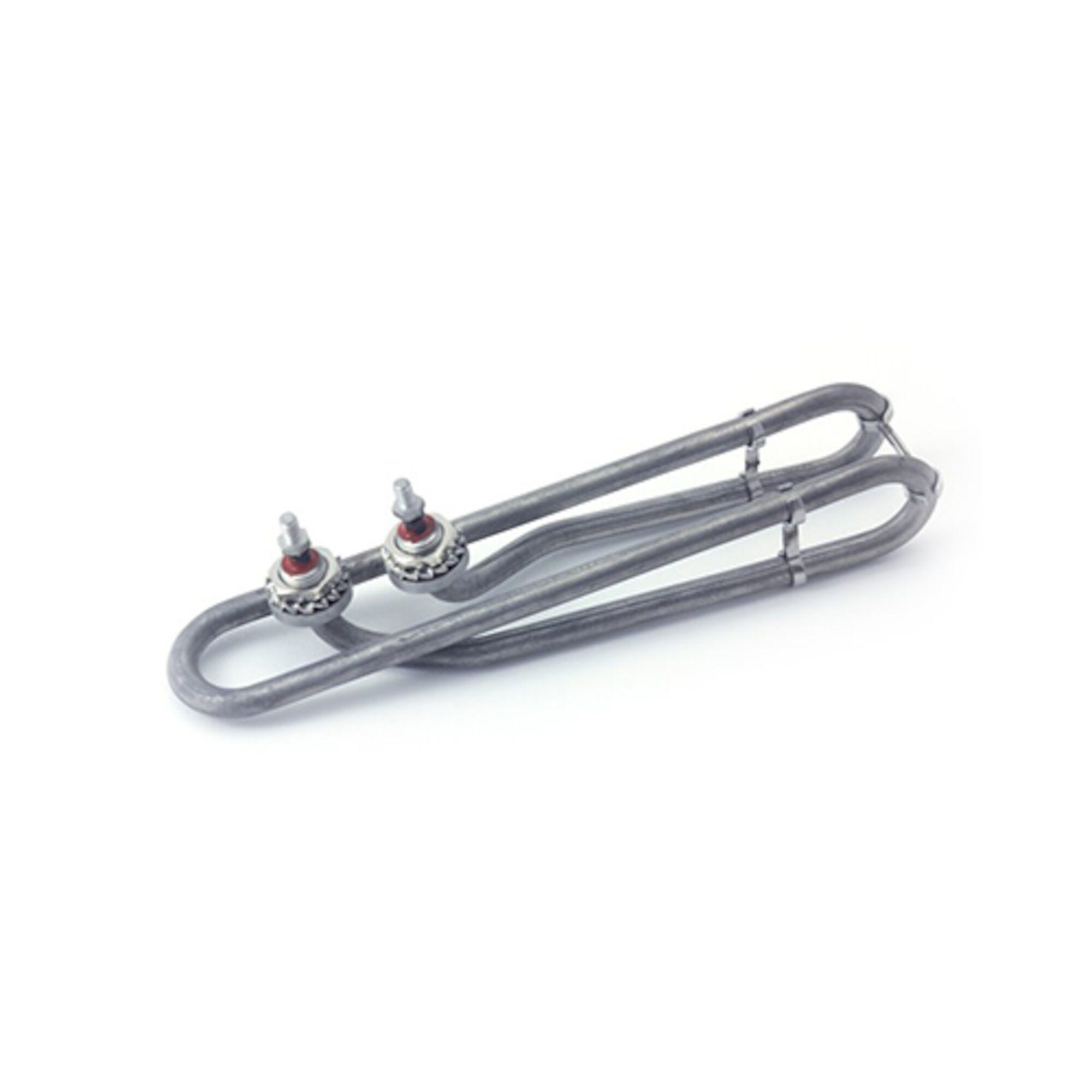

ProAqua Heater Element PA-25-4036-BI Product Overview As a retailer of hot tub spare parts, I’m offering this high-quality 3.0kW Flo-Thru heating element, engineered specifically for 15″ stainless steel manifolds. This element comes complete with o-ring gaskets and mounting hardware for a complete installation solution. Key Features Incoloy construction for superior corrosion resistance Flo-Thru design for maximum heating efficiency Double bend configuration for optimal heat distribution M7 thread specification 10″ immersion length with swoop design Complete with o-ring gaskets and hardware Universal compatibility with major manifold brands Technical Specifications Specification Detail Model Number PA-25-4036-BI Material Incoloy Voltage 240V Wattage 3.0kW Immersion Length 10 inches Bend Type Double Bend Thread Type M7 Design Flo-Thru with Swoop Application 15″ Stainless Steel Manifolds Included Components O-ring gaskets, Mounting hardware Compatibility Guide This heating element is engineered for use with 15″ stainless steel manifolds from various manufacturers, including but not limited to: Balboa HydroQuip Gecko Custom spa manufacturers Cross Reference Guide Compatible replacement for these part numbers: 25-4036-BI (Therm) SI-25-4036BI (Kawai) 12-0104-SPA10 12-0104-K (HydroQuip) 47-555-2077 TEB90015K-3 AC-4036 2-05-0086 Engineering Features Incoloy construction provides exceptional resistance to high temperatures and chemical exposure Flo-Thru design maximizes water contact for efficient heat transfer Double bend configuration ensures even heat distribution Optimized water flow characteristics reduce scale buildup Precision-engineered for reliable performance Installation Benefits The included o-ring gaskets and hardware ensure a proper seal and secure mounting, while the Flo-Thru design promotes optimal water circulation around the element for maximum heating efficiency and extended service life.

Heater Element PA-25-4036-BI
