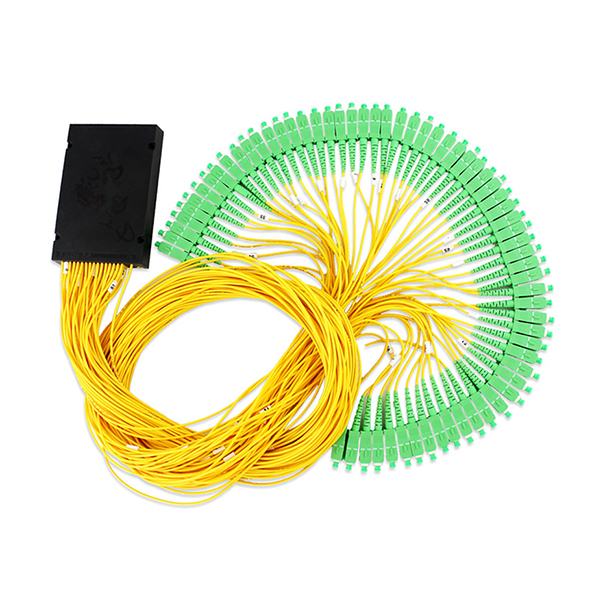

164 PLC Splitter 140115*18mm Plastic Box Package 2.0mm 1.5m G.657A1 Fiber

$ 21.20

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network. The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from central office to customer premises in FTTx and FTTH networks. PLC Splitter offers a cost effective and space saving networking solution in optical transmission system. Plastic Box PLC Splitters packaged in a ABS box is with standard 2.0mm or 3.0mm fiber cable. Plastic Box PLC Splitters as passive optical splitters are widely used for FTTH Passive Optical Network, including EPON (as EPON Splitter) and GPON (as GPON Splitter) . Features: Uniform power splitting Compact package dimension Low polarization dependent loss Good channel-to-channel uniformity Low Insertion Loss and high Return Loss Environmentally and mechanically stable Wide operating wavelength range from 1260nm to 1650nm Applications: Telecommunication networks PON (Passive Optical Network) FTTX, FTTH (Fiber to the Home) Standards: Telcordia GR-1209 and GR-1221 Specifications: Note: All measurements are done at room temperature without connectors. Port Configuration 1×64 Operating Wavelength (nm) 1260~1650 Insertion Loss (dB) Typ. 19.5 Max. 21.0 Loss Uniformity (dB) Typ. 1.5 Max. 2.5 Return Loss (dB) 55 PDL (dB) Typ. 0.2 Max. 0.4 Directivity (dB) 55 Fiber Type SM G.657A1 Wavelength Dependent Loss (dB) Typ. 0.3 Max. 0.5 Temperature Stability (-40~ 85°C) (dB) Typ. 0.4 Max. 0.5 Operating Temperature (°C) -40~ 85°C Storage Temperature (°C) -40~ 85°C Note: All measurements are done at room temperature with connectors. Port Configuration 1×64 Operating Wavelength (nm) 1260~1650 Insertion Loss (dB) Typ. 20.0 Max. 21.5 Loss Uniformity (dB) Typ. 1.5 Max. 2.5 Return Loss (dB) 55 PDL (dB) Typ. 0.2 Max. 0.4 Directivity (dB) 55 Fiber Type SM G.657A1 Wavelength Dependent Loss (dB) Typ. 0.3 Max. 0.5 Temperature Stability (-40~ 85°C) (dB) Typ. 0.4 Max. 0.5 Operating Temperature (°C) -40~ 85°C Storage Temperature (°C) -40~ 85°C

1*64 PLC Splitter 140*115*18mm Plastic Box Package 2.0mm 1.5m G.657A1 Fiber
