LX WE14 Circulation Pump 10-WE14-240 — 1/4 HP 1-Speed 230V — Laing E14 Replacement

$ 95.92

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

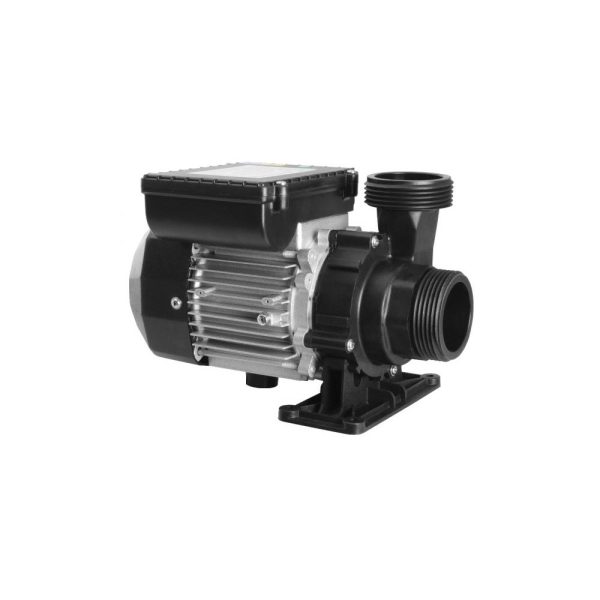

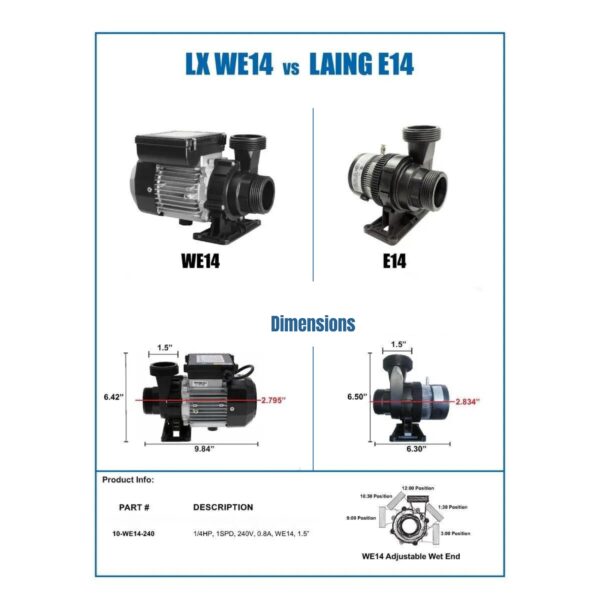

�� LX WE14 Circulation Pump 10-WE14-240 — 1/4 HP 1-Speed 230V — Laing E14 Replacement Whisper-quiet 24/7 spa circulation — drop-in replacement for the Laing E14 with enhanced seal longevity ♨️ Product Overview The LX WE14 (Part No. 10-WE14-240) is a 1/4 HP, single-speed, 230V circulation pump manufactured by Lingxiao (LX Pumps), designed specifically as a replacement for the widely used Laing Thermotech E14 spa circulation pump. Engineered for continuous 24/7 operation, the WE14 delivers quiet, reliable water circulation through your hot tub’s filtration and heating system — keeping your spa water clean, warm, and ready to use at all times. The WE14 features hydraulic performance and port dimensions identical to the Laing E series, with 1-1/2″ MBT (Male Buttress Thread) center suction and side discharge connections. Its adjustable wet end rotates to five different discharge positions (9:00, 10:30, 12:00, 1:30, and 3:00) for flexible plumbing alignment. At just 9.84″ long, 6.06″ wide, and 6.42″ tall, the WE14 fits most existing E14 compartments — though the motor housing is slightly larger than the original Laing E14, so always verify available space before ordering. Key improvements over the original Laing E14 include a specially designed mechanical seal that resists crystal residue buildup from spa disinfection chemicals (chlorine, bromine, salt), increased motor starting torque to prevent seal friction issues at startup, and high-temperature grease bearings for extended life. The squirrel cage asynchronous motor with Class F insulation, IP55 protection rating, and automatic thermal overload protection ensures safe, reliable operation in demanding spa environments. Used as OEM equipment in Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and many more. ✨ Key Features ✅ 1/4 HP Single Speed — Engineered for continuous 24/7 spa water circulation ✅ 230V / 60Hz — Standard US 230V spa circuit compatible ✅ Direct Laing E14 Replacement — Identical port dimensions and hydraulic performance to the Laing E series ✅ Whisper-Quiet Operation — Less than 50 dB — designed for noise-sensitive spa environments ✅ 5-Position Adjustable Wet End — Rotates to 9:00, 10:30, 12:00, 1:30, and 3:00 for flexible plumbing alignment ✅ Enhanced Mechanical Seal — Special material resists crystal residue from chlorine, bromine, and salt disinfection — designed for 5-year service life ✅ Increased Motor Starting Torque — Prevents mechanical seal friction problems at startup ✅ Automatic Thermal Overload Protection — Protects motor from overheating damage ✅ IP55 Protection Rating — Dust protected and water jet resistant ✅ Class F Insulation — Rated for high-temperature motor environments (up to 155°C / 311°F winding temperature) ✅ High-Temperature Grease Bearings — Extended bearing life in hot tub environments ✅ OEM Equipment — Used by Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and others �� Technical Specifications Specification Value Part Number 10-WE14-240 Alternate Part Numbers 10WE14240, WE14, WE14-240, WE14-230, 15-973-2014, 34-343-1090, HQ10WE14240 Manufacturer LX Pumps / Lingxiao (Powerful Water Technology Limited) Pump Model WE14 Pump Type Circulation Pump Motor Power 1/4 HP (0.25 HP) Speed Settings 1-Speed (Single) RPM 3,450 (60Hz US market) Voltage 230V (220–240V) Frequency 60 Hz Amperage See the amperage note below Motor Type Squirrel cage asynchronous Frame Type 48Y Suction Port Size 1-1/2″ MBT (Male Buttress Thread) Discharge Port Size 1-1/2″ MBT (Male Buttress Thread) Suction Location Center (front face) Discharge Location Side — Adjustable to 5 positions Thread Outer Diameter Approximately 2-7/16″ (62mm) Flow Rate (Max) Up to 40 GPM (approximately 153 liters/min) Maximum Working Pressure 0.3 MPa (approximately 43.5 PSI) Dimensions (L × W × H) 9.84″ × 6.06″ × 6.42″ Noise Level Less than 50 dB Insulation Class F (155°C / 311°F) Protection Rating IP55 Thermal Protection Automatic overload — single phase Medium Temperature Range 32°F to 122°F (0°C to 50°C) Environmental Temperature Up to 122°F ( 50°C) Seal Design Mechanical seal — special material to resist disinfection chemical crystal residue Country of Manufacture China (LX / Lingxiao) Warranty 1 Year (Manufacturer) ⚠️ Amperage Note — Important: Amperage ratings from different sources vary for this pump: Electrically, a 230V pump drawing the same wattage as a 120V version should draw approximately half the current. The 120V WE14 (10-WE14-120) is consistently rated at 1.6A across all sources. This suggests the 230V version likely draws approximately 1.0A in actual operation. The 1.6A rating listed by some retailers may reflect the 120V specification being applied to the 230V listing. Always verify the motor nameplate on your specific pump and size your circuit accordingly. ⚠️ Cord and Unions Note: Inclusion of cord and unions varies by distributor. Some distributors include a 48″ AMP-style cord and 1-1/2″ unions; others sell them separately. Confirm with Parts4Tubs at time of order what accessories are included. ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 230V (220–240V) Frequency 60 Hz Phase Single Amperage 1.0A to 1.6A (see note above) Thermal Protection Automatic overload (built-in) Connector Type AMP-style connector (verify cord inclusion) ⚠️ IMPORTANT: All electrical work must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local and state building codes. Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection. A dedicated circuit is required — do not share with other appliances. This is a 230V pump. Do NOT connect to a 115V circuit. If replacing a 115V Laing E14, verify that your spa controller’s circulation pump circuit is wired for 230V before installing this pump. If your spa uses a 115V circulation pump circuit, order the 120V version (10-WE14-120) instead. This pump does NOT include a built-in flow sensor cable. If your original Laing E14 has a flow sensor cable, this pump will not work as an exact replacement without addressing the flow sensor separately. �� Compatibility Guide This Pump: �� Suction: 1-1/2″ MBT — Center (front face) �� Discharge: 1-1/2″ MBT — Side (adjustable to 5 positions) �� Thread OD: ~2-7/16″ (62mm) �� Dimensions: 9.84″ L × 6.06″ W × 6.42″ H Direct Replacement for Laing E14 (230V Models): The LX WE14 is designed with identical port dimensions and hydraulic performance to the Laing E series. The motor housing is slightly larger than the original Laing E14 — always verify available space in your pump compartment. Laing E14 Cross-Reference Part Numbers: Part Number Notes 73348 Laing E14 — Primary cross-reference 73229 Laing E14 variant 73329 Laing E14 variant 37749 Laing E14 cross-reference E14-NSTNNN2W-10 Laing E14 model designation E14-NST2NW-10 Laing E14 model designation E14-NSTNDNN2W-02 Laing E14 model designation E14-NSTNDNN2W-03 Laing E14 model designation E14-NSTNDNN2W-01 Laing E14 model designation E14-NSTN2W-10 Laing E14 model designation 6080U0014 Laing cross-reference 6080U0015 Laing cross-reference 6080U0016 Laing cross-reference 10-0107 Hydro-Quip part number 10-0107-K Hydro-Quip part number 301524 Cross-reference 9338-40 Cross-reference LHB07100142 Laing cross-reference LHB07100027 Laing cross-reference LHB07102983 Laing cross-reference LMB07102983 Laing cross-reference LMB07100028 Laing cross-reference 733886733488 UPC cross-reference 1-00-0214 Cross-reference 34-158-1500 Cross-reference 5EL-64109-1 LA Spas part number Spa Brand-Specific Part Numbers: Part Number Spa Brand X400825 Master Spas X320581 Master Spas (variant) X320582 Master Spas (variant) 73359 LA Spas 5EL-64109-1 LA Spas EL-64109 LA Spas 21-0008-19 Artesian Spas Also Used In: Master Spas (including Twilight series) LA Spas Artesian Spas Clearwater Spas And many other spa brands using the Laing E14 circulation pump ⚠️ Size Warning: The LX WE14 motor housing is slightly larger than the original Laing E14. The wet end is very similar — just the motor section is bigger. Always measure your available pump compartment space and compare against the WE14 dimensions (9.84″ L × 6.06″ W × 6.42″ H) before ordering. ⚠️ Flow Sensor Warning: The LX WE14 does NOT include a flow sensor cable. If your original E14 circulation pump has a flow sensor cable connected to it, this pump will NOT work as a direct plug-in replacement without addressing the flow sensor requirement separately. ��️ Installation Requirements Mounting: Requirement Specification Mounting Position Horizontal — on level surface Discharge Orientation Adjustable to 5 positions: 9:00, 10:30, 12:00, 1:30, and 3:00 Space Required Verify compartment fits 9.84″ L × 6.06″ W × 6.42″ H How to Rotate the Wet End: Remove the foot pad (a small pry bar may be required the first time) Remove the four screws on the front of the pump Rotate the wet end to the desired discharge orientation Reattach the foot pad to the new bottom position of the pump Plumbing: Connection Size Suction (Intake) 1-1/2″ MBT — Center (front face) Discharge 1-1/2″ MBT — Side (adjustable) Thread OD Approximately 2-7/16″ (62mm) Union Type 1-1/2″ standard unions (verify inclusion) Installation Notes: ⚠️ Verify your spa controller’s circulation pump circuit is wired for 230V before installing ⚠️ The motor housing is slightly larger than the original Laing E14 — measure your compartment space ⚠️ This pump does NOT include a flow sensor cable — verify compatibility with your spa control system ⚠️ You may be able to reuse your existing pipe fittings and unions if they are still functional and match the 1-1/2″ MBT thread ⚠️ Ensure proper grounding and bonding per NEC requirements ⚠️ GFCI protection is required by code for all hot tub and spa installations ⚙️ Maintenance Guide Routine Maintenance: Task Frequency Notes Check for leaks Monthly Around seal and union connections Verify pump is running Weekly Continuous circulation pumps should run 24/7 Inspect unions Monthly Hand tighten if needed Clean spa filter Per manufacturer schedule Clogged filter increases pump workload Check for unusual noise Weekly Should be whisper quiet — less than 50 dB Inspect power cord/connector Quarterly Check AMP connector for damage or corrosion Warning Signs — Replace Pump If: Unusual noise (grinding, humming, or rattling) Water leaking from mechanical seal Pump not starting or tripping breaker Reduced water flow or no circulation Motor overheating Pump vibrating excessively Seal Information: The LX WE14 uses a specially designed mechanical seal with material engineered to resist crystal residue buildup from spa disinfection chemicals (chlorine, bromine, salt). The manufacturer rates this seal design for a 5-year service life. Replace the pump or seal at first sign of leakage. �� Ideal Applications Application Suitability Notes ♨️ 24/7 spa water circulation ✅ Yes — Primary application Designed for continuous operation ♨️ Spa filtration loop ✅ Yes Low power (1/4 HP) for energy-efficient continuous filtration ♨️ Laing E14 replacement (230V) ✅ Yes — Direct replacement Identical port dimensions and hydraulic performance ♨️ Master Spa circulation ✅ Yes Verified OEM replacement (X400825) ♨️ LA Spa / Artesian Spa circulation ✅ Yes Verified OEM replacement ♨️ Jet pump replacement ❌ Not suitable 1/4 HP is for circulation only — not powerful enough for jets ♨️ 115V spa system ❌ Wrong voltage Use 10-WE14-120 for 115V systems ❓ Frequently Asked Questions Q: What horsepower is this pump? A: 1/4 HP (0.25 HP). This is a low-power circulation pump designed for continuous 24/7 water circulation — not a jet pump. Q: Is this a direct replacement for the Laing E14? A: Yes, with two important caveats: (1) The motor housing is slightly larger than the original Laing E14, so verify your pump compartment has enough space for the WE14 dimensions (9.84″ × 6.06″ × 6.42″), and (2) this pump does NOT include a flow sensor cable — if your original E14 has one, you’ll need to address the flow sensor separately. Q: What voltage does this pump require? A: 230V (220–240V) / 60Hz. This is NOT a 115V pump. If your spa’s circulation pump circuit runs on 115V, order the 10-WE14-120 instead. All electrical work must be performed by a licensed electrician. Q: Is a cord included? A: Cord and union inclusion varies by distributor packaging. Some include a 48″ AMP-style cord and 1-1/2″ unions; others sell them separately. Confirm with Parts4Tubs at time of order. Q: What size are the ports? A: Both suction (center) and discharge (side) are 1-1/2″ MBT (Male Buttress Thread). The outer thread diameter is approximately 2-7/16″ (62mm). Q: How quiet is this pump? A: Less than 50 dB — whisper-quiet operation. The WE14 is specifically designed for noise-sensitive spa environments where the circulation pump runs continuously. Q: Can I rotate the discharge direction? A: Yes. The wet end is adjustable to 5 positions: 9:00, 10:30, 12:00, 1:30, and 3:00. Remove the foot pad and four front screws, rotate to the desired position, and reattach. Q: What spa brands use this pump? A: The LX WE14 is used as OEM equipment or verified replacement in Master Spas (including Twilight series), LA Spas, Artesian Spas, Clearwater Spas, and many other brands that originally used the Laing E14. Q: How long does the seal last? A: The manufacturer rates the mechanical seal for a 5-year service life. The seal uses special material designed to resist crystal residue buildup from chlorine, bromine, and salt disinfection chemicals. Q: What warranty is included? A: 1-year manufacturer warranty. Contact Parts4Tubs for full warranty terms. Q: Do I need a GFCI breaker? A: Yes. GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa electrical installations. Q: What is the difference between 10-WE14-240 and 10-WE14-120? A: The only difference is voltage. The 10-WE14-240 operates on 230V (for spas with 230V dedicated circuits), while the 10-WE14-120 operates on 115V. The pump, wet end, and plumbing connections are otherwise identical. Never wire a 230V pump to a 115V circuit or vice versa. �� Why Choose the LX WE14 ✅ Direct Laing E14 replacement — Identical port dimensions and hydraulic performance ✅ Whisper-quiet — Less than 50 dB for unobtrusive 24/7 operation ✅ Enhanced 5-year seal design — Special material resists crystal residue from spa chemicals ✅ 5-position adjustable wet end — Flexible discharge orientation for any plumbing configuration ✅ IP55 protection with Class F insulation — Built for demanding spa environments ✅ Automatic thermal overload protection — Prevents motor damage from overheating ✅ Proven OEM compatibility — Used in Master Spas, LA Spas, Artesian Spas, and more ✅ Energy efficient — 1/4 HP uses minimal electricity for continuous 24/7 circulation �� Why Buy from Parts4Tubs ✅ US-based support for American customers ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing in USD ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement parts and accessories available ✅ Dedicated customer service team �� Summary The LX WE14 (10-WE14-240) is a 1/4 HP, single-speed, 230V circulation pump engineered as a direct replacement for the Laing Thermotech E14. With up to 40 GPM flow rate, whisper-quiet operation under 50 dB, a 5-position adjustable wet end, and enhanced mechanical seal technology rated for 5-year service life, the WE14 delivers reliable 24/7 spa water circulation. IP55 protected with Class F insulation and automatic thermal overload protection, it’s proven in Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and more. 1-1/2″ MBT connections at 9.84″ × 6.06″ × 6.42″ — verify your compartment space and order today from Parts4Tubs for fast US shipping. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

LX WE14 Circulation Pump 10-WE14-240 — 1/4 HP 1-Speed 230V — Laing E14 Replacement
