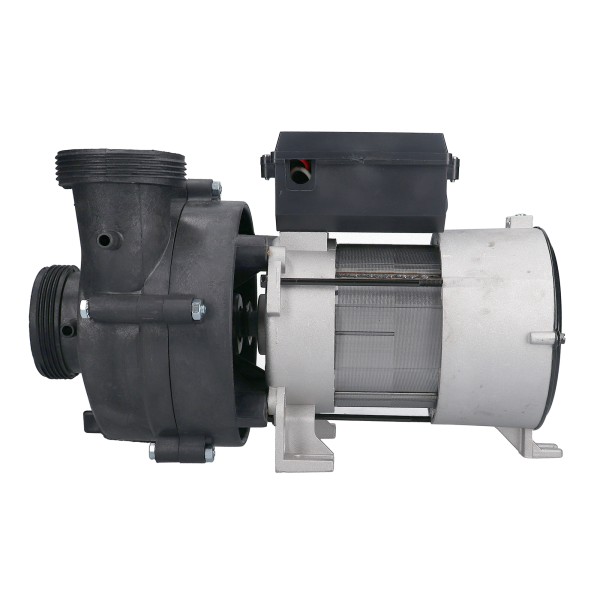

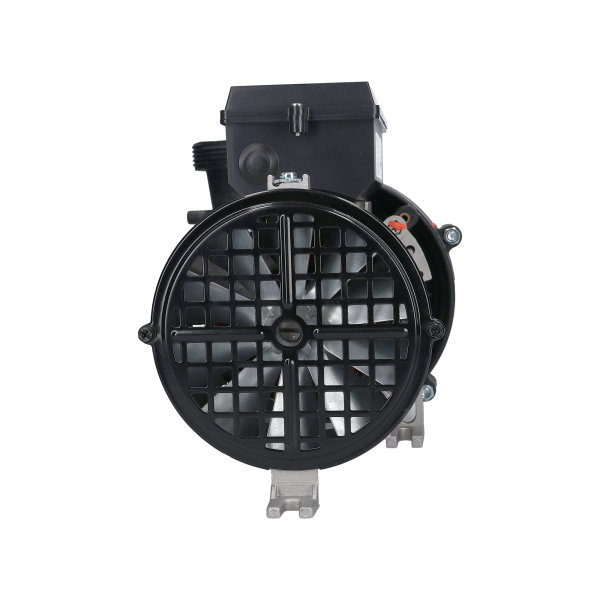

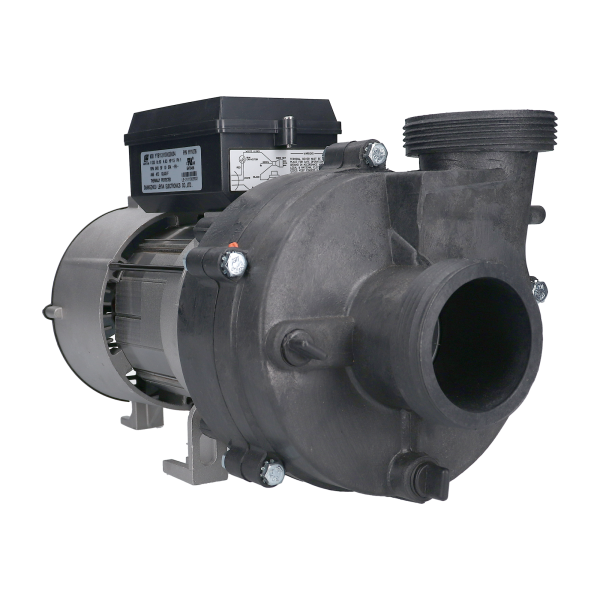

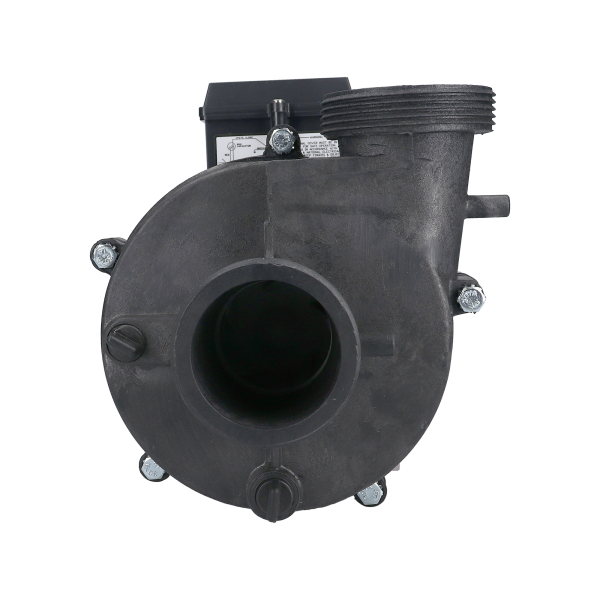

Balboa Ultimax Power WOW Spa Pump 7154213-S — 3.0 HP 1-Speed 230V Compact Jet Pump

$ 90.36

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Balboa Ultimax Power WOW Spa Pump 7154213-S — 3.0 HP 1-Speed 230V Compact Jet Pump Ultra-compact, ultra-quiet — the industry-leading Power WOW delivers big performance from the smallest footprint in spa pumping �� Product Overview The Balboa Ultimax Power WOW (Part No. 7154213-S) is a 3.0 HP rated / 2.0 HP continuous, single-speed, 230V/60Hz compact jet pump from the acclaimed Vico Ultimax product line by Balboa Water Group. The “big brother” of the original WOW bath pump, the Power WOW is engineered to deliver more power without requiring additional space or cooling — making it the industry leader when high water volume needs to move through more jets in a compact equipment bay. This pump features the unique Ultimax wet end paired with a compact 15-frame motor — dramatically smaller than the standard 48-frame and 56-frame spa pumps. Despite its compact size, it draws only approximately 6.0–6.5A at 230V and produces powerful single-speed jet output at 3,450 RPM. The Power WOW is UL and CSA approved and designed to meet the most strict municipal noise requirements with ultra-quiet operation. The self-draining volute prevents water retention for hygienic storage and freeze protection, while the multi-directional discharge can be rotated to 4 positions (12, 3, 6, and 9 o’clock) by loosening the four throughbolts. The 2″ MBT center suction and 2″ MBT side discharge connect to standard 2″ spa plumbing (~3.1″ thread outer diameter). All seals are carbon ceramic with Viton® elastomers for long-lasting performance in harsh spa chemical environments. The 7154213-S replaces numerous discontinued Vico/Balboa Ultimax models including 1056029, 1056037, 1016176, 1056176, and many more. It is used as OEM equipment in Artesian Spas and other major brands. With approximate dimensions of just 13.5″ L × 8.5″ H × 7.35″ W, it fits equipment bays where even a 48-frame pump would be too large. ⭐ Key Features ✅ 3.0 HP Rated / 2.0 HP Continuous — High-output motor in a compact package ✅ Power WOW Compact Design — Ultra-compact 15-frame motor dramatically smaller than standard 48-frame or 56-frame pumps ✅ 230V / 60Hz / 1-Speed — Single-speed operation at 3,450 RPM for powerful jet output ✅ Low Amperage Draw — Only approximately 6.0–6.5A at 230V — efficient on a dedicated circuit ✅ Ultimax Wet End — High-performance wet end with self-draining volute ✅ Ultra-Quiet Operation — Near-silent performance — meets the most strict municipal noise requirements ✅ Multi-Directional Volute — Discharge rotatable to 4 positions (12, 3, 6, 9 o’clock) for flexible plumbing orientation ✅ 2″ MBT In/Out — Center suction and radial side discharge with ~3.1″ (3-1/16″) thread outer diameter ✅ Carbon Ceramic Seal with Viton® Elastomers — Long-lasting performance in prolonged heat and chemical exposure ✅ Self-Draining Volute — Prevents water retention for hygienic storage and freeze protection ✅ UL and CSA Approved — Certified for North American safety standards ✅ Compact Dimensions — Approximately 13.5″ L × 8.5″ H × 7.35″ W — fits where larger pumps can’t ⚙️ Technical Specifications Specification Value Part Number 7154213-S Manufacturer Balboa Water Group / Vico (Ultimax / Power WOW series) Model Designation Ultimax Power WOW Pump Type Jet Pump (1-Speed) Motor Power (Rated) 3.0 HP Motor Power (Continuous) 2.0 HP Speed Settings 1-Speed (Single speed) RPM 3,450 Voltage 230V (220–240V) Frequency 60 Hz Phase Single Amperage Approximately 6.0–6.5A Frame Type 15 (15Y / 15mm) — compact Power WOW frame Suction Port Size 2″ MBT (Male Buttress Thread) Discharge Port Size 2″ MBT (Male Buttress Thread) Thread Outer Diameter Approximately 3.1″ (3-1/16″) Suction Location Center (front face) Discharge Location Radial side — rotatable to 4 positions Seal Type Carbon ceramic with Viton® elastomers Volute Self-draining, multi-directional mounting Dimensions (L × H × W) Approximately 13.5″ × 8.5″ × 7.35″ Certifications UL, CSA Cord Included No — use existing cord or purchase separately Unions Included No — sold separately Warranty 1-year manufacturer warranty ⚠️ Replacement Matching Tip: When replacing an existing pump, always match the amperage draw (approximately 6.0–6.5A at 230V) and plumbing connections rather than relying solely on stated HP. This ensures correct electrical compatibility with your spa pack. �� Electrical Requirements Electrical Spec Requirement Supply Voltage 230V (220–240V) Frequency 60 Hz Phase Single Full Load Amps Approximately 6.0–6.5A Certifications UL, CSA ⚠️ IMPORTANT: All electrical work must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local and state building codes. Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection. A dedicated circuit is required — do not share with other appliances. This is a 230V pump. Do NOT connect to a 115V circuit. Using the wrong voltage will damage the motor and void the warranty. This pump does NOT include a power cord. Use your existing pump cord or purchase a new one separately. For an AMP-style cord, see Part No. 21086. For a molded mini JJ cord, see Part No. 30-0240-48-K. Cord type must match your spa pack’s pump receptacle. �� Compatibility Guide This Pump: �� Frame: 15 (15Y / 15mm) — compact Power WOW frame (NOT standard 48-frame or 56-frame) �� Suction: 2″ MBT — Center (front face) �� Discharge: 2″ MBT — Radial side (rotatable to 4 positions) �� Thread OD: ~3.1″ (3-1/16″) �� Dimensions: ~13.5″ L × 8.5″ H × 7.35″ W Discharge Rotation Positions: Position Clock Reference Up (standard shipping position) 12 o’clock Right 3 o’clock Down 6 o’clock Left 9 o’clock Rotation is done by loosening the four long throughbolts at the back of the motor. Compatible Spa Brands (Verified OEM Use): Artesian® Spas (Part No. 21-0025-81) Other spa brands using Vico/Ultimax Power WOW platform Cross-Reference Part Numbers (Replaces): Part Number Notes 1056029 Vico Ultimax Power WOW (discontinued) 1056037 Vico Ultimax (discontinued) VIC1056037 Vico designation 1016176 Balboa Ultimax (pallet quantity P/N) 1056176 Balboa Ultimax (discontinued, replaced by 7154213-S) 1016029 Balboa/Vico Ultimax 1016037 Ultimax Power WOW 1016042 Balboa Ultimax 1111076 Cross-reference 1111066 Cross-reference 10-7154213 Cross-reference PUUMSC302582R Ultra-Jet cross-reference PUUMS302582PR Ultra-Jet cross-reference PUULSC302582PR Ultra-Jet cross-reference MASX320400 Cross-reference 320400 Cross-reference 5191-120 Cross-reference 34-430-2600 Cross-reference 34-430-4300 Cross-reference 34-138-1024 Cross-reference 15-175-5602 Cross-reference 21-0025-81 Artesian Spas ⚠️ Cord Note: Cord sold separately as needed, or reuse your existing cord/plug type. For an AMP cord, see Part No. 21086. For a molded mini JJ cord, see Part No. 30-0240-48-K. ��️ Installation Requirements Mounting: Requirement Specification Mount Surface Solid, level, rigid, vibration-free Suction Inlet Must be installed below water level Discharge Must be installed below water level Discharge Orientation 4 positions: 12, 3, 6, 9 o’clock (adjustable) Space Required Minimal — compact 13.5″ × 8.5″ × 7.35″ footprint Plumbing: Connection Size Suction (Intake) 2″ MBT — Center (front face) Discharge 2″ MBT — Radial side (rotatable) Thread OD Approximately 3.1″ (3-1/16″) Unions Sold separately — required for connection to spa plumbing Installation Notes: ⚠️ Installation and wiring should only be done by qualified, licensed personnel ⚠️ Pump suction inlet must be below water level at all times ⚠️ NEVER run pump dry — running pump dry damages seals ⚠️ Ensure proper grounding and bonding per NEC requirements ⚠️ GFCI protection is required by code for all hot tub and spa installations ⚠️ Do not add chemicals to spa system directly in front of pump suction — undiluted chemicals may damage pump ⚠️ This pump does not require additional space or cooling beyond its compact footprint �� Maintenance Guide Routine Maintenance: Task Frequency Notes Check for leaks Monthly Around seal area, unions, and throughbolts Inspect unions and connections Monthly Hand tighten if needed Check for unusual noise Weekly Should be ultra quiet in normal operation Clean spa filter Per spa manufacturer schedule Clogged filters increase pump workload Check amperage draw Annually Should match rating (~6.0–6.5A) Inspect motor vents Quarterly Keep clear of debris for cooling Warning Signs — Replace Pump If: Unusual noise (grinding, screeching, or humming) Water leaking from mechanical seal Motor trips breaker repeatedly Reduced water flow or no jet action Motor overheating Excessive vibration Seal Information: Seal Type: Carbon ceramic with Viton® elastomers Designed for prolonged heat and chemical exposure Replace seal at first sign of leakage Note: Vico has used various types of seals over the years; when ordering a replacement seal, verify the correct seal type for your specific installation (PS2136 for older style, PS201 for newer style) �� Ideal Applications Application Suitability Notes ♨️ Compact spa jet pump ✅ Yes — Primary application Ultra-compact design fits the tightest equipment bays ♨️ Multi-jet spa systems ✅ Yes 3.0 HP rated output for high water volume through many jets ♨️ Artesian Spas ✅ Yes Verified OEM use ♨️ Tight equipment bays ✅ Yes 13.5″ × 8.5″ × 7.35″ footprint — smaller than any 48-frame pump ♨️ Replacement for 1056029/1056176 ✅ Yes — Direct replacement Match ~6.0–6.5A at 230V ♨️ 115V spa system ❌ Wrong voltage This is a 230V pump only ♨️ 2-speed requirement ❌ Single speed only If you need 2-speed, see appropriate Ultimax 2-speed models ❓ Frequently Asked Questions Q: What horsepower is this pump? A: This pump is rated at 3.0 HP with a continuous duty output of 2.0 HP. When replacing an existing pump, match the amperage draw (approximately 6.0–6.5A at 230V) to ensure correct electrical compatibility with your spa pack. Q: Will this pump fit my hot tub? A: This pump has a compact 15-frame (15Y) motor — much smaller than standard 48-frame or 56-frame pumps. It features 2″ MBT center suction and 2″ MBT radial side discharge (~3.1″ thread OD). Dimensions are approximately 13.5″ L × 8.5″ H × 7.35″ W. Match the amperage draw and plumbing connections to your existing pump. Q: What is the difference between the Power WOW and standard Ultimax pumps? A: The Power WOW uses a unique compact 15-frame motor that is significantly smaller than the standard 48-frame or 56-frame motors used in other Ultimax pumps. It delivers high performance from a dramatically smaller footprint and does not require additional space or cooling. It is the “big brother” of the original WOW bath pump, designed for spa applications requiring more jets and higher water volume. Q: What voltage does this pump require? A: 230V (220–240V) / 60Hz. All electrical installation must be performed by a licensed electrician. Do NOT connect to a 115V circuit. Q: Does a cord come with this pump? A: No. This pump ships without a power cord. Use your existing pump cord or purchase a new one separately. For an AMP cord, see Part No. 21086. For a molded mini JJ cord, see Part No. 30-0240-48-K. Q: Can I rotate the discharge direction? A: Yes. The discharge can be rotated to 4 positions (12, 3, 6, and 9 o’clock) by loosening the four long throughbolts at the back of the motor. The pump ships with discharge pointing up (12 o’clock). Q: What size are the ports? A: Both suction (center) and discharge (side) are 2″ MBT (Male Buttress Thread). The outer thread diameter is approximately 3.1″ (3-1/16″). This connects to standard 2″ ID spa plumbing. Q: Is this pump UL listed? A: Yes. The Power WOW pump is UL and CSA approved for North American safety standards. Q: Does this pump have a self-draining volute? A: Yes. The self-draining volute ensures no water is retained in the pump body during storage, which prevents freeze damage and maintains hygiene. Q: What warranty is included? A: 1-year manufacturer warranty from Balboa Water Group. Contact Parts4Tubs for full warranty terms. Q: Do I need a GFCI breaker? A: Yes. GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa electrical installations. Q: How do I know if my pump needs replacing? A: Signs include unusual noise (grinding, screeching), water leaking from the mechanical seal, reduced flow or no jet action, the motor tripping the circuit breaker, or the motor overheating. �� Why Choose the Balboa Ultimax Power WOW 7154213-S ✅ 3.0 HP rated / 2.0 HP continuous — High-output motor in an ultra-compact package ✅ Ultra-compact 15-frame design — Dramatically smaller than 48-frame or 56-frame pumps ✅ Low amperage — Only ~6.0–6.5A at 230V — efficient on a dedicated circuit ✅ Ultra-quiet operation — Meets the most strict municipal noise requirements ✅ Self-draining volute — Freeze protection and hygienic storage ✅ No additional space or cooling needed — Same compact design as WOW with more power ✅ UL and CSA approved — Certified North American safety standards ✅ Carbon ceramic / Viton® seal — Long service life in harsh spa chemical environments ✅ Multi-directional discharge — 4-position rotation matches any plumbing configuration ✅ Massive cross-reference — Replaces 20 discontinued Vico/Balboa Ultimax part numbers �� Why Buy from Parts4Tubs ✅ US-based support for American customers ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing in USD ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement cords, unions, and seal parts available ✅ Dedicated customer service team ✨ Summary The Balboa Ultimax Power WOW 7154213-S is a 3.0 HP rated / 2.0 HP continuous, single-speed, 230V/60Hz compact jet pump that delivers big performance from the smallest footprint in spa pumping. Drawing only approximately 6.0–6.5A at 230V, it uses a unique 15-frame (15Y) motor that is dramatically smaller than standard 48- or 56-frame pumps — measuring just 13.5″ × 8.5″ × 7.35″. With an Ultimax wet end, self-draining volute, multi-directional discharge (4 positions), carbon ceramic/Viton® seal, UL and CSA certification, and ultra-quiet operation that meets the strictest noise requirements, the Power WOW is the industry leader for compact spa applications. It replaces 20 discontinued Vico/Balboa part numbers including 1056029, 1056037, 1016176, and 1056176. Verified OEM for Artesian Spas. Cord and unions sold separately. Order today from Parts4Tubs for fast US shipping and expert spa support. Parts4Tubs is proud to be a Balboa Authorized Online Seller - make sure you only buy genuine Balboa parts from trusted sources. **PLEASE READ THIS IS IMPORTANT** When selecting a Balboa Ultimax or Vico Ultimax pump, you must pay careful attention to the wet end. The is the black part on the end of the pump which connects to the plumbing and has the impellor inside. Balboa have made this pump under various OEM agreements, for the likes of CalSpa amongst others who have then included it in their hot tubs. Whereas normally with a pump, you can select the voltage, horsepower and frame size, it is a little more difficult with this brand. There are different types of wet end for this model and the discharge (the part that connects to the pipework that flows to your jets) can be in a different position. Normally, you would choose from either side discharge, or center discharge but "helpfully" (not at all!) Balboa has a different offset for the side discharge on this model. THIS IS NOT STANDARD. If you get this wrong, the part will not fit. Please take a look at the two different examples below. Both of these are for a 2HP pump but you can see they look totally different. You will also notice that the position of the discharge is roughly 1" different. The one on the left is offset around 2.5" and the one on the right is offset around 1.5". This is a standard side discharge wet end for the Balboa Vico and Balboa Vico Ultima pumps. Please note the 5 bolt arrangement. This is a Non-Standard Wet end for the Balboa Vico and Vico Ultima pumps. You can see that the side discharge is much closer to the center, from the center of the inward suction to the centre of the discharge is around 1.5". You can also see that this wet end has 4 bolts to the impeller housing. If you are looking to replace a pump and you need a non-standard wet end, you will need to buy a new pump AND the wet end that you need. Please note, in some cases you will just need to change the Volute (impeller cover) The standard model comes already fitted to the pump whereas the non-standard model will need to be purchased separately, and you will need to change this over. If you are comfortable enough to switch out a pump, changing a wet end over should not be a problem for you. If you are not sure, please do get in touch. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Balboa Ultimax Power WOW Spa Pump 7154213-S — 3.0 HP 1-Speed 230V Compact Jet Pump
