Grundfos 10-0139-KIT Universal Spa Circulation Pump Kit — 3-Speed 115V 3/4″ & 1″ Barb | Complete Plumbing Kit Included

$ 95.56

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

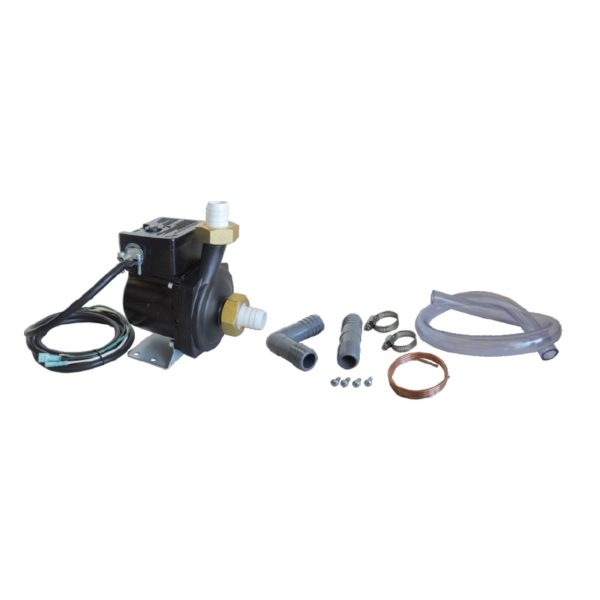

�� Grundfos 10-0139-KIT Universal Spa Circulation Pump Kit — 3-Speed 115V 3/4″ & 1″ Barb | Complete Plumbing Kit Included Whisper-quiet, energy-efficient 3-speed circulation with everything you need for a universal fit in one box �� Product Overview The Grundfos 10-0139-KIT is a universal spa circulation pump kit featuring a 3-speed Grundfos pump operating at 115V/60Hz with a complete plumbing and mounting package included. Distributed by HydroQuip, this kit is designed to replace practically every circulation pump ever used in the low-flow heater environment — including all 3/4″ Laing pumps (E5, E10 series), older Grundfos models, and Sundance/Jacuzzi part number 6000-314. The pump features an adjustable 3-speed motor with a speed selector switch on top of the motor, allowing you to match the specific flow demands of your spa: Low (0.43A / 47W), Medium (0.64A / 73W), or High (0.95A / 110W). The front volute (cover) can be rotated to set the inlet and outlet at any orientation, fitting comfortably into any existing plumbing configuration. Like all Grundfos pumps, this model consumes 40% less energy than larger circulation pumps while remaining compact, lightweight, and whisper-quiet — designed for 24/7 continuous operation. The kit includes a 72″ universal cord, 3/4″ and 1″ barb plumbing adapters, unions with compression nuts, fittings, elbows, 3/4″ vinyl tubing, hose clamps, universal mounting bracket, mounting screws, and 3 feet of copper bonding wire — everything needed for installation. ⭐ Key Features ✅ 3-Speed Adjustable Motor — Low, Medium, and High speed settings via selector switch on top of motor — match flow to your spa’s needs ✅ Ultra-Low Energy Consumption — Draws only 0.43A (47W) on low speed — costs just pennies per day to operate ✅ Universal Replacement — Designed to replace virtually all circulation pumps used in low-flow heater environments ✅ Complete Plumbing Kit Included — 3/4″ and 1″ barb adapters, unions, fittings, elbows, vinyl tubing, hose clamps — everything in one box ✅ 72″ Universal Cord Included — Pre-wired for easy installation ✅ Rotatable Volute — Front cover rotates to set inlet/outlet at any orientation for flexible plumbing ✅ Universal Mounting Bracket Included — With 4 mounting screws and 3 feet of copper bonding wire ✅ Whisper-Quiet Operation — Designed for 24/7 continuous duty without disturbing your relaxation ✅ 40% Less Energy — Consumes 40% less energy than larger circulation pumps ✅ Compact and Lightweight — Space-saving design fits in tight equipment bays ✅ Replaces Laing E5/E10 Series — Direct replacement for all 3/4″ Laing pumps ✅ Replaces Sundance/Jacuzzi 6000-314 — Confirmed compatible cross-reference �� Technical Specifications Specification Value Manufacturer Grundfos (distributed by HydroQuip) Model / SKU 10-0139-KIT Pump Type Circulation Pump — 3-Speed — Universal Kit Voltage 115V Frequency 60 Hz Speed Settings 3-Speed (Low / Medium / High) — manual selector switch Low Speed 0.43A / 47W Medium Speed 0.64A / 73W High Speed 0.95A / 110W Connection Size 3/4″ Barb (kit includes 1″ barb adapters) Discharge Location Center discharge Volute Rotatable — set inlet/outlet at any orientation Cord ✅ 72″ universal cord INCLUDED Unions/Fittings ✅ INCLUDED — compression nuts, fittings, elbows Mounting Bracket ✅ Universal mounting bracket INCLUDED with 4 screws Bonding Wire ✅ 3 feet of copper bonding wire Duty Cycle Continuous — designed for 24/7 operation Warranty 1-year manufacturer’s warranty ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 115V Frequency 60 Hz Phase Single Phase Low Speed Amps 0.43A Medium Speed Amps 0.64A High Speed Amps 0.95A Low Speed Watts 47W Medium Speed Watts 73W High Speed Watts 110W Cord 72″ universal cord — INCLUDED Wiring 3-wire connection (hot, neutral, ground) Speed Selection Guide Speed Amperage Wattage Best For Low 0.43A 47W Maximum energy savings, ozone systems, quiet operation — sufficient for most spas Medium 0.64A 73W Balanced flow and efficiency — recommended starting point High 0.95A 110W Maximum flow — for spas with longer plumbing runs or higher flow requirements �� Tip: Start on Medium speed and adjust as needed. Many spa owners run on Low speed for near-silent operation with more than enough flow for heating and filtration. ⚠️ IMPORTANT ELECTRICAL SAFETY: All electrical installations must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and local building codes. Hot tubs require GFCI (Ground-Fault Circuit Interrupter) protection. A dedicated circuit is required — do not share with other appliances. Ensure proper bonding using the included copper bonding wire per NEC requirements. �� Compatibility Guide Universal Replacement — This Pump Replaces The Grundfos 10-0139-KIT is specifically designed as a universal replacement for virtually all spa circulation pumps used in low-flow heater environments. The included plumbing kit provides adapters for both 3/4″ and 1″ barb connections. Direct Replacement Cross-References Part Number Brand / Description 6000-314 Sundance / Jacuzzi circulation pump E10 73989 Laing E10 circulation pump E10-NSHNDNN1W-02 Laing E10 variant E5-NCHNNNN3W-10 Laing E5 circulation pump 6050U0015 Laing circulation pump 74427 Watkins / Hot Springs / Caldera / Tiger River circulation pump UP15-43SPA Grundfos (older model) 59896291 Grundfos 115V 1″ barb circulation pump 10-0134 Grundfos (older model) 10-0136-K Grundfos (older model) 10-0102-K HydroQuip circulation pump kit Additional Cross-References (from SpaDepot) Part Number Notes 01512-86 Alternate circ pump reference 1039801 Alternate circ pump reference 39586 Alternate circ pump reference 6080U0007 Laing variant 6050U0016 Laing variant 73979 Laing reference 73349 Laing reference 130172 Alternate reference 34-601-1000 Alternate reference 10-0121-K HydroQuip earlier model SM-909 Laing SM series reference 6000-125NA Grundfos / D1 Spas circulation pump 6500-460 / 6500-460NA Sundance / Jacuzzi OEM 6500-035 Sundance / Jacuzzi OEM 6500-125 Sundance / Jacuzzi OEM 6000-125E / 6000-1215 / 6000-125RK Grundfos variants LHB07100139 Alternate catalog number Watkins Silent-Flo 5000 Watkins brand name Compatible Spa Brands Brand Compatibility Notes Sundance Spas ✅ Confirmed Replaces 6000-314, 6500-460, 6500-035, 6500-125 Jacuzzi Spas ✅ Confirmed Customer confirmed on 2012 J-345 Hot Springs ✅ Confirmed Replaces Watkins 74427 Caldera ✅ Confirmed Replaces 74427 Tiger River ✅ Confirmed Replaces 74427 Watkins (all brands) ✅ Confirmed Replaces Silent-Flo 5000, 74427 Dimension One (D1) ✅ Confirmed Replaces 6000-125NA / 6500-080NA Cal Spa ✅ Compatible Any spa using 3/4″ barb circ pump Any spa with low-flow heater ✅ Universal kit Includes 3/4″ and 1″ barb adapters Plumbing Compatibility Your Existing Connection This Kit 3/4″ barb ✅ Direct connection — primary barb size 1″ barb ✅ 1″ barb adapters INCLUDED in kit 1-1/2″ MBT threaded ❌ Not compatible — this pump uses barb connections only 2″ MBT threaded ❌ Not compatible — this pump uses barb connections only ⚠️ Important: This is a barbed connection circulation pump — it connects to 3/4″ or 1″ flexible tubing/hose with barb fittings and hose clamps. It is NOT a threaded MBT-style pump. Verify your existing plumbing connection type before ordering. Grundfos Universal Circ Pump Kit Family Model Voltage Barb Size Kit Type Notes 10-0139-KIT (THIS PUMP) 115V 3/4″ & 1″ Full universal kit Current model 10-0139-K 115V 3/4″ Pump with basic adapters May not include full plumbing kit 10-0138-KIT 230V 3/4″ & 1″ Full universal kit 230V version 10-0138-K 230V 3/4″ Pump with basic adapters 230V version 99575701P1 115V 3/4″ & 1″ Universal kit Newer replacement model ⚠️ Voltage: This is the 115V version. If your spa requires 230V, see the 10-0138-KIT instead. Verify your existing pump’s voltage on its label before ordering. �� Alternate Part Numbers Primary Part Numbers Part Number Notes 10-0139-KIT HydroQuip / Parts4Tubs primary SKU (THIS PUMP — full universal kit) 10-0139-K Grundfos / HydroQuip pump with adapters (may differ from full KIT) Pumps This Kit Replaces — Laing Series Part Number Description E10 73989 Laing E10 circulation pump E10-NSHNDNN1W-02 Laing E10 variant E5-NCHNNNN3W-10 Laing E5 circulation pump 6050U0015 Laing 230V 3/4″ barb 6050U0016 Laing variant 6080U0007 Laing variant 73979 Laing reference 73349 Laing reference SM-909 Laing SM series Pumps This Kit Replaces — Grundfos / HydroQuip Part Number Description UP15-43SPA Grundfos older spa circulation pump 59896291 Grundfos 115V 1″ barb circ pump 10-0134 Grundfos older model 10-0136-K Grundfos older kit 10-0102-K HydroQuip older kit 10-0121-K HydroQuip earlier model 6000-125NA Grundfos for D1 Spas 6000-125E / 6000-1215 / 6000-125RK Grundfos variants LHB07100139 Alternate catalog number Pumps This Kit Replaces — OEM Spa Brand Parts Part Number Brand 6000-314 Sundance / Jacuzzi 6500-460 / 6500-460NA Sundance / Jacuzzi 6500-035 Sundance / Jacuzzi 6500-125 Sundance / Jacuzzi 74427 Watkins / Hot Springs / Caldera / Tiger River 01512-86 Alternate OEM 1039801 Alternate OEM 39586 Alternate OEM 130172 Alternate OEM 34-601-1000 Alternate OEM Watkins Silent-Flo 5000 Watkins branded circulation pump 230V Version (NOT This Pump) Part Number Notes 10-0138-KIT 230V version — full universal kit 10-0138-K 230V version — pump with adapters Newer Replacement Model Part Number Notes 99575701P1 Grundfos universal kit — 115V — 3/4″ & 1″ barb — California Title 20 compliant ��️ Installation Requirements Kit Contents — What’s in the Box Item Quantity Notes Grundfos 3-speed circulation pump 1 With speed selector switch 72″ universal cord 1 Pre-wired — INCLUDED 3/4″ vinyl tubing 3 feet For plumbing connections Hose clamps 1 For securing tubing to barb fittings 3/4″ × 3/4″ barb elbow 1 For plumbing routing 3/4″ × 3/4″ barb coupling 1 For plumbing connections 1″ barb adapters Included For 1″ plumbing applications Unions with compression nuts Included For easy pump installation/removal Universal mounting bracket 1 For flexible mounting positions Mounting screws 4 For securing bracket Copper bonding wire 3 feet For electrical bonding per NEC Mounting Requirement Specification Mounting Universal mounting bracket — included Position Below water level (flooded suction) Base Solid, level surface Orientation Volute rotates to set inlet/outlet at any angle Access Allow clearance for speed selector switch on top of motor Plumbing Connection Size Notes Intake 3/4″ barb (1″ adapters included) Barbed connection to flexible tubing Discharge 3/4″ barb (1″ adapters included) Center discharge — rotatable Installation Notes ⚠️ Wiring: Connect 3 wires — hot, neutral, and ground. Use the included 72″ cord. ⚠️ Bonding: Use the included 3 feet of copper bonding wire for proper electrical bonding per NEC requirements. ⚠️ Flooded Suction Required: Pump must be installed below water level — never run pump dry. ⚠️ Speed Selection: Set the speed selector switch on top of the motor to Low, Medium, or High as needed. Start on Medium and adjust. ⚠️ First Startup: The shaft may rotate slowly when first started until water has fully penetrated the bearings. This is normal. ⚠️ Volute Rotation: The front volute can be rotated to match any inlet/outlet orientation — no need to modify plumbing. ⚠️ Barb Connections Only: This pump uses barbed fittings — NOT threaded MBT unions. Verify your plumbing type before ordering. ⚠️ Bleeder Barb: If converting from a Laing pump, you may need additional conversion fittings depending on your specific plumbing configuration. ⚠️ GFCI Protection Required: All spa installations require GFCI protection per the NEC. ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Inspect barb connections, hose clamps, unions Verify water flow Monthly Ensure pump is circulating water — check for air bubbles Listen for unusual noise Monthly Should be near-silent on all speeds Inspect hose clamps Quarterly Retighten if needed Verify speed setting Quarterly Confirm selector switch is on desired speed Check cord condition Quarterly Inspect for damage or wear Inspect mounting bracket Quarterly Ensure pump is secure Clean intake screen/filter As needed Remove any debris blocking flow Warning Signs — Replace Pump If: Pump fails to start or hums without rotating Unusual noise (grinding, clicking, or buzzing) Water leaking from pump body No water flow despite pump running Motor trips breaker or GFCI repeatedly Significant reduction in circulation flow Motor overheating First Startup Note When first installed or after periods of non-use, the pump shaft may rotate slowly until water has fully penetrated the bearings. Allow the pump time to prime — this is normal Grundfos pump behavior and does not indicate a defect. �� Ideal Applications Application Suitability Notes ♨️ Spa/hot tub 24-hour circulation ✅ Yes — Primary application Designed for continuous 24/7 operation ♨️ Low-flow heater circulation ✅ Yes — Designed for this Replaces virtually all low-flow heater circ pumps ♨️ Laing E5/E10 replacement ✅ Yes — Direct replacement Replaces all 3/4″ Laing models ♨️ Sundance/Jacuzzi circ pump ✅ Yes — Confirmed Replaces 6000-314 and other OEM numbers ♨️ Hot Springs/Caldera/Tiger River ✅ Yes — Confirmed Replaces Watkins 74427 / Silent-Flo 5000 ♨️ Dimension One (D1) circ pump ✅ Yes — Confirmed Replaces 6000-125NA / 6500-080NA ♨️ Ozone system circulation ✅ Yes — Excellent Low speed provides ideal flow for ozone injection ♨️ Spas with 1-1/2″ or 2″ MBT plumbing ❌ No — Wrong connection This pump uses barb connections only ♨️ 230V spa systems ❌ No — Wrong voltage Use 10-0138-KIT (230V version) instead ❓ Frequently Asked Questions Q: Is this a 1-speed or 3-speed pump? A: This is a 3-speed pump with a manual speed selector switch on top of the motor. You can choose Low (0.43A / 47W), Medium (0.64A / 73W), or High (0.95A / 110W). Some listings describe it as “1-speed” but it actually has 3 selectable speeds. Q: Will this replace my Laing E5 or E10 circulation pump? A: Yes — the Grundfos 10-0139-KIT is designed as a universal replacement for all 3/4″ Laing pumps, including the E5 and E10 series. The included plumbing kit has everything needed for the swap. Q: Will this replace Sundance/Jacuzzi part number 6000-314? A: Yes — confirmed by multiple sources. This pump is a direct replacement for the Sundance/Jacuzzi 6000-314 circulation pump. Q: Does this fit Hot Springs, Caldera, or Tiger River spas? A: Yes — this pump replaces Watkins part number 74427 (also known as the Silent-Flo 5000), which is used in Hot Springs, Caldera, and Tiger River spas. Q: Is a cord included? A: Yes — a 72″ universal cord is included in the kit, pre-wired for 3-wire connection (hot, neutral, ground). Q: What plumbing connections does this pump use? A: 3/4″ barb connections (with 1″ barb adapters included in the kit). This pump uses barbed fittings with hose clamps — NOT threaded MBT unions. Verify your existing plumbing type before ordering. Q: What speed should I run the pump on? A: Start on Medium speed and adjust as needed. Many spa owners run on Low speed for near-silent operation — even Low provides sufficient flow for heating and circulation in most spas. Use High speed if your spa has long plumbing runs or higher flow requirements. Q: Is this really quieter than a Laing pump? A: Yes — customer reviews consistently confirm this Grundfos pump is whisper-quiet, with many reporting it as significantly quieter than the Laing E5 and E10 pumps it replaces, especially on Low and Medium speed settings. Q: My pump shaft turns slowly at first — is it broken? A: No — this is normal Grundfos pump behavior. When first started (or after periods of non-use), the shaft may rotate slowly until water has fully penetrated the bearings. Allow the pump time to prime. Q: My existing pump is 230V — can I use this? A: No — this is a 115V pump. If your spa requires 230V, order the 10-0138-KIT (230V version with the same universal kit) instead. Check your existing pump’s voltage label before ordering. Q: What is the flow rate? A: Grundfos rates similar spa circulation pump models in this family at approximately 12-18 GPM depending on speed setting and plumbing conditions. Flow rate for circulation pumps is most accurately rated at 6 feet of head. Q: What is the difference between 10-0139-KIT and 10-0139-K? A: The 10-0139-KIT is the complete universal kit including the pump, 72″ cord, full plumbing kit (unions, fittings, elbows, 3/4″ and 1″ barb adapters, vinyl tubing, hose clamps), universal mounting bracket, mounting screws, and copper bonding wire. The 10-0139-K may include fewer accessories. This listing is the full KIT. Q: Do I need a GFCI breaker? A: Yes — GFCI protection is required by the NEC for all hot tub and spa installations. Q: What warranty is included? A: 1-year manufacturer’s warranty. Contact Parts4Tubs for full warranty terms and support �� Why Choose the Grundfos 10-0139-KIT ✅ 3-Speed Adjustable — Fine-tune flow to your spa’s exact needs — Low, Medium, or High ✅ Ultra-Low Energy — Only 0.43A / 47W on Low speed — costs pennies per day for 24/7 operation ✅ Universal Replacement — Replaces Laing E5, E10, older Grundfos, HydroQuip, and OEM spa brand circ pumps ✅ Complete Kit — Everything included: pump, cord, plumbing, mounting bracket, bonding wire — no extra parts to buy ✅ Whisper-Quiet — Near-silent operation — customers consistently report significant noise reduction vs Laing pumps ✅ 40% Less Energy — Consumes 40% less energy than larger circulation pumps ✅ Rotatable Volute — Inlet/outlet can be set at any angle — fits any plumbing configuration ✅ Designed for 24/7 Operation — Engineered for continuous duty — reliable long-term performance ✅ 3/4″ and 1″ Barb Adapters — Fits both connection sizes out of the box ✅ Proven Customer Satisfaction — Overwhelmingly positive reviews across multiple retailers ✅ Grundfos Engineering — World-renowned pump manufacturer — premium quality and reliability ✅ 1-Year Manufacturer’s Warranty — Full warranty coverage for peace of mind �� Why Buy From Parts4Tubs ✅ US-based support for American customers ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing in USD ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement parts and accessories available ✅ Dedicated customer service team Need Help? Contact our team for compatibility advice. We can help you determine if the 10-0139-KIT (115V) or the 10-0138-KIT (230V) is right for your spa. We also carry the full line of Grundfos circulation pumps, Laing replacement pumps, and spa plumbing accessories. �� Summary The Grundfos 10-0139-KIT is a universal 3-speed spa circulation pump kit operating at 115V/60Hz with an adjustable speed selector: Low (0.43A / 47W), Medium (0.64A / 73W), and High (0.95A / 110W). Designed to replace virtually all low-flow heater circulation pumps including Laing E5/E10, Sundance/Jacuzzi 6000-314, Watkins 74427 (Silent-Flo 5000), older Grundfos models, and many more. Features a rotatable volute for any plumbing orientation and 3/4″ barb connections with 1″ barb adapters included. The complete kit includes a 72″ cord, unions with compression nuts, fittings, elbows, vinyl tubing, hose clamps, universal mounting bracket, 4 mounting screws, and 3 feet of copper bonding wire. Whisper-quiet, compact, lightweight, and consumes 40% less energy than larger circulation pumps — designed for 24/7 continuous operation. 1-year manufacturer’s warranty. Available now at Parts4Tubs. Alternate Part Numbers

Grundfos 10-0139-KIT Universal Spa Circulation Pump Kit — 3-Speed 115V 3/4″ & 1″ Barb | Complete Plumbing Kit Included
