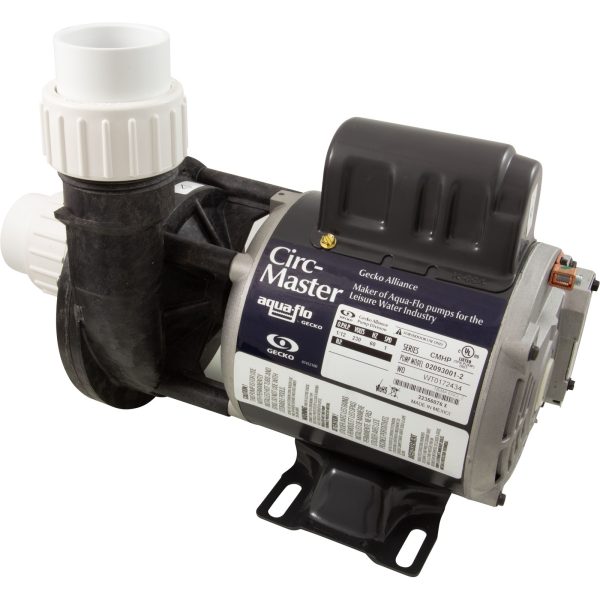

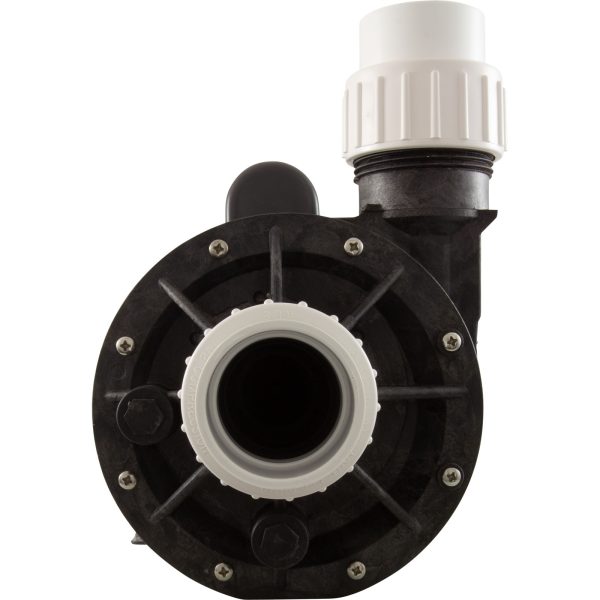

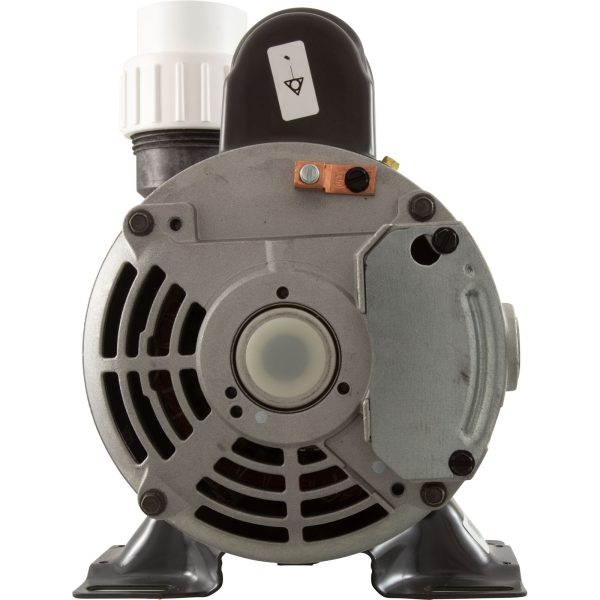

Gecko Aqua-Flo Circ-Master CMHP Spa Circulation Pump (CE Motor) — 1/15 HP 230V | 02093001-2010CE

$ 96.13

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Gecko Aqua-Flo Circ-Master CMHP Spa Circulation Pump (CE Motor) — 1/15 HP 230V | 02093001-2010CE Industry-leading flow rate for 24/7 spa filtration and heating efficiency ♨️ Product Overview The Gecko Aqua-Flo Circ-Master CMHP 02093001-2010CE is the CE motor version of Gecko Alliance’s flagship 1/15 HP, 230V, single-speed spa circulation pump — the pump that delivers the highest GPM of any recirculation pump in the spa industry. Designed exclusively for spas, the Circ-Master CMHP takes 24-hour filtration to a new level with flow rates up to 40 GPM, enabling high-flow heating systems that deliver increased heating efficiency and up to four times the filtration of standard circulation pumps. This is the “CE” motor variant (02093001-2010CE), which uses a CE-certified motor that is a suitable replacement for the original Circ-Master from a performance standpoint. The CE motor is functionally identical to the standard CMHP motor — same 1/15 HP, same 230V, same 0.6 amp draw, same flow rate — but has slightly different physical dimensions. The CE motor (without wet end) measures approximately 9-11/16″ × 8-3/16″ × 8-1/4″ compared to 9-1/8″ × 6-7/16″ × 8-5/16″ for the original, making the CE version approximately 1-3/4″ wider. Verify clearance in your spa equipment compartment before ordering. The CMHP features a 48Y frame motor with front and rear permanently lubricated sealed ball bearings for extended life, and a carbon-graphite self-lubricating mechanical seal designed for continuous 24/7 operation. The side discharge wet end has an adjustable volute with 4 positions (standard position: 12 o’clock) and 1-1/2″ MBT (Male Buttress Thread) suction and discharge connections measuring approximately 2-3/8″ across the threads — standard 1-1/2″ PVC plumbing. Two white 2″ union nuts with 1-1/2″ slip tail pieces and O-rings are included, plus three wing nut drain plugs. The pump runs at 1,425 RPM (50 Hz) or 1,725 RPM (60 Hz), drawing just 0.6 amps at 230V. The Circ-Master CMHP is an OEM pump found in spas from dozens of manufacturers and also serves as a universal replacement for LX circulation pumps, Waterway Iron Might, and Balboa circulation pumps with 1-1/2″ plumbing. ⚠️ CE MOTOR VERSION: This 02093001-2010CE uses a CE-certified motor that is approximately 1-3/4″ wider than the standard 02093001-2010. Same performance, different motor dimensions. Verify clearance before ordering. ⚠️ PUMP CORD NOT INCLUDED. This pump does not include a power cord. Order separately — see AMP style 1-speed pump cord (30-0015) or molded circ pump cord (30-0210-48-K). �� CMHP vs. CMCP: The CMHP has a side discharge wet end. The CMCP (02593001-2010) has a center discharge wet end. Verify your existing pump’s discharge position before ordering. ✨ Key Features ✅ Highest GPM in the Industry — Up to 40 GPM flow rate — more than any other spa recirculation pump ✅ 1/15 HP — 230V — 0.6 Amps — Ultra-low energy consumption for 24/7 continuous operation ✅ CE-Certified Motor — Same performance as standard CMHP with CE compliance ✅ 48Y Frame — Sealed Ball Bearings — Front and rear permanently lubricated for extended motor life ✅ Carbon-Graphite Self-Lubricating Seal — Designed for continuous 24/7 duty operation ✅ Side Discharge — 4-Position Adjustable Volute — Standard 12 o’clock, rotates to match plumbing ✅ 1-1/2″ MBT Suction and Discharge — Standard spa plumbing connections (~2-3/8″ OD threads) ✅ Unions Included — 2x white 2″ union nuts with 1-1/2″ slip tail pieces and O-rings ✅ Three Wing Nut Drain Plugs — For complete winterization and maintenance access ✅ Quick Release Compression Fittings — Easy installation and service ✅ High-Flow Heating Compatible — Operates high-flow heaters for increased heating efficiency ✅ Universal Replacement — Replaces LX, Waterway Iron Might, and Balboa circulation pumps ✅ Massive Cross-Reference — Replaces 60 discontinued and current part numbers �� Technical Specifications Specification Value Manufacturer Gecko Alliance (Aqua-Flo brand) Model Circ-Master CMHP — CE Motor Version Part Number 02093001-2010CE Standard Motor Equivalent 02093001-2010 (same pump, original motor — narrower) Pump Type Spa Circulation Pump — Single Speed — 24/7 Continuous Duty Motor Horsepower 1/15 HP (0.13 HP continuous) Voltage 230V Frequency 50/60 Hz Amperage 0.6A (at 230V) RPM 1,425 (50 Hz) / 1,725 (60 Hz) Motor Frame 48Y Motor Bearings Sealed, permanently lubricated ball bearings — front and rear Speed Single Speed Flow Rate Up to 40 GPM (25–45 GPM range) Port Size (Suction) 1-1/2″ MBT (~2-3/8″ OD across threads) Port Size (Discharge) 1-1/2″ MBT (~2-3/8″ OD across threads) Discharge Position Side discharge — 4-position adjustable volute (standard: 12 o’clock) Suction Position Center Seal Type Carbon-graphite, self-lubricating — PS-200 (5/8″ shaft) Impeller Rated at 0.75 OHP — becomes 1/15 HP at 1,725 RPM Unions ✅ INCLUDED — 2x white 2″ union nuts with 1-1/2″ slip tail pieces and O-rings Drain Plugs ✅ INCLUDED — Three wing nut drain plugs Pump Cord ❌ NOT INCLUDED — Order separately CE Motor Dimensions (motor only) Approximately 9-11/16″ L × 8-3/16″ W × 8-1/4″ H Standard Motor Dimensions (motor only) Approximately 9-1/8″ L × 6-7/16″ W × 8-5/16″ H Overall Dimensions (with wet end) Approximately 12.5″ L × 8.25″ H × 6.83″ W (standard motor) Wet End Position (standard) 12 o’clock (CMHP) Warranty Per Gecko Alliance — contact Parts4Tubs for terms ⚠️ MOTOR DIMENSION NOTE: The CE motor is approximately 1-3/4″ wider than the standard CMHP motor. The overall pump length with wet end may differ slightly. Verify clearance in your spa equipment compartment. ⚠️ OEM pump manufacturers may change motor styles without notice. Pumps may be shipped with or without a run capacitor. Functionality remains the same. ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 230V Frequency 50/60 Hz Phase Single Phase Full Load Amps 0.6A Motor Frame 48Y RPM 1,425 (50 Hz) / 1,725 (60 Hz) Pump Cord ❌ NOT INCLUDED — order separately AMP Cord Option 30-0015 (AMP style 1-speed pump cord) Molded Cord Option 30-0210-48-K (molded circ pump cord) ⚠️ Hot tubs require GFCI (Ground Fault Circuit Interrupter) protection. ⚠️ A dedicated circuit is required — do not share with other appliances. ⚠️ This pump is 230V ONLY. Do not connect to 115V. If you need a 115V version, order 02093000-1010 (standard motor) or 02093000-1010CE (CE motor). �� Compatibility Guide CMHP vs. CMCP — Discharge Position Model Discharge Standard Wet End Position Part Number (230V CE) CMHP (THIS PUMP) Side Discharge 12 o’clock 02093001-2010CE CMCP Center Discharge Centered 02593001-2010 �� Check your existing pump’s discharge position before ordering. The CMHP (side discharge) and CMCP (center discharge) are NOT interchangeable without replumbing. CE Motor vs. Standard Motor Feature CE Motor (02093001-2010CE) Standard Motor (02093001-2010) Performance Identical Identical HP / Voltage / Amps 1/15 HP / 230V / 0.6A 1/15 HP / 230V / 0.6A Flow Rate Up to 40 GPM Up to 40 GPM Wet End Same Same Connections Same — 1-1/2″ MBT Same — 1-1/2″ MBT Motor Width (without wet end) 8-3/16″ 6-7/16″ Motor Length (without wet end) 9-11/16″ 9-1/8″ Motor Height (without wet end) 8-1/4″ 8-5/16″ Key Difference ~1-3/4″ wider Standard width Universal Replacement — This Pump Also Replaces The CMHP is a direct replacement for other 1-1/2″ spa circulation pumps: LX Circulation Pumps — 48WTC series with 1-1/2″ connections Waterway Iron Might — 3410020-1E and variants Balboa Circulation Pumps — 1-1/2″ models Circ-Master CMHP Family Voltage Motor Type Part Number 230V CE Motor (THIS PUMP) 02093001-2010CE 230V Standard Motor 02093001-2010 115V Standard Motor 02093000-1010 230V, Center Discharge Standard Motor (CMCP) 02593001-2010 �� Alternate Part Numbers The CMHP replaces an extensive list of discontinued and current Gecko Aqua-Flo circulation pumps. If your existing pump shows any of these numbers, the 02093001-2010CE is a compatible replacement: Primary and Previous Part Numbers 02093001-2010CE, 02093001-2010, 02093001-2, 02093001-2510, 02093002-2, 02093002-2510, 02093003-2, 02093003-2010, 02093003-2510, 02093004-2, 02093004-2510, 02093006-2, 02093006-2010, 02093007-2 (Hush Pump), 02093007-2000, 02093007-2500, 02093007-3500, 02093012-2, 02093021-2 Additional Gecko Aqua-Flo Cross-References 02093400-2000, 02093400-2010, 02093400-2310, 02093400-2510, 02093448-2010, 02093466-2000, 02093492-2000, 02093492-2010, 02093634-2, 02093634-2010, 02093638, 02093638-2, 02093638-2010, 02093639-2, 02093639-2000, 02093639-2510, 02093645-3, 02093646-2, 02093649-2, 02093656-2, 02093658-2, 02093675-2, 02093677-2, 02093678-2, 02093695-2 (Hush Pump), 02093697-2, 02093759-2, 02093760-2, 02099639-2, 02083639-2 Brand-Specific and OEM Numbers Part Number Brand / Notes 02408492-2 Gecko variant 02408492-2510 Gecko variant 02407002-2 Gecko variant 02407422-2 Gecko variant 02410002-2 Baja Spas 02410388-2 Gecko variant 02410512-2 Theramax II 02420005-2 Dynasty Spas 104440 Maax / Coleman 02593001-2010 CMCP (center discharge version) Industry and Distributor Numbers Part Number Notes 1-00-0204 Allied Innovations 34-402-9142 Horizon Spa & Pool Parts (CE version) AF020930012010 Alternate format CMHP550112 Model designation CMHP-550112 Model designation (alternate format) 6000-907 Pre-July 2020 designation 5127-003 Cross-reference 5200-259 Cross-reference K55MYGRD8367 Motor cross-reference K55MYRLT-2224 Motor cross-reference (CMCP variant) PRC1168 Cross-reference 65-2120 Bullfrog Spas 3410020-1E Waterway Iron Might replacement 10-0110A HydroQuip ��️ Installation Requirements What’s in the Box Item Included Notes Gecko Aqua-Flo CMHP pump with CE motor ✅ Yes 02093001-2010CE — complete pump 2x white 2″ union nuts with 1-1/2″ slip tail pieces and O-rings ✅ Yes Standard quick release compression unions Three wing nut drain plugs ✅ Yes For winterization and maintenance Pump cord ❌ NOT INCLUDED Order 30-0015 (AMP) or 30-0210-48-K (molded) separately Mounting Requirement Specification Mounting Position Horizontal — motor end dry Base Solid, level, vibration-dampening surface Clearance Verify CE motor width (8-3/16″) fits equipment compartment Access Allow space for unions and drain plugs Plumbing Connection Size Notes Suction (center) 1-1/2″ MBT (~2-3/8″ OD threads) Standard 1-1/2″ PVC Discharge (side) 1-1/2″ MBT (~2-3/8″ OD threads) Standard 1-1/2″ PVC Unions Included — 2″ nuts with 1-1/2″ slip tails Quick release compression Volute Adjustment The wet end volute is adjustable to 4 positions. Standard position is 12 o’clock. To rotate, loosen the volute clamp, rotate to desired position, and re-tighten securely. Installation Notes ⚠️ PUMP CORD NOT INCLUDED — order AMP cord (30-0015) or molded cord (30-0210-48-K) separately. ⚠️ 230V ONLY — this pump operates on 230V. Do not connect to 115V. Verify your spa’s voltage before ordering. ⚠️ CE MOTOR WIDER — verify the CE motor (8-3/16″ wide) fits your equipment compartment. If clearance is tight, the standard motor version (02093001-2010) at 6-7/16″ wide may be a better fit. ⚠️ Pump must be installed below water level (flooded suction) — never run pump dry. ⚠️ GFCI protection is required by the NEC for all hot tub and spa installations. ⚠️ Ensure proper grounding and bonding per NEC requirements. ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Around seal, unions, and drain plugs Inspect unions and O-rings Monthly Tighten if needed; replace O-rings if worn Clean strainer/filter As needed Remove debris from suction Check amperage Annually Should read approximately 0.6A at 230V Inspect motor vents Quarterly Keep clear of debris Check mounting and vibration Quarterly Tighten bolts if loose Warning Signs — Replace Pump If: Water leaking from seal area Unusual noise (grinding, screeching, humming) Motor trips breaker or GFCI repeatedly Reduced water flow through heater or filter Motor overheating Seal Replacement The CMHP uses a PS-200 shaft seal (5/8″ shaft, Silicon & Buna). Replace at the first sign of leaking from the seal area. When replacing the seal, also inspect and replace the wear ring (92830062) and face plate O-ring (4-3/4″ ID, 1/8″ thick) as needed. �� Ideal Applications Application Suitability Notes ♨️ 24/7 spa circulation and filtration ✅ Yes — Primary use Highest GPM of any spa recirculation pump ♨️ High-flow spa heater operation ✅ Yes Up to 40 GPM enables efficient heating ♨️ Replacement for existing CMHP (side discharge) ✅ Yes — Direct CE motor is wider — verify clearance ♨️ Replacement for LX circulation pumps (1-1/2″) ✅ Yes — Universal Same connections ♨️ Replacement for Waterway Iron Might (1-1/2″) ✅ Yes — Universal Same connections ♨️ Replacement for Balboa circ pumps (1-1/2″) ✅ Yes — Universal Same connections ♨️ Spas with Gecko/SpaGuts controllers ✅ Yes — OEM Compatible with Gecko control systems ♨️ Baja Spas (02410002-2) ✅ Yes — OEM Direct replacement ♨️ Dynasty Spas (02420005-2) ✅ Yes — OEM Direct replacement ♨️ Maax / Coleman (104440) ✅ Yes — OEM Direct replacement ♨️ Theramax II (02410512-2) ✅ Yes — OEM Direct replacement ♨️ Center discharge application ❌ No — Wrong discharge Use CMCP (02593001-2010) ♨️ 115V application ❌ No — Wrong voltage Use 02093000-1010 (115V) ❓ Frequently Asked Questions Q: What is the difference between 02093001-2010CE and 02093001-2010? A: The CE version uses a CE-certified motor that is approximately 1-3/4″ wider than the standard motor. Performance is identical — same HP, voltage, amperage, flow rate, and wet end. The only difference is the motor’s physical width: 8-3/16″ (CE) vs 6-7/16″ (standard). Verify clearance in your equipment compartment. Q: What is the flow rate? A: Up to 40 GPM — the highest of any spa recirculation pump in the industry. Range is typically 25–45 GPM depending on plumbing resistance. Q: What is the amperage? A: 0.6 amps at 230V — extremely low energy consumption for 24/7 continuous operation. Q: Is a pump cord included? A: No — the pump cord is sold separately. Order 30-0015 (AMP style 1-speed) or 30-0210-48-K (molded circ pump cord). Q: Are unions included? A: Yes — 2 white 2″ union nuts with 1-1/2″ slip tail pieces and O-rings, plus 3 wing nut drain plugs. Q: What is the difference between CMHP and CMCP? A: CMHP = Side Discharge (this pump). CMCP = Center Discharge (02593001-2010). The wet end discharge position is different. Check your existing pump before ordering. Q: Will this replace my Waterway Iron Might? A: Yes — the CMHP is a direct replacement for the Waterway Iron Might (3410020-1E) and other 1-1/2″ circulation pumps. Same connections, same mounting position. Q: Will this replace my LX circulation pump? A: Yes — the CMHP replaces LX 48WTC series circulation pumps with 1-1/2″ connections. Q: What seal does this pump use? A: The PS-200 shaft seal — 5/8″ shaft, Silicon & Buna. Carbon-graphite, self-lubricating, designed for continuous 24/7 operation. Q: Can I adjust the discharge direction? A: Yes — the volute is adjustable to 4 positions. Standard position is 12 o’clock. Loosen the volute clamp, rotate, and re-tighten. Q: Is this pump 115V or 230V? A: 230V only. If you need 115V, order 02093000-1010 (standard motor) or 02093000-1010CE (CE motor). Q: How quiet is this pump? A: Very quiet — the CMHP is designed for 24/7 continuous operation with sealed permanently lubricated ball bearings and a carbon-graphite self-lubricating seal. Many spa owners report near-silent operation. Q: Does this fit in a 50 Hz installation? A: Yes — the motor operates at 50/60 Hz (1,425 RPM at 50 Hz / 1,725 RPM at 60 Hz). Flow rate is lower at 50 Hz. Q: Do I need a GFCI breaker? A: Yes — GFCI protection is required by the NEC for all hot tub and spa installations. �� Why Choose the Gecko Aqua-Flo CMHP Circ-Master ✅ Highest GPM in the Spa Industry — Up to 40 GPM for unmatched filtration and heating efficiency ✅ Ultra-Low Energy — Just 0.6 amps at 230V for 24/7 continuous operation ✅ Gecko Alliance Quality — One of the most trusted names in spa equipment worldwide ✅ CE-Certified Motor — Additional certification for quality assurance ✅ 24/7 Continuous Duty Design — Carbon-graphite self-lubricating seal, sealed ball bearings ✅ 4-Position Adjustable Volute — Flexible side discharge positioning ✅ Unions Included — Quick release compression fittings for easy installation ✅ Universal Replacement — Replaces LX, Waterway Iron Might, Balboa, and 60 part numbers ✅ OEM for Dozens of Spa Brands — Baja, Dynasty, Maax/Coleman, Theramax, and many more ✅ 48Y Frame — Sealed Bearings — Extended motor life with permanently lubricated bearings ✅ High-Flow Heating — Enables efficient operation of high-flow spa heaters ✅ 50/60 Hz Universal — Works worldwide at either frequency �� Why Buy From Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Pump cords (30-0015 AMP, 30-0210-48-K molded) available separately ✅ Replacement seals (PS-200), impellers, wear rings, and O-rings in stock ✅ Dedicated customer service team �� Summary The Gecko Aqua-Flo Circ-Master CMHP 02093001-2010CE is the CE motor version of the spa industry’s highest-flow circulation pump — 1/15 HP, 230V, 50/60 Hz, 0.6 amps, delivering up to 40 GPM for 24/7 filtration and high-flow heating. 48Y frame with sealed permanently lubricated ball bearings and carbon-graphite self-lubricating seal for continuous duty operation. Side discharge with 4-position adjustable volute (12 o’clock standard). 1-1/2″ MBT suction and discharge (~2-3/8″ OD threads). Unions included — 2x white 2″ unions with 1-1/2″ slip tails and O-rings, plus 3 wing nut drain plugs. Pump cord NOT included — order separately. CE motor is approximately 1-3/4″ wider than standard motor (8-3/16″ vs 6-7/16″) — verify clearance. Replaces 60 part numbers including LX, Waterway Iron Might, Balboa, Baja, Dynasty, Maax/Coleman, and Theramax circulation pumps. 1,425/1,725 RPM (50/60 Hz). Available now at Parts4Tubs. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Gecko Aqua-Flo Circ-Master CMHP Spa Circulation Pump (CE Motor) — 1/15 HP 230V | 02093001-2010CE
