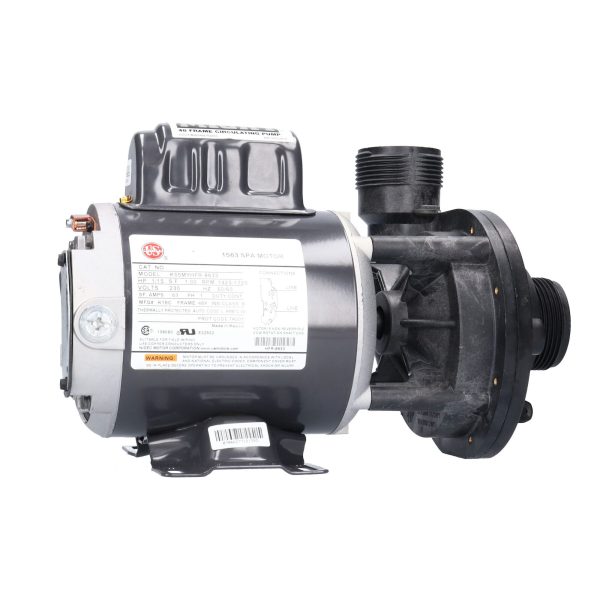

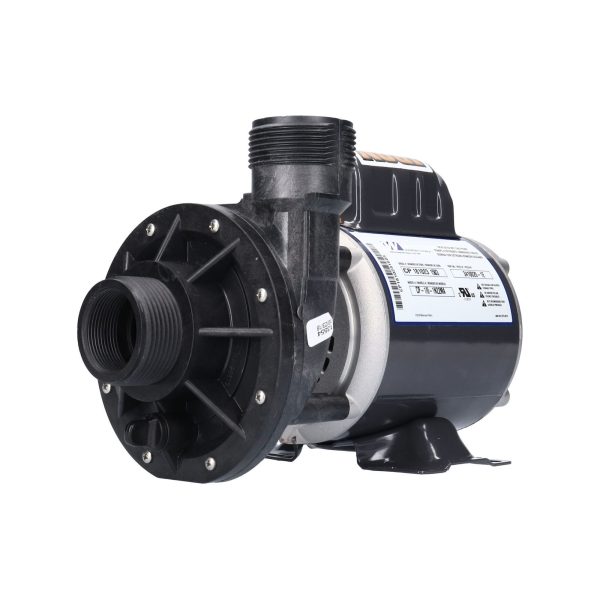

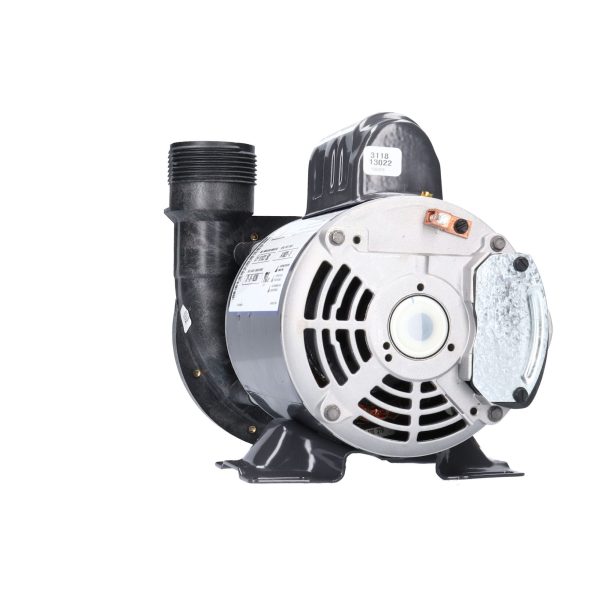

Waterway Iron Might Circulation Pump (3J10020-1E) — 230V 1/15 HP 48-Frame Side Discharge

$ 98.52

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Waterway Iron Might Circulation Pump (3J10020-1E) — 230V 1/15 HP 48-Frame Side Discharge Built tough for 24/7 operation — the industry-standard high-flow spa circulation pump, engineered and manufactured in the USA ♨️ Product Overview The Waterway Iron Might is one of the most trusted and widely used circulation pumps in the hot tub industry. Designed, engineered, and manufactured in Oxnard, California by Waterway Plastics, this 48-frame circulation pump delivers 40 GPM of continuous water flow for 24-hour spa heating and filtration. The 3J10020-1E is the current production model of the 230V Iron Might, replacing the previous 3410020-1E. Unlike smaller circulation pumps such as the Waterway Tiny Might, the Iron Might uses a full 48-frame motor that runs cooler during continuous operation and has a significantly longer service life. The pump is fully serviceable — the Viton shaft seal and motor bearings can be replaced when needed, extending the pump’s operational lifespan for many additional years. The Iron Might features a side discharge wet end with 1-1/2 inch male buttress thread (MBT) connections on both intake and discharge. The discharge can be rotated to point to the 3, 6, or 9 o’clock position to match your equipment layout (ships in the 12 o’clock / upward position). Waterway uses silicon carbide mechanical seals with Viton bellows and 316 stainless steel casings, providing outstanding corrosion resistance against chlorine, bromine, and salt water systems. The pump works with high-flow 15 inch x 2 inch heaters and is compatible with standard 1-1/2 inch union plumbing connections. Cord and unions are sold separately. ✨ Key Features ✅ 24-Hour Continuous Operation — Specifically designed and rated for nonstop circulation in spa and hot tub systems ✅ 40 GPM Flow Rate — High-flow circulation for efficient water heating and filtration through the spa’s heater and filter system ✅ 48-Frame Motor — Runs cooler than smaller frame pumps, providing longer service life and greater reliability during continuous duty ✅ Silicon Carbide Mechanical Seals — Viton bellows with 316 stainless steel casing for superior corrosion resistance against chlorine, bromine, and salt water ✅ Rotatable Side Discharge — Discharge can be repositioned to 3, 6, or 9 o’clock to match your equipment bay layout ✅ Fully Serviceable — Shaft seal and motor bearings can be replaced without buying a new pump, extending total lifespan ✅ 1-1/2 Inch MBT Connections — Standard male buttress thread intake and discharge compatible with Waterway union tailpiece assemblies ✅ 50/60 Hz Compatible — Works with both 50 Hz and 60 Hz electrical systems ✅ Made in the USA — Designed, engineered, and manufactured by Waterway Plastics in Oxnard, California ✅ 1-Year Manufacturer’s Warranty — Limited warranty covering defects in material and workmanship from date of manufacture �� Technical Specifications Specification Detail Current Model Number 3J10020-1E Previous Model Number 3410020-1E Manufacturer Waterway Plastics Pump Type Circulation Pump (High-Flow) Horsepower 1/15 HP Speed Settings Single Speed Voltage 230V Frequency 50/60 Hz Amperage 1.3A RPM 1725 (60 Hz) / 1425 (50 Hz) Flow Rate 40 GPM Frame Size 48Y Discharge Location Side Discharge Size 1-1/2 inch MBT Suction (Intake) Size 1-1/2 inch MBT Thread OD (Actual) 2-3/8 inches outside-to-outside on threads Discharge Rotation Rotatable to 3, 6, or 9 o’clock (ships at 12 o’clock) Seal Type Silicon carbide / Viton bellows / 316SS casing Housing Material Thermoplastic Dimensions (L x W x H) Approximately 12 x 8 x 8-1/2 inches Cord Included No — cord sold separately Unions Included No — unions sold separately Self-Priming No — pump must be installed below water level Made In USA (Oxnard, California) Warranty 1 year limited manufacturer’s warranty ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 230V Frequency 50/60 Hz Amperage 0.8A RPM 1725 (60 Hz) / 1425 (50 Hz) Cord Not included — purchase separately �� Compatibility Guide Connection Specifications Connection Size Details Suction (Intake) 1-1/2 inch MBT Center suction, 2-3/8 inch OD on threads Discharge 1-1/2 inch MBT Side discharge, 2-3/8 inch OD on threads Union Type Waterway male buttress thread Use Waterway tailpiece assemblies (sold separately) Thread Sizing Note: The 1-1/2 inch MBT threads measure 2-3/8 inches outside-to-outside. When measuring your existing pump’s connections, a measurement of approximately 2-3/8 to 2-1/2 inches edge-to-edge on the collar indicates a 1-1/2 inch union size. Iron Might vs. Tiny Might — How to Choose Feature Iron Might (This Pump) Tiny Might Frame 48-Frame Smaller frame Connections 1-1/2 inch MBT 1 inch barb or union Flow Rate 40 GPM 18 GPM Cooling Runs cooler Runs hotter Service Life Longer Shorter Serviceable Yes (seal bearings) Limited Size Larger More compact Best For High-flow heater systems Low-flow/compact systems The Iron Might is a great upgrade for spas currently using a Tiny Might, provided you have sufficient space in your equipment bay and your plumbing can accommodate the larger 1-1/2 inch connections. Pumps This Model Replaces Waterway Iron Might (Previous Models): 3410020-1E 3410020-0E 3410020-1EHZN 3J10070-1E 3J10070-0E CP-1/8-1N22A CP-1/8-1N22MA Aqua-Flo Circ-Master (CMHP) Cross-References: 02093001-2010 02093000-2010 02093695-2 02410512-2 02093002, 02093003, 02093004, 02093006, 02093007 02093400, 02093448, 02093466, 02093492 02093634, 02093638, 02093639, 02093656, 02093658 Other Industry Cross-References: 1-00-0183 / 1-00-0182 / 1-00-0204 5175-012 / 5175-011 34-270-1055 / 34-270-1050 15-350-2256 / 15-350-255 WW34100201E / WWP34100201E 34100201E 48WTC0153C-I 806105066381 (UPC) 1030011, 1030125, 1030057 10-0265-4A3-K, 10-0265-A 104440, 14154 34-402-1140 Also Replaces: Beachcomber Hush Pump Compatible Spa Brands The Iron Might is used across many spa brands including Hydrospa, Costco-brand spas, Southwest Spas, and numerous other brands that use 48-frame circulation pumps with 1-1/2 inch MBT connections. The pump is also commonly used with Aqua-Flo Circ-Master equipped spas. ��️ Installation Requirements Mounting and Location Requirement Specification Mounting Position Must be installed below water level (not self-priming) Base Level surface Drainage Area should have adequate floor drainage Moisture Protection Protect pump from excessive moisture and direct water Access Allow enough space to service both pump and plumbing Shut-Off Valves Install on both inlet and outlet for future maintenance Plumbing Connections Connection Size Type Suction (Intake) 1-1/2 inch Male Buttress Thread (MBT) Discharge 1-1/2 inch Male Buttress Thread (MBT) Recommended Unions Waterway tailpiece assemblies Sold separately Discharge Rotation The discharge can be rotated to point in four directions: 12 o’clock — Up (factory default / as shipped) 3 o’clock — Right 6 o’clock — Down 9 o’clock — Left To rotate: remove the wet end screws, reposition the wet end to the desired orientation, and reinstall the screws. Critical Installation Notes ⚠️ Pump must be installed below water level — this pump is NOT self-priming ⚠️ HAND TIGHTEN UNIONS ONLY — do NOT use a wrench or any adhesives or solvents ⚠️ Do NOT use pipe sealant on union threads — use only Teflon tape or sealing compounds approved for use with plastic. Some pipe sealants not approved for plastic will cause stress cracking ⚠️ Pressure testing should not exceed 40 PSI — ensure all air is removed from the system before pressurizing ⚠️ GFCI protection is required by code for all hot tub and spa installations ⚠️ Ensure proper grounding and bonding per NEC requirements ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Inspect around seal plate and union connections Inspect unions Monthly Hand tighten if needed — never use a wrench Clean filter/impeller As needed Remove debris that may restrict flow Check amperage Annually Should read approximately 0.8A at 230V Inspect motor vents Quarterly Keep clear of debris for proper cooling Check mounting Quarterly Ensure pump is stable on level surface Verify water flow Monthly Confirm adequate circulation through heater Warning Signs — Replace Pump If: Unusual noise (grinding, screeching, or loud humming) Water leaking from the seal plate area Motor trips the circuit breaker repeatedly Reduced or no water flow despite clean filter Motor overheating or shutting off on thermal protector Excessive vibration Serviceable Parts The Iron Might is designed to be serviced rather than discarded. Replacement parts include: Impeller — Waterway part 310-4020 (note: impellers may break during removal if they have been installed for many seasons — consider replacing with seal) Seal Kit — Viton shaft seal (check current Waterway parts catalog for correct part number) Motor Bearings — Can be replaced to extend motor life Wet End Assembly — 310-1000 Troubleshooting Quick Reference Symptom Check Motor won’t start Check voltage at terminals with voltmeter; check fuse/breaker/GFCI; check wiring connections Motor hums but won’t start Verify voltage is within 10% of nameplate; check for jammed impeller Motor overheats Allow to cool and restart; check ventilation; verify amperage matches nameplate Low flow Clean filter and impeller; check for air leaks in suction plumbing; verify unions are tight Leaking at seal Replace shaft seal; check for damage to seal plate Noisy operation Check mounting; inspect bearings; verify impeller is not rubbing �� Ideal Applications Application Suitability Notes ♨️ Spa 24-hour circulation Yes — Primary application Designed specifically for continuous 24/7 spa water circulation ♨️ High-flow heater systems Yes Works with high-flow 15 inch x 2 inch heaters ♨️ Filtration circulation Yes Maintains constant water flow through the spa filter ♨️ Upgrade from Tiny Might Yes Better cooling, longer life, higher flow — if space permits ♨️ Aqua-Flo Circ-Master replacement Yes Direct cross-reference for CMHP models ♨️ Jet pump replacement No This is a circulation pump — NOT a jet pump ❓ Frequently Asked Questions Q: What is the horsepower of this pump? A: The Iron Might is rated at 1/15 HP for continuous duty. Some sources also reference 1/8 HP, which likely reflects a different rating method. When comparing to your existing pump, match the amperage (0.8A at 230V) and flow rate (40 GPM) rather than relying solely on HP. Q: What voltage does this pump require? A: 230V at 50/60 Hz. Verify your existing circulation pump’s voltage before ordering. The 115V Iron Might is a different model (3410030-1E). Using the wrong voltage will damage the motor. Q: Does this pump come with a cord? A: No. The cord is NOT included and must be purchased separately. You may be able to reuse the cord from your existing pump if it is in good condition and rated for the correct voltage and amperage. Q: Does this pump come with unions? A: No. Unions are NOT included and must be purchased separately. Waterway tailpiece assemblies are recommended for best connection. The pump threads are 1-1/2 inch MBT (2-3/8 inch OD). Q: Will this replace my Aqua-Flo Circ-Master pump? A: Yes. The Iron Might is a direct cross-reference for Aqua-Flo CMHP Circ-Master models. Check the compatibility section above for specific Aqua-Flo part numbers. Q: Can I rotate the discharge direction? A: Yes. The discharge ships pointing upward (12 o’clock) and can be rotated to the 3, 6, or 9 o’clock position by removing the wet end screws, repositioning, and reinstalling. Q: Is this pump self-priming? A: No. The Iron Might must be installed below the water level (flooded suction). It cannot pull water up from below. Q: How does this compare to the Waterway Tiny Might? A: The Iron Might has a larger 48-frame motor (vs. smaller frame), delivers 40 GPM (vs. 18 GPM), uses 1-1/2 inch connections (vs. 1 inch), runs cooler, lasts longer, and is fully serviceable. It requires more space and different plumbing connections than the Tiny Might. Q: What model number should I look for? A: The current production model is 3J10020-1E. This replaces the previous model 3410020-1E. Both are the same pump design — the 3J prefix indicates the current production version. In March 2022, Waterway updated the motor with the electrical connection box on the side instead of the back. Q: Can I rebuild this pump instead of replacing it? A: Yes. The Iron Might is designed to be serviceable. You can replace the Viton shaft seal and motor bearings. When replacing the seal, it is recommended to also replace the impeller (Waterway part 310-4020) because impellers often break during removal after extended use. Q: What warranty does this pump have? A: 1 year limited manufacturer’s warranty from date of manufacture, covering defects in material and workmanship. The warranty includes the motor but does NOT cover the motor seal. The warranty does not cover damage from improper installation, bad water chemistry, freezing, or acts of nature. Q: What size unions do I need? A: 1-1/2 inch unions. The thread OD on the pump measures approximately 2-3/8 inches. If measuring your existing pump’s collar and it reads approximately 2-3/8 to 2-1/2 inches edge-to-edge, you need a 1-1/2 inch union. Q: Is this pump made in the USA? A: Yes. The Waterway Iron Might is designed, engineered, and manufactured by Waterway Plastics in Oxnard, California. Q: Do I need a GFCI breaker? A: Yes. GFCI (Ground Fault Circuit Interrupter) protection is required by the National Electrical Code (NEC) for all hot tub and spa electrical installations. Q: What heater types work with this pump? A: The Iron Might works with high-flow 15 inch x 2 inch heaters. It is designed for the high-flow heater environment where adequate water volume through the heater is critical for proper operation and safety. �� Downloads and Resources �� Iron Might Pump Instructions (810-0231.0425) — Current installation manual with parts diagram, plumbing instructions, troubleshooting guide, and warranty information (PDF) �� Why Choose the Waterway Iron Might ✅ Industry-Standard Design — One of the most widely used spa circulation pumps across major hot tub brands ✅ 24/7 Continuous Duty — Purpose-built for nonstop operation, not adapted from an intermittent-duty design ✅ 48-Frame Motor — Runs significantly cooler than smaller frame alternatives, delivering years of reliable service ✅ Premium Seal Technology — Silicon carbide seals with Viton bellows and 316SS casing resist chlorine, bromine, and salt ✅ Fully Serviceable — Replace seals and bearings instead of replacing the entire pump — saves money long-term ✅ Made in the USA — Designed, engineered, and manufactured in Oxnard, California by Waterway Plastics since 1973 �� Why Buy From Parts4Tubs ✅ US-based support for American customers ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement seals, impellers, and parts available ✅ Dedicated customer service team ⭐ Summary The Waterway Iron Might (3J10020-1E) is a proven, industry-standard 48-frame circulation pump delivering 40 GPM of continuous flow for 24/7 spa heating and filtration. Drawing just 0.8 amps at 230V with silicon carbide / Viton / 316SS seals, this pump provides exceptional reliability, corrosion resistance, and energy efficiency. The side discharge rotates to match any equipment layout, and the pump is fully serviceable with replaceable seals and bearings. Compatible with Aqua-Flo Circ-Master models and numerous spa brands. Designed, engineered, and manufactured in the USA by Waterway Plastics. Available now at Parts4Tubs with expert compatibility support.

Waterway Iron Might Circulation Pump (3J10020-1E) — 230V 1/15 HP 48-Frame Side Discharge

Related products

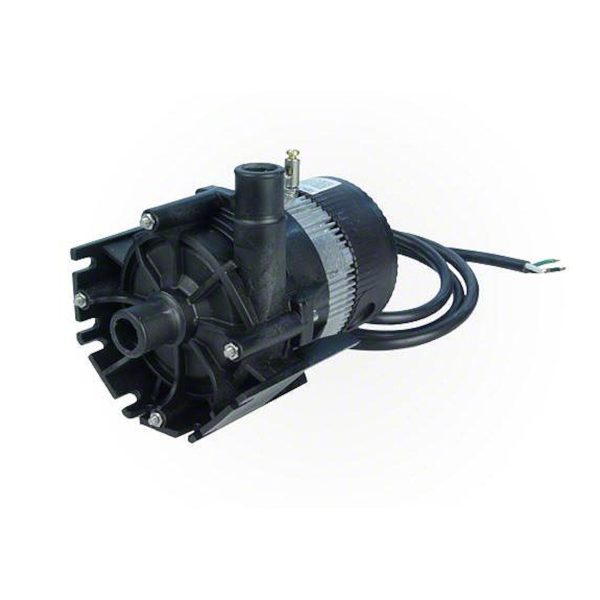

Laing E14 Spa Circulation Pump — 230V 1-1/2″ MBT Buttress Thread | 73348
