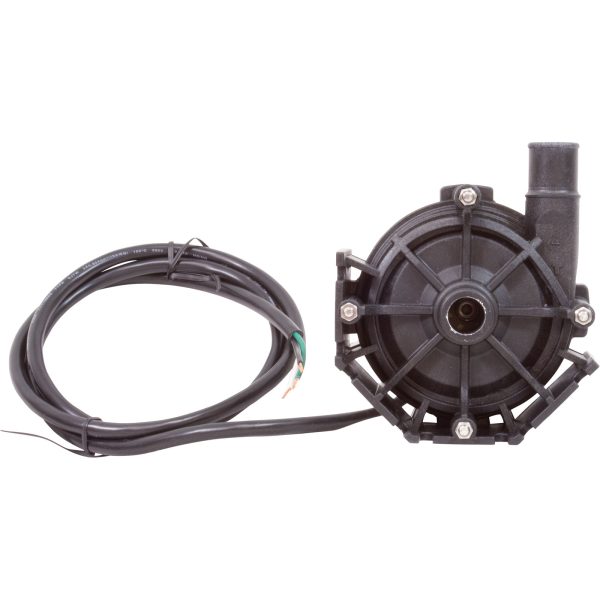

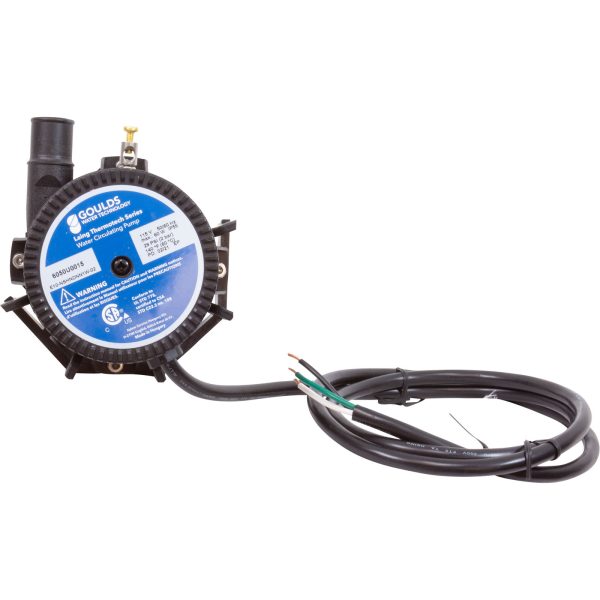

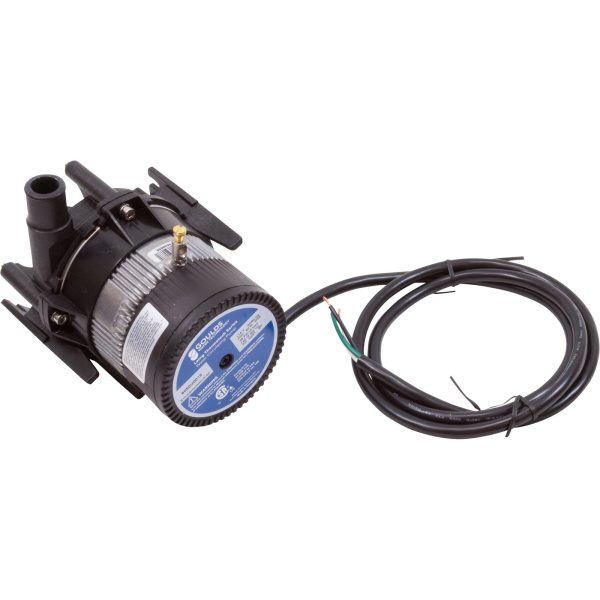

Laing E-10 EcoCirc 6050U0015 Spa Circulation Pump – 115V 3/4″ Barb

$ 91.52

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

♨️ Laing E-10 EcoCirc 6050U0015 Spa Circulation Pump – 115V 3/4″ Barb Energy-saving ECM circulation with dry run protection for 24/7 spa water flow �� Product Overview The Laing E-10 EcoCirc 6050U0015 is a 115V single-speed spa circulation pump with 3/4″ barb connections and a 4-foot bare cord included, designed for continuous 24/7 low-flow heater circulation. Powered by advanced Electronically Commutated Motor (ECM) technology, this pump consumes up to 40% less energy than the SM909 and SM1212 series it directly replaces — making it one of the most efficient spa circulation pumps available. The E-10 features a magnetically driven open impeller that eliminates the traditional shaft seal entirely. With no mechanical seal to leak or wear out, the number one failure point in conventional circulation pumps is completely removed. The clog-resistant open impeller design handles debris that would stall closed-impeller pumps, while the 32-bit motor with side vents provides improved cooling for extended service life. Built-in dry run protection automatically shuts down the pump if operated without water, and a soft start feature (~3 seconds) reduces mechanical stress on every startup cycle. Delivering up to 14 GPM with a maximum head of 20 feet, this pump is the factory-installed OEM circulation pump in Hot Springs (Watkins), Sundance, Jacuzzi (J-210, J-310/315, J-320/325 models after 2002), Dimension One, Cal Spas, and many other major brands. The 3/4″ barb connection is the most common OEM spa circulation pump fitting size, making this the go-to direct replacement for the widest range of hot tub brands and models. Compact, lightweight (under 5 lbs), and whisper-quiet at under 50 dB, the E-10 fits tight equipment compartments with ease. ✨ Key Features ✅ ECM Technology — Electronically Commutated AC/DC/AC Spherical Motor consumes 40% less energy than previous SM909/SM1212 series ✅ 115V / 0.61A / 70W — Ultra-low power consumption for pennies-per-day continuous 24/7 operation, delivers 98W of performance for only 70W of input power ✅ 14 GPM Maximum Flow — Optimal flow for low-flow heater systems with 20 ft maximum head ✅ 3/4″ Barb Connections — Most common OEM spa fitting size — center suction and side discharge for widest compatibility ✅ Magnetically Driven Open Impeller — NO shaft seal to leak or replace, plus clog-resistant design for trouble-free operation ✅ Built-In Dry Run Protection — Embedded microprocessor automatically detects no-water condition and shuts down to prevent damage ✅ Soft Start Technology — Approximately 3-second gradual startup reduces mechanical stress and extends pump life ✅ 4-Foot Bare Cord INCLUDED — Pre-wired and ready for direct connection to spa control system ✅ 32-Bit Motor with Side Vents — Advanced motor design with improved heat dissipation for longer service life ✅ High Density Ceramic Bearing Ball & Graphite Impeller — Engineered for continuous 24/7 operation ✅ 50/60 Hz Compatible — Works on both domestic (60 Hz) and international (50 Hz) electrical systems ✅ 1-Year Manufacturer Warranty — Full coverage from Laing Thermotech / Xylem �� Technical Specifications Specification Value Manufacturer Laing Thermotech (Xylem) Series E-10 EcoCirc Model E10-NSHNDNN1W-02 Primary Part Number 6050U0015 Alternate Part Number 73989 UPC 733886739893 Pump Type Spa Circulation Pump — 24/7 Continuous Duty Motor Type Electronically Commutated AC/DC/AC Spherical Motor (ECM) Impeller Type Magnetically Driven, Open — Clog Resistant Impeller Material Graphite with High Density Ceramic Bearing Ball Shaft Seal NONE — Magnetically Driven (No Seal Required) Voltage 115V Frequency 50/60 Hz (Domestic and International) Phase Single Phase Amperage 0.61A Wattage 70W Input (Delivers 98W Performance) RPM 3,100 Speed Single Speed Maximum Flow Rate 14 GPM Maximum Head 20 ft Maximum Working Pressure 50 PSI Maximum Temperature 140°F (60°C) Rotation Counter-Clockwise (Viewed from Motor End) Suction Connection 3/4″ Barb — Center Suction Discharge Connection 3/4″ Barb — Side Discharge Volute Fastening 4 Bolts and 4 Nuts Wet End Material Thermoplastic Discharge Positions 4 Angles via Built-In Mounting Bracket Dimensions (L × H × W) 6″ × 4.88″ × 4.31″ Weight Under 5 lbs Noise Level Under 50 dB Power Cord 4-Foot Bare Cord INCLUDED Mounting Bracket INCLUDED Protection Features Dry Run Protection, Automatic Overload Protection, Soft Start (~3 sec) Warranty 1-Year Manufacturer Warranty �� Electrical Requirements Electrical Spec Requirement Supply Voltage 115V (110V/120V same standard) Frequency 50/60 Hz Phase Single Phase Amperage 0.61A Wattage 70W Input Power Cord 4-Foot Bare Cord INCLUDED Wiring 3 Wires: Hot, Neutral, Ground ⚠️ CRITICAL — 115V ONLY: This pump operates on 115V ONLY. Do NOT connect to a 230V circuit. Using the wrong voltage will damage the motor. For 230V spas, order the Laing E-10 model 6050U0016 or 73979 (3/4″ barb, 230V). �� Compatibility Guide Laing E-10 Family — All Connection Variants Part Number Voltage Connection Model Number 6050U0015 / 73989 (This Pump) 115V 3/4″ Barb E10-NSHNDNN1W-02 6050U0011 / 74069 115V 1″ Barb E10-NSHNNN1W-19 6050U0013 115V 3/4″ MPT E10-NSTN1W-19 6050U0016 / 73979 230V 3/4″ Barb E10-NSHN2W-20 6050U0010 230V 1″ Barb E10-NSHN2W-20 73999 230V 3/4″ MPT E10-NSTN2W-20 6050U0015 (3/4″ Barb) vs 6050U0011 (1″ Barb) Comparison Feature 6050U0015 (This Pump) 6050U0011 Voltage 115V 115V Connections 3/4″ Barb 1″ Barb Amperage 0.61A 0.61A Wattage 70W 70W Max Flow Rate 14 GPM 14 GPM Max Head 20 ft 20 ft Motor / Protection Identical Identical Dimensions 6″ × 4.88″ × 4.31″ 6″ × 4.88″ × 4.31″ Cord 4 ft Bare — INCLUDED 4 ft Bare — INCLUDED �� Both pumps are the identical E-10 motor and wet end design — the ONLY difference is the barb connection size. Choose 3/4″ barb (this pump) or 1″ barb (6050U0011) based on your spa’s existing plumbing. SM909 and SM1212 Series — Replaced By E-10 The Laing E-10 directly replaces ALL previous Laing SM909 and SM1212 series circulation pumps, consuming up to 40% less energy while providing equal or better flow rates. Previous Model Flow Rate Replaced By SM-909-NH-14 (6848) 6 GPM E-10 6050U0015 (14 GPM) SM-909-NH-26 (6860) 9.5 GPM E-10 6050U0015 (14 GPM) SM-909-NH-18 (6865) 11 GPM E-10 6050U0015 (14 GPM) SM-1212-NH-26 (6958) 12 GPM E-10 6050U0015 (14 GPM) SM909NTW-14 3/4″ Barb 115V E-10 6050U0015 (Direct) SM909NTW-18 3/4″ Barb 115V E-10 6050U0015 (Direct) SM909NTW-26 3/4″ Barb 115V E-10 6050U0015 (Direct) SM1212NTW-26 3/4″ Barb 115V E-10 6050U0015 (Direct) Compatible Spa Brands (OEM Equipment) The Laing E-10 with 3/4″ barb is the most widely used OEM spa circulation pump. Factory-installed in: ♨️ Hot Springs / Watkins Manufacturing — Replaces SilentFlo 5000 (Watkins 37949, 34378, 73491, 301392, 1039801) ♨️ Jacuzzi — Models J-210, J-310/315, J-320/325 (all models after 2002 convertible to 115V) ♨️ Sundance Spas ♨️ Dimension One (D1) ♨️ Cal Spas ♨️ And many other major spa manufacturers �� Alternate Part Numbers & Cross-References Primary Part Numbers Part Number Description 6050U0015 Laing Primary Part Number 73989 Laing Alternate Part Number E10-NSHNDNN1W-02 Laing Full Model Number E10-NSHN1W-19 Laing Model (Abbreviated) E10-NSHNNN1W Laing Model (Short Form) E10-NSHNNN1W-19 Laing Model (Alternate) 733886739893 UPC Code HydroQuip Cross-References Part Number Notes 10-0120 HydroQuip Part Number 10-0120-K HydroQuip Kit Version LHB07100139 HydroQuip Internal Code LHB07100169 HydroQuip Internal Code Watkins / Hot Springs Cross-References Part Number Notes SilentFlo 5000 Watkins Marketing Name 37949 Watkins Part Number 34378 Watkins Part Number 73491 Watkins Part Number 301392 Watkins Part Number 1039801 Watkins Part Number 01512-86 Watkins Part Number 39586 Watkins Part Number 73349 Watkins Part Number LTI (Laing Thermotech Inc.) Cross-References Part Number Notes LTI 7060 LTI Code LTI 70813 LTI Code LTI 73588 LTI Code LTI 73989 LTI Code LTI 37949 LTI Code Allied Innovations Cross-References Part Number Notes 1-00-0136 Allied Part Number 1-00-0136A Allied Part Number 1-00-0164 Allied Part Number 1-00-0173 Allied Part Number 1-00-0177 Allied Part Number Sundance / Jacuzzi Cross-References Part Number Notes 6487 Sundance/Jacuzzi 6496 Sundance/Jacuzzi 6650 Sundance/Jacuzzi 6846 SM-909 Series 6848 SM-909-NH-14 — 6 GPM 6860 SM-909-NH-26 — 9.5 GPM 6865 SM-909-NH-18 — 11 GPM 6958 SM-1212-NH-26 — 12 GPM Dimension One (D1) Cross-References Part Number Notes 6603.9 Dimension One 6321.9 Dimension One 6496.9 Dimension One 6602.9 Dimension One Previous SM909 / SM1212 Model Codes Part Number Notes SM-909-NH-14 SM909 — 6 GPM SM-909-NH-14-2 SM909 Variant SM-909-NH-18 SM909 — 11 GPM SM-909-NH-26 SM909 — 9.5 GPM SM909NH SM909 Model Code SM909NTW-14 SM909 3/4″ Barb 115V SM909NTW-18 SM909 3/4″ Barb 115V SM909NTW-26 SM909 3/4″ Barb 115V SM1212NTW-26 SM1212 3/4″ Barb 115V LAISM909NH142 Laing SM909 Code LAISM909NH1834 Laing SM909 Code LAISM909NH26120 Laing SM909 Code LAISM1212NH2612 Laing SM1212 Code LAI-10-116 Laing Code Other Industry Cross-References Part Number Notes 6080U0007 Laing Alternate 6080U0027 Laing Alternate 6080U0031 Laing Alternate 34-158-1450 Industry Part Number 6500-038 Industry Part Number 6500-460 Industry Part Number SD6500-460 Industry Part Number 6500-035 Industry Part Number 6500-125 Industry Part Number 6000-1215 Industry Part Number A-05-280-502 Industry Part Number 611064 Industry Cross-Reference 611123 Industry Cross-Reference 9332-0 Industry Cross-Reference 9336-0 Industry Cross-Reference 9338-0 Industry Cross-Reference 9338-10 Industry Cross-Reference 9339-15 Industry Cross-Reference LMB07102962 Industry Code (Confirm Fitting Size) UPC Cross-References UPC Notes 733886739893 Primary UPC 733886665000 UPC Cross-Reference 733886684605 UPC Cross-Reference 733886686005 UPC Cross-Reference 733886686500 UPC Cross-Reference 733886695809 UPC Cross-Reference ��️ Installation Requirements What’s in the Box ✅ Laing E-10 EcoCirc Circulation Pump ✅ 4-Foot Bare Cord (Pre-Wired) ✅ Built-In Mounting Bracket ❌ Unions / Fittings — NOT INCLUDED (Order Separately) Mounting Requirement Specification Mounting Position Horizontal, or Vertical with motor end down Bracket Built-in mounting bracket with 4 discharge angle positions Base Solid, level surface Ventilation Side vents must remain clear for motor cooling Access Sufficient clearance for service and maintenance Plumbing Connection Size Suction 3/4″ Barb — Center Discharge 3/4″ Barb — Side Volute Fastening 4 Bolts and 4 Nuts Installation Notes ⚠️ Pump must be installed below water level (flooded suction) to operate properly. ⚠️ Built-in dry run protection will shut down the pump if operated without water — however, always ensure flooded suction before starting. ⚠️ 4-foot bare cord requires wiring to spa control system — connect hot, neutral, and ground wires per your spa’s wiring requirements. ⚠️ Soft start feature provides approximately 3-second gradual startup — this is normal operation, not a fault. ⚠️ Can be mounted horizontally or vertically with motor end pointing down. Do NOT mount with motor end up. ⚠️ Counter-clockwise rotation when viewed from the motor end — do not attempt to reverse. ⚠️ GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. ⚠️ Keep motor side vents clear of debris for proper cooling. ⚠️ 115V ONLY — verify your spa’s voltage before ordering. For 230V, order 6050U0016 or 73979 (3/4″ barb, 230V). ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Around barb connections and hose clamps Inspect hose clamps Monthly Tighten if needed Check flow rate Monthly Reduced flow indicates blockage Inspect motor side vents Quarterly Keep clear of debris for cooling Verify quiet operation Quarterly Unusual noise indicates bearing wear Check mounting bracket Quarterly Tighten if loose Clean open impeller area As Needed Remove any debris if flow decreases Warning Signs — Replace Pump If: Unusual noise (grinding, humming, rattling) Motor overheating excessively Reduced or no water flow despite clear suction Motor trips breaker repeatedly Pump fails to start after soft start period Dry run protection activates repeatedly with water present Magnetically Driven Impeller — NO Seal Replacement Needed The Laing E-10 uses a magnetically driven impeller with NO mechanical shaft seal. Unlike conventional shaft-seal circulation pumps (Gecko CMHP, Waterway Iron Might, Balboa) where the seal is the most common failure point, the E-10’s magnetic drive completely eliminates this component. There is no seal to leak, wear out, or replace — ever. �� Ideal Applications Application Suitability Notes ♨️ 24/7 Spa Circulation ✅ Yes — Primary Use Continuous duty low-flow heater circulation ♨️ Low-Flow Heater Systems ✅ Yes — Primary Use 14 GPM max flow, 20 ft max head ♨️ Hot Springs / Watkins Spas ✅ Yes — OEM Replaces SilentFlo 5000 — direct factory replacement ♨️ Jacuzzi Spas (Post-2002) ✅ Yes — OEM J-210, J-310/315, J-320/325 at 115V ♨️ Sundance Spas ✅ Yes — OEM Direct factory replacement ♨️ Dimension One (D1) Spas ✅ Yes — OEM Replaces 6603.9, 6321.9, 6496.9, 6602.9 ♨️ Cal Spas ✅ Yes — OEM Direct factory replacement ♨️ Replacement SM909 / SM1212 ✅ Yes — Direct Replaces ALL SM909 and SM1212 3/4″ barb models ♨️ Ozone Treatment Systems ✅ Yes Compatible with ozone injection ♨️ Saltwater Spa Systems ✅ Yes Saltwater compatible ♨️ Chilling Systems ✅ Yes Compatible application �� Spas with 1″ Plumbing ❌ No — Wrong Size Use 6050U0011 (1″ barb, 115V) instead �� 230V Spa ❌ No — 115V Only Use 6050U0016 or 73979 (3/4″ barb, 230V) �� 1-1/2″ MBT Plumbing ❌ No Use Gecko Aqua-Flo CMHP for 1-1/2″ connections �� High-Flow 40 GPM ❌ No Use Gecko CMHP for high-flow requirements ❓ Frequently Asked Questions Q: What is the flow rate of this pump? A: Maximum 14 GPM with a maximum head of 20 feet. Designed for continuous 24/7 low-flow heater spa circulation. Q: What is the amperage draw? A: 0.61A at 115V, consuming just 70W of input power while delivering 98W of performance through ECM technology. Q: Does this pump come with a power cord? A: Yes. A 4-foot bare cord is included and pre-wired to the pump. Connect the hot, neutral, and ground wires to your spa’s control system. Q: What size are the connections? A: 3/4″ barb inlet (center suction) and 3/4″ barb outlet (side discharge). This is the most common OEM spa circulation pump connection size. For spas with 1″ plumbing, use the Laing E-10 model 6050U0011 (1″ barb, 115V) instead. Q: Does this replace the Watkins SilentFlo 5000? A: Yes. The E-10 6050U0015 is the direct replacement for the Watkins SilentFlo 5000 and all associated Watkins part numbers (37949, 34378, 73491, 301392, 1039801). Q: Will this fit my Jacuzzi spa? A: Yes, for Jacuzzi models made after 2002 that are convertible to 115V power, including the J-210, J-310/315, and J-320/325. Verify your spa operates on 115V and uses 3/4″ barb connections. Q: Does this replace the Laing SM909 and SM1212 series? A: Yes. The E-10 directly replaces ALL SM909 and SM1212 series models with 3/4″ barb connections, while consuming up to 40% less energy. Q: Does this pump have a shaft seal? A: No. The E-10 uses a magnetically driven impeller that completely eliminates the mechanical shaft seal. There is no seal to leak, wear out, or replace. Q: What is dry run protection? A: The E-10 has an embedded microprocessor that automatically detects when the pump is running without water and shuts it down to prevent motor and pump damage. Q: What is the difference between 6050U0015 and 6050U0011? A: They are the identical E-10 pump — same motor, same performance, same protection features. The ONLY difference is the connection size: 6050U0015 has 3/4″ barb connections (this pump), while 6050U0011 has 1″ barb connections. Choose based on your spa’s existing plumbing. Q: Can I mount this pump vertically? A: Yes. The E-10 can be mounted horizontally or vertically with the motor end pointing down. Do NOT mount with motor end up. Q: Can I adjust the discharge angle? A: Yes. The built-in mounting bracket allows installation in 4 different discharge positions to match your existing plumbing configuration. Q: What voltage does this pump require? A: 115V ONLY (also referenced as 110V or 120V — same standard). Works on both 50 Hz and 60 Hz. For 230V, order the Laing E-10 model 6050U0016 or 73979 (3/4″ barb, 230V). Q: Is this pump quiet? A: Yes, extremely. The E-10 operates at under 50 dB — virtually silent during operation. The ECM motor with soft start technology contributes to whisper-quiet performance. Q: Do I need a GFCI breaker? A: Yes. GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. Q: What warranty is included? A: 1-year manufacturer warranty from Laing Thermotech / Xylem. Contact Parts4Tubs for full warranty terms and support. �� Why Choose the Laing E-10 EcoCirc 6050U0015 ✅ Most Common OEM Spa Circ Pump — Factory-installed in Hot Springs, Jacuzzi, Sundance, Dimension One, Cal Spas, and many more ✅ ECM Motor Technology — 40% more energy-efficient than the SM909/SM1212 series it replaces ✅ Built-In Dry Run Protection — Embedded microprocessor prevents costly damage from operating without water ✅ Soft Start Technology — Gradual 3-second startup reduces mechanical stress and extends pump life ✅ Magnetically Driven Open Impeller — NO shaft seal to leak or replace, PLUS clog-resistant design ✅ Whisper-Quiet Operation — Under 50 dB for virtually silent running ✅ 3/4″ Barb — Widest Compatibility — Matches the most common OEM spa plumbing connection size ✅ 98W Performance from 70W Input — ECM efficiency delivers more flow per watt ✅ Horizontal or Vertical Mounting — Flexible installation with 4 discharge angle positions ✅ 70 Cross-Reference Part Numbers — Replaces the widest range of OEM circulation pumps in the industry ✅ Laing Thermotech / Xylem Quality — Decades of proven reliability in spa circulation ✅ 1-Year Manufacturer Warranty — Full coverage for peace of mind �� Why Buy from Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Complete Laing E-10 family in stock (115V and 230V, all connection types) ✅ Dedicated customer service team ✨ Summary The Laing E-10 EcoCirc 6050U0015 is a 115V spa circulation pump with 3/4″ barb connections — the most widely used OEM circulation pump in the spa industry. Featuring advanced ECM technology at just 0.61A and 70W, built-in dry run protection, soft start, a magnetically driven clog-resistant open impeller with no shaft seal, and a 4-foot bare cord included, this pump directly replaces all SM909 and SM1212 series models plus the Watkins SilentFlo 5000. Factory-installed in Hot Springs, Jacuzzi, Sundance, Dimension One, and Cal Spas with 70 documented cross-reference part numbers. Order from Parts4Tubs today for fast shipping and expert support. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Laing E-10 EcoCirc 6050U0015 Spa Circulation Pump – 115V 3/4″ Barb
