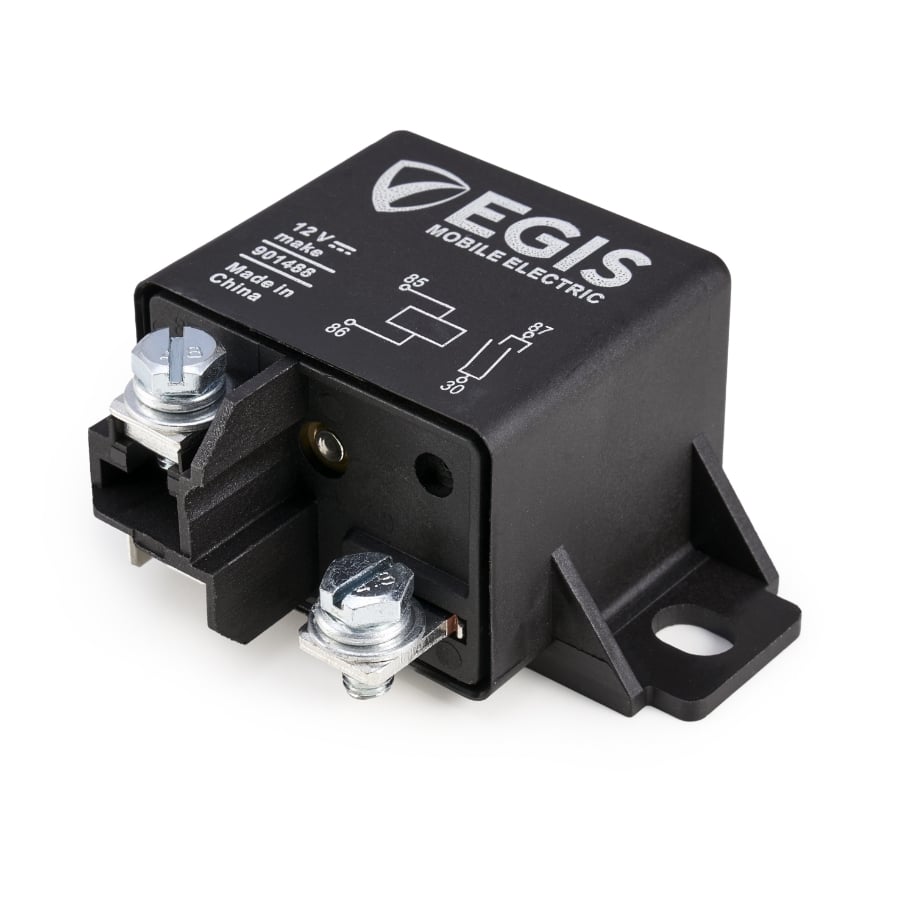

Egis Mobile Electric 901488 Power Relay, 12VDC, SPST, 75A, Dual Contact

$ 18.44

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

Bullet-Proof Construction Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting. Automotive Grade Wide operational temperature ratings and shock/vibration resistance make this a great relay for your automotive electrical system. Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6, IP54 and IEC 60068-2-2 ratings. Long Term Reliability Built from high quality materials, this relay offers superior electrical switching performance for long term use applications. Locking Hardware Zinc plated M5 size input/output terminal screws with held in place nuts keeps connections secure and easy tightening for wire terminations. Dual Mounting Holes on either side for easy mounting with ¼-20”/M6 1.25 Bolts or screws up to #14 screw. Incorporates The Highest Quality Materials for superior performance and has a high 100,000 electrical switching cycle capacity. Enhanced Vibration and Shock Protection ensures enhanced reliability and a long service life and maintains electrical system operational readiness. Bi-Furcated Contacts reduce contact bounce, increase long term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat build up and contact wear. High Intermittent Amperage rating of 150 amps for up to 3 seconds making this relay great for temporary high equipment start up amp draw applications. Offset Input/Output Terminals and integrated divider design help prevent accidental contact shorts High Temperature Rating of 125C/257F makes this a great relay for high temperature installation environments like engine bays and other low ventilation spaces. Compact Size small mounting footprint is great for confined install spaces Reinforced Mounting robust mounting tabs with strengthening gussets ensures relay stays mounted securely, even through vibration, heat, and wire tension. Direct Replacement for 332002150, V23232-D0001-X001, and PC775-1A-12C-X

Egis Mobile Electric 901488 Power Relay, 12VDC, SPST, 75A, Dual Contact

Related products

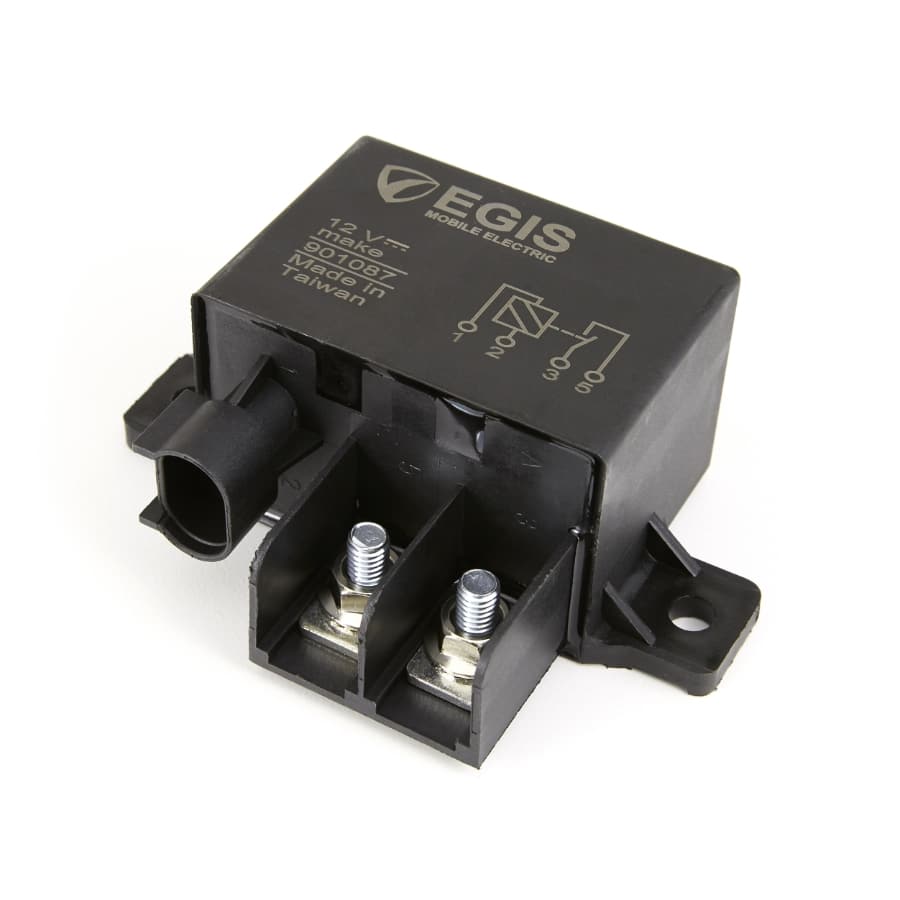

Egis Mobile Electric 901087 Power Relay, SPST, 130A, 12VDC
