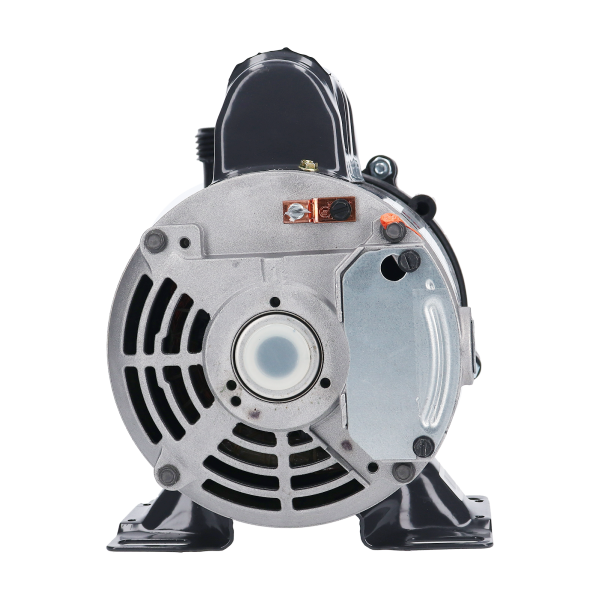

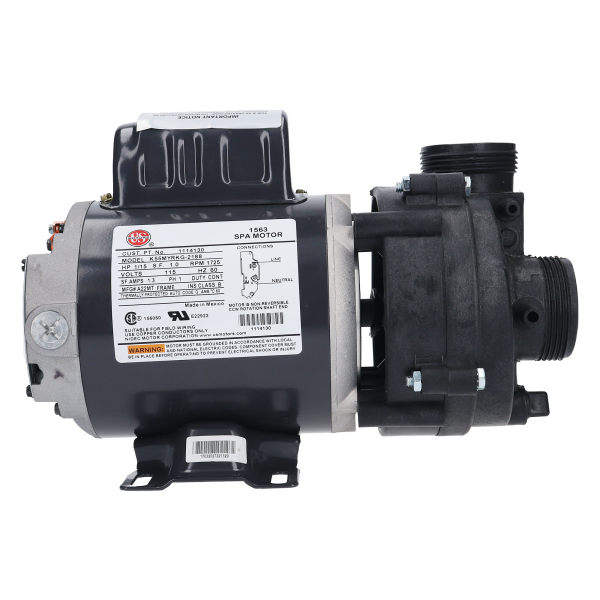

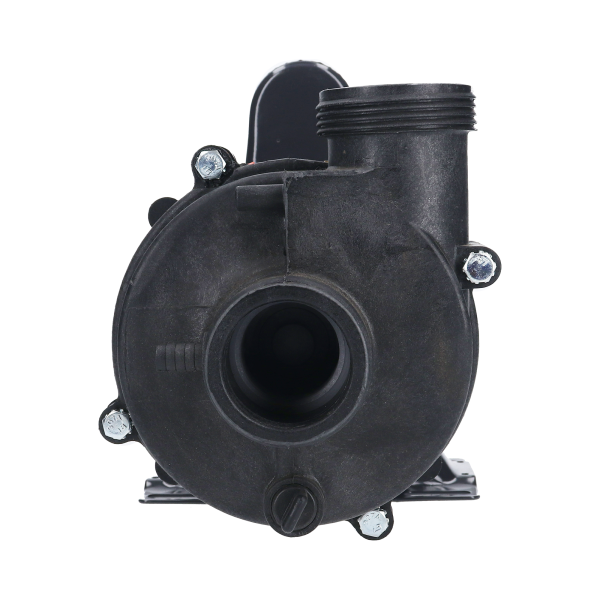

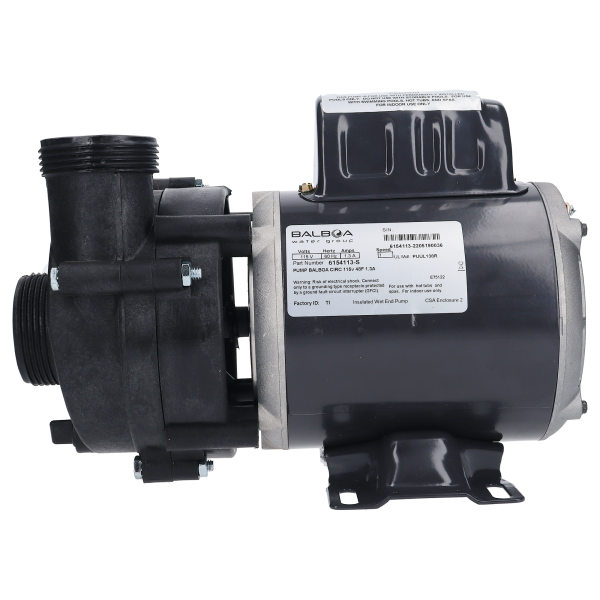

Balboa 6154113-S Circulation Spa Pump – 1/15 HP Single Speed 115V

$ 95.51

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Balboa 6154113-S Circulation Spa Pump – 1/15 HP Single Speed 115V Whisper-quiet 24/7 circulation with exceptional flow for crystal clear spa water �� Product Overview The Balboa 6154113-S is a premium circulation pump engineered for continuous 24-hour operation in hot tubs and spas. This pump combines two proven technologies: the reliable Ultima pump wet end and the innovative WOW motor, delivering an impressive 67 GPM of water flow while drawing a mere 1.3 amps. Operating at 115V/60Hz with a compact 48-frame design, this pump is purpose-built for quiet, energy-efficient circulation in systems that use a dedicated circulation pump alongside separate jet pumps. The 6154113-S features carbon ceramic seals with Viton® elastomers that resist prolonged heat and chemical exposure, ensuring long-lasting performance in demanding spa environments. Its multi-directional volute mounting provides installation flexibility to accommodate virtually any plumbing configuration, while its nearly silent operation means you can enjoy your spa experience without motor noise. ⭐ Key Features ✅ Ultima Wet End Technology – Proven reliability from Balboa’s time-tested wet end design, delivering consistent performance ✅ WOW Motor Technology – Advanced motor design originally developed for the bath market, optimized for quiet continuous duty ✅ 67 GPM Maximum Flow – High-volume water circulation for efficient filtration and heat distribution ✅ Ultra-Low 1.3 Amp Draw – Exceptional energy efficiency for 24/7 operation, keeping electricity costs minimal ✅ Carbon Ceramic Seals with Viton® Elastomers – Chemical-resistant and heat-resistant seals for extended service life ✅ Multi-Directional Volute Mounting – Flexible discharge orientation to accommodate any plumbing configuration ✅ Nearly Silent Operation – Vibration-dampening motor design ideal for whirlpool applications where noise is unacceptable ✅ Ozone System Compatible – Supports concurrent ozone injection for enhanced water sanitization ✅ Auto Shut-Off Protection – Built-in safety feature detects blocked suction or dry-run conditions and shuts down to protect the motor ✅ High Heat Limit Overload Protection – Additional motor protection against thermal damage ✅ Compact 48-Frame Short Design – Fits into tight equipment bays where larger pumps cannot ✅ 1-1/2″ MBT Connections – Standard male buttress thread ports for easy integration with existing plumbing ✅ 2-Year Manufacturer Warranty – Covers both pump and motor from date of installation �� Technical Specifications Specification Value Model Number 6154113-S Manufacturer Balboa Water Group Pump Type Circulation Motor Power 1/15 HP Speed Settings Single Speed Motor Speed 1725 RPM Voltage 115V Frequency 60 Hz Amperage 1.3A Maximum Flow Rate 67 GPM Frame Type 48Y (48-Frame Short) Suction Port 1-1/2″ MBT (Center) Discharge Port 1-1/2″ MBT (Side) Port Thread OD 2-3/8″ across threads Discharge Position Side Discharge Suction Position Center Suction Volute Mounting Multi-Directional Seal Type Carbon Ceramic with Viton® Elastomers Motor Width Approx. 5.85″ Overall Length Approx. 10.5″ Height Approx. 7.5″ Cord None – Hardwire Installation Required Unions Not Included (1-1/2″) Mounting Orientation Horizontal Certifications UL, TUV, cCSAus Warranty 2 Years (Pump and Motor) ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 115V Frequency 60 Hz Phase Single Phase Full Load Amps 1.3A Connection Type Hardwire (No Cord Included) ⚠️ IMPORTANT ELECTRICAL SAFETY INFORMATION: All electrical work must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and local building codes. Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection as mandated by the NEC. A dedicated circuit is required — do not share the circuit with other appliances. This pump does not include a power cord. It must be hardwired to your spa control system or directly to an appropriately rated electrical supply by a licensed electrician. Verify your existing electrical supply voltage before installation. Connecting to incorrect voltage will damage the motor and void the warranty. �� Compatibility Guide Frame and Port Configuration Specification This Pump Frame Type 48Y (48-Frame Short) Suction 1-1/2″ MBT – Center Discharge 1-1/2″ MBT – Side Volute Multi-Directional Mounting Union Thread OD 2-3/8″ across threads Connection Type Reference This pump uses Male Buttress Thread (MBT) connections — there are no barbs on the front of the wet end. It uses standard 1-1/2″ pump unions (included) that thread onto the MBT ports. Union Size Collar Size (Tip to Tip) O-Ring OD 1-1/2″ FBT 2-1/2″ (64mm) 2-5/16″ (59mm) 230V Equivalent If your spa requires 230V, the equivalent model is the Balboa 6154106-S (230V / 60Hz / 0.6A). Specifications and wet end are identical — only the motor voltage differs. Alternate Part Numbers This pump may also be referenced under the following part numbers: BB6154113 BB6154113S VIC6154113 06154113-S 10-6154113 21-0021-81 (Artesian Spas) 1070022 (Vico) 1030056 (Vico) Component Part Numbers Component Part Number Wet End Assembly 98811 Motor Assembly 049 ��️ Installation Requirements Mounting Requirement Specification Mounting Position Horizontal Only Base Solid, level, vibration-dampening surface Ventilation Maintain adequate clearance around motor for air cooling Access Allow sufficient clearance for maintenance and union access Plumbing Connection Size Suction 1-1/2″ MBT (Center) Discharge 1-1/2″ MBT (Side) Union Type 1-1/2″ FBT Unions (Included) Installation Notes ⚠️ Before starting the motor, fill the tub with water to the level recommended by the hot tub manufacturer. If not specified, fill to the same level as the top of the pump. Never run the pump dry! ⚠️ The multi-directional volute allows the discharge to be oriented in multiple positions to match your plumbing layout. Adjust before final installation. ⚠️ The motor includes a built-in automatic reset overload protector. If the timer is still on, the motor will restart automatically once it cools down. ⚠️ This pump requires hardwire installation — no power cord is included. Connect to your spa control system’s circulation pump output or to a properly rated dedicated circuit. ⚠️ All electrical wiring (both installation and repair) must be done by a licensed electrician in accordance with local and state ordinances. ⚠️ GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. ⚠️ No modifications, additions, or deletions should be made to the pump without factory approval. ⚠️ Do not relocate the pump without prior approval from the manufacturer. ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Inspect around seal area and union connections Inspect union connections Monthly Hand-tighten if needed — do not use tools on union nuts Check motor ventilation Quarterly Ensure motor vents and cooling fan shroud are clear of debris Verify amperage draw Annually Should read approximately 1.3A — significant deviation indicates a problem Inspect mounting bolts Quarterly Tighten if loose to reduce vibration Motor Update Note Balboa updated the motor design on these pumps in March 2022. The current motor is sealed with the cooling fan on the outside of the back, covered with a protective shroud. The electrical connection is now on an external junction box on the side of the motor. Warning Signs — Consider Pump Replacement If: Unusual noise (grinding, screeching, or humming without starting) Water leaking from the seal area Motor trips breaker repeatedly Reduced water flow through the circulation system Motor running excessively hot Motor failing to start or running intermittently Seal Replacement Detail Specification Seal Type Carbon Ceramic with Viton® Elastomers Replacement Replace at first sign of water leakage from the seal area Seal Replacement Tips (from manufacturer): Lubricate the stationary seal member with clean water only before installation. Push the stationary seal member into the seal plate cavity, seating it firmly and squarely with finger pressure only. Do NOT use a screwdriver or any tool that might damage the ceramic seal member. Clean the impeller hub and wet the shaft with clean water before sliding the rotating seal member on. The impeller threads onto the shaft — hand-tight only. Insert a screwdriver in the rear slot to prevent the shaft from turning while removing or installing the impeller. �� Ideal Applications Application Suitability Notes ♨️ Hot Tub Circulation System ✅ Yes — Primary Use Designed for 24/7 continuous circulation in dedicated circ pump systems ♨️ Spa Filtration Loop ✅ Yes Provides continuous water movement through heating and filter system ♨️ Heat Distribution ✅ Yes Maintains even water temperature throughout the spa ♨️ Chemical Distribution ✅ Yes Keeps sanitizer and treatment chemicals evenly distributed ♨️ Ozone Integration ✅ Yes Compatible with concurrent ozone injection for water purification �� Whirlpool Bath ✅ Yes Originally developed from WOW motor bath technology — ideal for quiet whirlpool applications ♨️ Jet Pump Replacement ❌ No This is a circulation pump — it does not power therapy jets ❓ Frequently Asked Questions Q: What horsepower is this pump? A: This pump is rated at 1/15 HP, which is standard for dedicated circulation pumps. Circulation pumps are designed for continuous low-power operation, not jet power. Q: Will this fit my hot tub? A: This pump has a 48Y frame with 1-1/2″ MBT suction (center) and 1-1/2″ MBT discharge (side). Check your existing circulation pump’s frame type, port sizes, and connection type for compatibility. The multi-directional volute offers flexibility in discharge orientation. Q: What voltage does this pump require? A: 115V / 60Hz. If your spa requires 230V, you need the Balboa 6154106-S instead. Always verify your existing pump’s voltage before ordering. Using incorrect voltage will damage the motor. Q: Does this pump come with a power cord? A: No. This pump requires hardwire installation. It must be connected to your spa control system’s circulation pump output or directly to a properly rated electrical supply by a licensed electrician. Q: Does it come with unions? A: Yes. This pump includes 1-1/2″ pump unions for both suction and discharge connections. Q: How quiet is this pump? A: The Balboa circulation pump is designed for nearly silent operation. The WOW motor features vibration-dampening design specifically engineered for whirlpool applications where noise is unacceptable. You should not hear this pump during normal operation. Q: Can I use this pump with an ozone system? A: Yes. This pump supports concurrent ozone injection, allowing water sanitization to run simultaneously with circulation. Q: What does the auto shut-off protection do? A: If the pump suction becomes blocked or the pump runs dry, the built-in protection senses the heat rise and automatically shuts the motor down before it burns out. This safety feature protects the pump from permanent damage. Q: How much will this pump cost to run? A: At only 1.3 amps on 115V, this pump draws approximately 150 watts. Running 24/7, that amounts to roughly 3.6 kWh per day. At an average US electricity rate, this translates to approximately $15-20 per month for continuous operation — significantly less than running a jet pump for circulation. Q: Is this a jet pump? A: No. This is a dedicated circulation pump designed for continuous water movement through the heating and filter system. It does not power therapy jets. Most spas that use this pump have separate jet pump(s) for hydrotherapy. Q: What is the maximum flow rate? A: Up to 67 gallons per minute (GPM), which is exceptional for a circulation pump of this size and power draw. Q: What size are the ports? A: Both suction and discharge are 1-1/2″ Male Buttress Thread (MBT). The thread outside diameter measures approximately 2-3/8″. There are no barbs on the wet end — it uses threaded union connections only. Q: What warranty is included? A: 2-year manufacturer warranty covering both the pump and motor from date of installation. Contact Parts4Tubs for full warranty terms and conditions. Q: Do I need a GFCI breaker? A: Yes. GFCI (Ground Fault Circuit Interrupter) protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. Q: The motor on my pump looks different from the pictures — is it still the same pump? A: Balboa updated the motor design in March 2022. The current version has a sealed motor with an external cooling fan covered by a protective shroud and an external junction box for electrical connections. Pump & motor manufacturers reserve the right to change motors or motor style without notice — functionality remains the same. �� Why Choose the Balboa 6154113-S Circulation Pump ✅ Proven Dual Technology — Combines the trusted Ultima wet end with the innovative WOW motor for unmatched reliability ✅ Exceptional Flow-to-Power Ratio — 67 GPM from just 1.3 amps is industry-leading efficiency ✅ Designed for 24/7 Duty — Built to run continuously without overheating, excessive noise, or premature wear ✅ Nearly Silent Operation — Vibration-dampening motor design means you enjoy your spa, not your pump ✅ Built-In Safety Protection — Auto shut-off and thermal overload prevent costly motor damage ✅ Chemical-Resistant Seals — Viton® elastomers and carbon ceramic construction resist spa water chemistry ✅ Flexible Installation — Multi-directional volute and compact 48-frame short design fit virtually any equipment bay ✅ Ozone Ready — Supports concurrent ozone injection for enhanced water quality ✅ Wide OEM Compatibility — Used by Artesian Spas, Vico, and many other hot tub manufacturers ✅ Backed by Balboa — 2-year warranty from the world’s largest spa control system manufacturer �� Why Buy From Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Replacement seals and parts available ✅ Pump unions and AMP cords in stock ✅ Dedicated customer service team ✨ Summary The Balboa 6154113-S is a 1/15 HP single-speed circulation pump operating at 115V/60Hz, delivering up to 67 GPM while drawing only 1.3 amps. Featuring the Ultima wet end with WOW motor technology, carbon ceramic Viton® seals, multi-directional volute mounting, and built-in auto shut-off protection, this pump is the ideal choice for quiet, efficient 24/7 hot tub circulation. Backed by a 2-year manufacturer warranty from Balboa Water Group, it fits standard 48-frame installations with 1-1/2″ MBT connections. Order today from Parts4Tubs for fast US shipping and expert support. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Balboa 6154113-S Circulation Spa Pump – 1/15 HP Single Speed 115V
