Grundfos Universal Kit 3-Speed Spa Circulation Pump — 115V, 3/4″ Barb | 99575701P1

$ 97.24

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

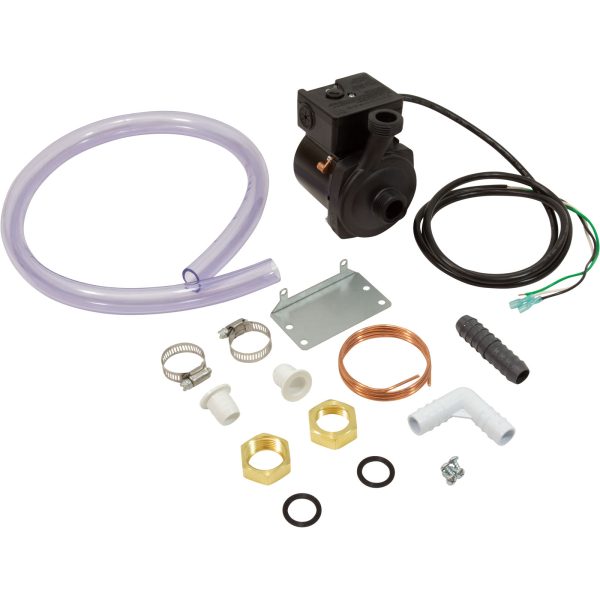

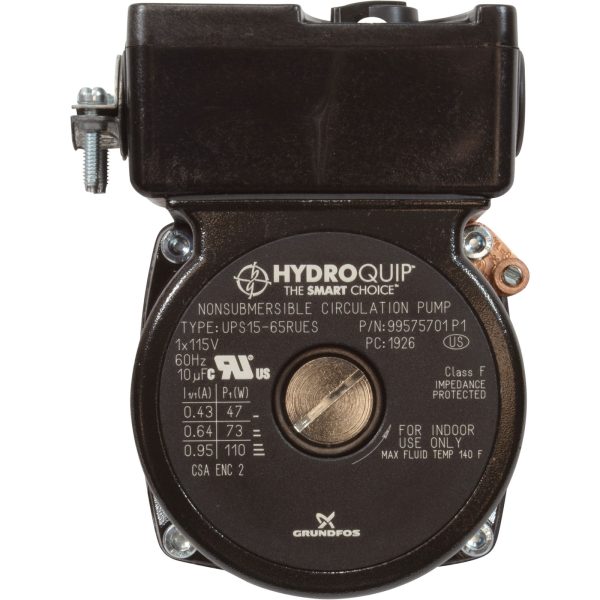

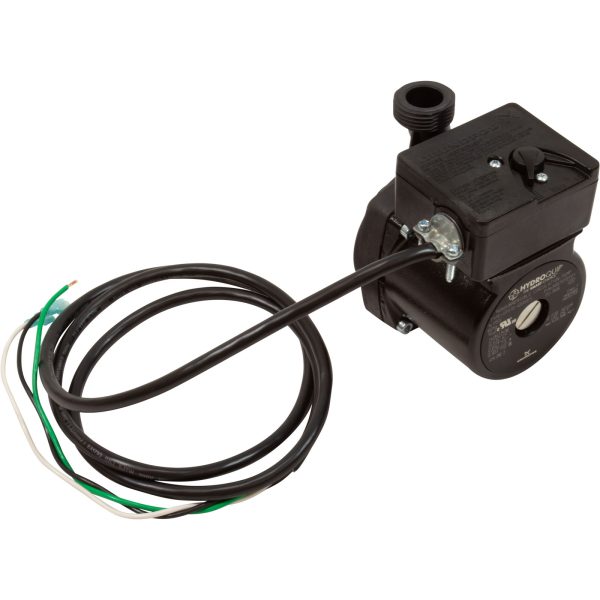

�� Grundfos Universal Kit 3-Speed Spa Circulation Pump — 115V, 3/4″ Barb | 99575701P1 The universal replacement that fits practically every low-flow spa heating system �� Product Overview The Grundfos Universal Kit 99575701P1 is a 3-speed, 115V spa circulation pump packaged as a complete universal replacement kit — designed to replace practically every circulation pump ever used in a low-flow heater spa environment. Whether you’re replacing a failed Laing E5, Laing E10, Waterway Tiny Might, Sundance/Jacuzzi 6000-314, or any other 3/4″ or 1″ barb circulation pump, this kit includes everything you need for a complete installation: the pump, unions, fittings, elbows, barb adapters for both 3/4″ and 1″ plumbing, and a power cord. The pump features a 3-speed motor with a speed selector switch on top — Low (0.43A / 47W), Medium (0.64A / 73W), and High (0.95A / 110W) — allowing you to match the specific flow demands of your individual spa design. The universal base allows rotation of the pump to fit comfortably into any existing space, and the rotating volute lets you set the inlet and outlet at any angle to match your plumbing configuration. Grundfos is a world-leading pump manufacturer based in Denmark with major production in the USA. This pump is Made in USA, Class F insulation rated, and California Title 20 Compliant for energy efficiency. The Grundfos wet rotor design means the rotor runs in the pumped liquid — there is no traditional mechanical shaft seal to leak or replace, a major advantage over conventional spa circulation pumps. The sealed, maintenance-free design delivers whisper-quiet operation and consumes up to 40% less energy than larger circulation pumps, making it ideal for 24/7 continuous operation. The kit mounts in the same footprint as Laing circulation pumps, making it a true drop-in replacement with the included adapters and fittings. The 3/4″ barb connections are standard, and the included 1″ barb adapters expand compatibility to virtually all spa plumbing configurations. �� COMPLETE KIT: This is a universal kit that includes the pump, unions, fittings, elbows, barb adapters (3/4″ and 1″), power cord, and spa foot mounting hardware. Everything needed for installation is in the box. ⚠️ START-UP NOTE: When first started, the shaft may rotate slowly until water has fully penetrated the bearings. After a long shutdown period, multi-speed pumps should be started on speed 3 (high) and then adjusted to the regular setting. ⚠️ WEATHER PROTECTION: These pumps should be installed in a sheltered location with proper weather protection, especially from frost, rain, direct sun, and dust. ⭐ Key Features ✅ 3-Speed Motor — Low / Medium / High with selector switch on top of motor — match flow to your spa’s specific demands ✅ Universal Replacement Kit — Designed to replace practically every circ pump used in low-flow heater spa systems ✅ 115V / 60Hz — Ultra-Low Energy — Just 0.43A to 0.95A depending on speed — 40% less energy than larger circ pumps ✅ 3/4″ Barb Connections — Standard 3/4″ with 1″ barb adapters included for universal plumbing compatibility ✅ Complete Kit — Pump, unions, fittings, elbows, barb adapters, power cord, and spa foot mounting kit included ✅ Rotating Volute — Set inlet and outlet at any rotation angle to match your existing plumbing ✅ Universal Base — Rotatable base fits comfortably into any existing spa equipment compartment ✅ Wet Rotor Design — No mechanical shaft seal to leak or replace — maintenance-free operation ✅ Whisper-Quiet — Near-silent operation ideal for 24/7 continuous duty ✅ Made in USA — Manufactured by Grundfos, a world-leading pump company ✅ California Title 20 Compliant — Meets energy efficiency requirements ✅ Mounts in Same Footprint as Laing Pumps — True drop-in replacement for Laing E5 and E10 series ⚙️ Technical Specifications Specification Value Manufacturer Grundfos Part Number 99575701P1 Also Known As 10-0139-KIT (HydroQuip designation) Pump Type Spa Circulation Pump — 3-Speed — 24/7 Continuous Duty Design Wet Rotor (no mechanical shaft seal) Voltage 115V Frequency 60 Hz Phase Single Phase Speed Settings 3 Speeds — selector switch on top of motor Low Speed 0.43A / 47W Medium Speed 0.64A / 73W High Speed 0.95A / 110W Insulation Class Class F Port Size 3/4″ Barb (1″ barb adapters included in kit) Volute Rotating — adjustable to any angle Base Universal — rotatable to fit any existing space Power Cord Included — bare wires on end, push/crimp terminal connections (no tools needed) California Title 20 ✅ Compliant Country of Origin Made in USA Warranty 1 year manufacturer warranty ⚡ Electrical Requirements Electrical Spec Low Speed Medium Speed High Speed Voltage 115V 115V 115V Frequency 60 Hz 60 Hz 60 Hz Amperage 0.43A 0.64A 0.95A Wattage 47W 73W 110W Requirement Detail Speed Selection Switch on top of motor Power Cord Included in kit — bare wires, push/crimp terminals Phase Single Phase ⚠️ Hot tubs require GFCI (Ground Fault Circuit Interrupter) protection. ⚠️ A dedicated circuit is required — do not share with other appliances. ⚠️ This pump is 115V ONLY. If you need a 230V version, see the Grundfos 10-0138-KIT (230V 3-speed universal kit). �� Compatibility Guide What This Kit Replaces The Grundfos Universal Kit 99575701P1 is designed to replace practically every circulation pump used in low-flow heater spa systems, including: Laing Circulation Pumps: Laing Model Connection Notes Laing E5 (74427 / SilentFlo 5000) 3/4″ barb Hot Spring / Caldera / Tiger River Laing E5 (E5-NCHNNNN3W-10) 3/4″ barb Various spa brands Laing E10 (73989) 3/4″ barb 115V, 3/4″ barb, 4′ bare cord Laing E10 (74069) 1″ barb 115V, 1″ barb Laing SM909 series 3/4″ barb All SM909 variants Laing SM1212 series Various All SM1212 variants Laing SM-303 Various Older model Sundance / Jacuzzi: Part Number Notes 6000-314 Sundance/Jacuzzi circ pump — direct replacement 6500-460 Sundance/Jacuzzi variant 6500-460NA North America variant 6000-125NA Current model 6000-125E Export variant 6500-035 Sundance variant 6500-125 Sundance variant HydroQuip: Part Number Notes 10-0102-K HydroQuip circ pump kit 10-0121-K HydroQuip variant 10-0139-K Same pump, HydroQuip part number (pump only) 10-0139-KIT Same pump with kit, HydroQuip part number Other Brands / Cross-References: Part Number Brand / Notes 01512-86 Cross-reference 1039801 Cross-reference 39586 Cross-reference 130172 Cross-reference 34-601-1000 Distributor 73349 Laing variant 73979 Laing variant 6050U0015 Laing / Grundfos variant 6050U0016 Laing / Grundfos variant 6080U0007 Laing / Grundfos variant 6321.9 Dimension One (D1) variant 6496.9 Dimension One (D1) variant 6602.9 Dimension One (D1) variant 6603.9 Dimension One (D1) variant LHB07100139 Cross-reference UPS15-65RUES Grundfos model designation SM-909 Laing SM-909 series Watkins Silent-Flo 5000 Hot Spring / Caldera / Tiger River Also Replaces These Pump Types (with included adapters) Waterway Tiny Might — 3/4″ or 1″ barb models (with included adapters) Other Grundfos spa circ pumps — 43 Series and earlier models Any 3/4″ or 1″ barb spa circulation pump used in a low-flow heater system Grundfos Universal Kit Family Voltage Part Number Notes 115V (THIS KIT) 99575701P1 3-speed, 3/4″ barb, with universal plumbing kit 230V 10-0138-KIT 3-speed, 3/4″ barb, with universal plumbing kit ��️ Installation Requirements What’s in the Box Item Included Notes Grundfos 3-speed circulation pump ✅ Yes With speed selector switch on motor Unions ✅ Yes Compression union connections Fittings and elbows ✅ Yes Universal plumbing adapters 3/4″ barb connections ✅ Yes Standard connection 1″ barb adapters ✅ Yes For 1″ plumbing applications Power cord ✅ Yes Bare wires on end, push/crimp terminal connections Spa foot mounting kit ✅ Yes Universal mounting hardware Mounting Requirement Specification Mounting Position Universal base — rotatable to fit any existing space Footprint Same as Laing E5 and E10 pumps Base Solid, level surface Location Sheltered — protected from frost, rain, direct sun, and dust Access Allow space for unions and speed selector switch Plumbing Connection Size Notes Inlet 3/4″ barb (1″ barb adapter included) Rotating volute — set at any angle Outlet 3/4″ barb (1″ barb adapter included) Rotating volute — set at any angle Unions Included Compression type Volute Adjustment The rotating volute allows you to set the inlet and outlet at any rotation angle. This means the pump can be oriented to match your existing plumbing without cutting or re-routing pipes. Installation Notes ⚠️ START ON HIGH SPEED: When first started or after a long shutdown, start the pump on speed 3 (high) and then adjust to the regular setting. The shaft may rotate slowly at first until water penetrates the bearings. ⚠️ Pump must be installed below water level (flooded suction) — never run pump dry. ⚠️ SHELTERED LOCATION REQUIRED — protect from frost, rain, direct sun, and dust. ⚠️ GFCI protection is required by the NEC for all hot tub and spa installations. ⚠️ Ensure proper grounding and bonding per NEC requirements. ⚠️ Power cord uses push/crimp terminal connections — no tools needed for terminal connections, but all electrical work must comply with NEC and local codes. �� Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Around unions and plumbing connections Inspect barb connections Monthly Ensure hose clamps are tight Verify pump is running Weekly Listen for quiet hum; check water flow Check speed setting As needed Adjust speed to match spa flow requirements Inspect mounting Quarterly Ensure base is secure and level Inspect power cord Quarterly Check for damage or wear Warning Signs — Replace Pump If: Pump does not start or hum but produces no flow Unusual noise (grinding, clicking, vibration) GFCI or breaker trips repeatedly Reduced water flow through heater Pump housing is cracked or leaking at unions Wet Rotor Advantage Unlike conventional spa circulation pumps with mechanical shaft seals, the Grundfos wet rotor design has no shaft seal to leak or replace. The rotor runs directly in the pumped liquid, which lubricates the bearings and eliminates the most common failure point in spa circulation pumps. This means: No seal replacement required — the most common circ pump repair is eliminated No seal leaks — the primary cause of circ pump failure is eliminated Longer service life — fewer wearing parts means longer pump life Truly maintenance-free — no scheduled internal maintenance needed �� Ideal Applications Application Suitability Notes ♨️ 24/7 spa circulation and filtration ✅ Yes — Primary use Ultra-low energy, whisper-quiet ♨️ Low-flow spa heater operation ✅ Yes — Primary use Designed specifically for low-flow heater systems ♨️ Replacement for Laing E5 (Hot Spring/Caldera/Tiger River) ✅ Yes — Direct Same footprint, included adapters ♨️ Replacement for Laing E10 (3/4″ or 1″ barb) ✅ Yes — Direct Same footprint, included adapters ♨️ Replacement for Sundance/Jacuzzi 6000-314 ✅ Yes — Direct Verified compatible ♨️ Replacement for Waterway Tiny Might ✅ Yes With included adapters ♨️ Replacement for HydroQuip 10-0139-K ✅ Yes — Same pump HydroQuip designation for this Grundfos pump ♨️ Any 3/4″ or 1″ barb low-flow circ pump ✅ Yes — Universal Kit includes all needed adapters ♨️ Spas needing adjustable flow rate ✅ Yes 3-speed motor matches specific flow demands ♨️ High-flow heater systems (40 GPM) ❌ No Use Gecko CMHP or similar high-flow circ pump ♨️ 1-1/2″ plumbing applications ❌ No This pump uses 3/4″ / 1″ barb connections ♨️ 230V applications ❌ No Use Grundfos 10-0138-KIT (230V version) ❓ Frequently Asked Questions Q: What speeds does this pump have? A: Three speeds — Low (0.43A / 47W), Medium (0.64A / 73W), and High (0.95A / 110W). The speed selector switch is located on top of the motor. Q: What connections does this pump use? A: The pump has 3/4″ barb connections and the kit includes 1″ barb adapters, making it compatible with both 3/4″ and 1″ spa plumbing. Q: Will this replace my Laing E5 or E10 pump? A: Yes — the Grundfos Universal Kit mounts in the same footprint as Laing pumps and includes all fittings and adapters needed for a complete installation. Many spa professionals consider the Grundfos a superior replacement for Laing circ pumps. Q: Will this replace my Sundance / Jacuzzi circulation pump? A: Yes — this kit is a verified replacement for Sundance/Jacuzzi part numbers 6000-314, 6500-460, 6000-125NA, and related models. Q: Is a power cord included? A: Yes — the kit includes a power cord with bare wires on the end. Terminal connections inside the junction box are push/crimp style — no tools needed for the terminal connections. Q: Are unions included? A: Yes — the kit includes unions, fittings, elbows, barb adapters (3/4″ and 1″), and spa foot mounting hardware. Everything needed for installation is in the box. Q: Does this pump have a shaft seal? A: No — the Grundfos uses a wet rotor design where the rotor runs in the pumped liquid. There is no mechanical shaft seal to leak or replace. This eliminates the most common failure point in spa circulation pumps. Q: What speed should I set my pump to? A: Start on high speed (speed 3) for initial start-up or after a long shutdown. Then adjust to the speed that provides adequate flow for your spa’s heating system. Most spas operate well on medium or low speed, which saves energy while maintaining proper flow. Q: Is this pump 115V or 230V? A: 115V only. If you need a 230V version, order the Grundfos 10-0138-KIT (230V 3-speed universal kit). Q: How quiet is this pump? A: Extremely quiet — Grundfos pumps are known for near-silent operation. The wet rotor design and precision engineering deliver whisper-quiet performance ideal for 24/7 continuous duty. Q: Is this pump Made in USA? A: Yes — manufactured in the USA by Grundfos. Q: Is this California Title 20 Compliant? A: Yes — this pump meets California Title 20 energy efficiency requirements. Q: Can I rotate the volute to match my plumbing? A: Yes — the rotating volute allows you to set the inlet and outlet at any angle to match your existing plumbing configuration. No replumbing necessary. Q: Do I need a GFCI breaker? A: Yes — GFCI protection is required by the NEC for all hot tub and spa installations. �� Why Choose the Grundfos Universal Kit ✅ Truly Universal — Replaces practically every circ pump used in low-flow heater spa systems ✅ Complete Kit — Everything in the box: pump, unions, fittings, elbows, 3/4″ and 1″ barb adapters, cord, mounting hardware ✅ 3-Speed Motor — Adjustable flow to match your spa’s specific demands — no other circ pump offers this flexibility ✅ No Shaft Seal — Wet rotor design eliminates the most common failure point in spa circ pumps ✅ Whisper-Quiet — Near-silent operation for 24/7 continuous duty ✅ 40% Less Energy — Than larger circulation pumps — just 47W on low speed ✅ Rotating Volute Universal Base — Fits any plumbing configuration in any existing equipment compartment ✅ Same Footprint as Laing — True drop-in replacement for the most popular spa circ pumps ✅ Made in USA — By Grundfos, a world-leading pump manufacturer ✅ California Title 20 Compliant — Meets energy efficiency standards ✅ Grundfos Quality — Industry-leading reliability backed by 1-year manufacturer warranty ✅ Professional Preferred — Many spa technicians consider the Grundfos superior to Laing for reliability and longevity �� Why Buy From Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ 230V version (10-0138-KIT) also available ✅ Replacement fittings, adapters, and 3/4″ to 1″ conversion parts in stock ✅ Dedicated customer service team ✨ Summary The Grundfos Universal Kit 99575701P1 is the ultimate universal spa circulation pump replacement — a 3-speed, 115V, Made-in-USA pump packaged as a complete kit with everything needed for installation: pump, unions, fittings, elbows, 3/4″ and 1″ barb adapters, power cord, and spa foot mounting hardware. The 3-speed motor (Low 0.43A/47W, Medium 0.64A/73W, High 0.95A/110W) lets you match flow to your spa’s specific demands. Wet rotor design eliminates the mechanical shaft seal — the most common failure point in spa circ pumps — for truly maintenance-free, whisper-quiet operation. Rotating volute and universal base fit any plumbing configuration in any existing equipment compartment, mounting in the same footprint as Laing E5 and E10 pumps. Replaces Laing E5/E10/SM909, Sundance/Jacuzzi 6000-314, HydroQuip 10-0139-K, Waterway Tiny Might, and dozens of other circ pump models. California Title 20 Compliant. 1-year manufacturer warranty. Order now at Parts4Tubs. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Grundfos Universal Kit 3-Speed Spa Circulation Pump — 115V, 3/4″ Barb | 99575701P1
