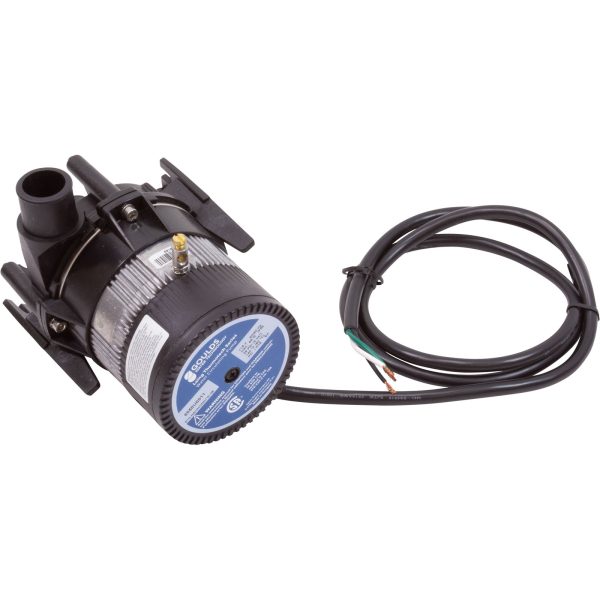

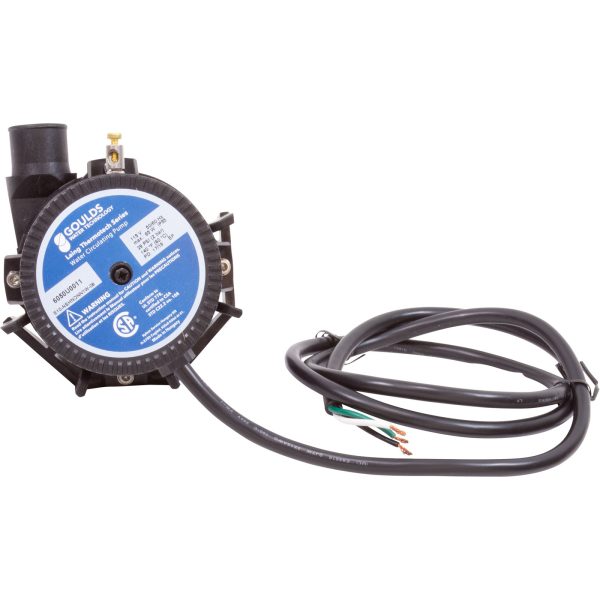

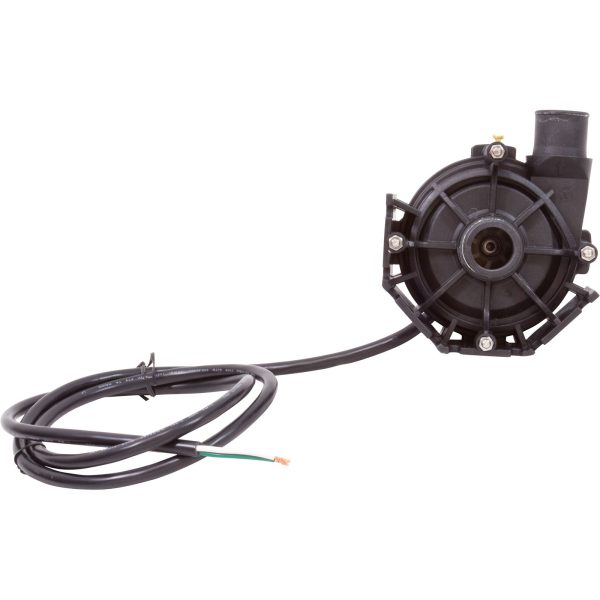

Laing E-10 EcoCirc 6050U0011 Spa Circulation Pump – 115V 1″ Barb

$ 91.52

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

�� Laing E-10 EcoCirc 6050U0011 Spa Circulation Pump – 115V 1″ Barb Advanced ECM technology delivers whisper-quiet, clog-resistant circulation with built-in dry run protection �� Product Overview The Laing E-10 EcoCirc 6050U0011 is a 115V single-speed spa circulation pump featuring advanced Electronically Commutated Motor (ECM) technology that consumes up to 40% less energy than the previous SM909 and SM1212 series it replaces. This is the current-production Laing circulation pump with 1″ barb connections and a 4-foot bare cord included, designed for continuous 24/7 spa water circulation. Built with a magnetically driven open impeller, the E-10 eliminates the traditional shaft seal — removing the number one failure point in conventional circulation pumps. The open impeller design is specifically engineered to resist clogging from debris, while the new 32-bit motor with side vents keeps the motor running cooler for extended life. Built-in dry run protection automatically safeguards the motor and pump if operated without water, and a soft start feature (approximately 3 seconds) reduces mechanical stress on every startup. The E-10 delivers up to 14 GPM flow rate with a maximum head of 20 feet — optimal for low-flow heater systems in spas and hot tubs. Used as OEM equipment in major brands including Hot Springs, Dimension One, Cal Spas, Jacuzzi, and many others. The built-in mounting bracket allows installation in 4 different discharge angles, and the compact, lightweight design (under 5 lbs) fits tight equipment compartments with ease. ⭐ Key Features ✅ ECM Technology — Electronically Commutated AC/DC/AC Spherical Motor consumes 40% less energy than previous SM909/SM1212 series ✅ 115V / 0.61A / 70W — Ultra-low power consumption for pennies-per-day 24/7 operation, delivers 98W of performance for only 70W of input power ✅ 14 GPM Maximum Flow — Optimal circulation for low-flow heater systems with 20 ft maximum head ✅ Magnetically Driven Open Impeller — NO shaft seal to leak or replace, plus clog-resistant open design for trouble-free operation ✅ Built-In Dry Run Protection — Automatically protects motor and pump if operated without water, preventing costly damage ✅ Soft Start Technology — Approximately 3-second soft start reduces mechanical stress on every startup cycle ✅ 1″ Barb Connections — Center suction and side discharge with 1″ barb inlet and outlet ✅ 4-Foot Bare Cord INCLUDED — Ready for direct wiring to spa control system ✅ 32-Bit Motor with Side Vents — Advanced motor design with improved cooling for extended pump life ✅ 4 Discharge Angle Positions — Built-in mounting bracket allows installation in 4 different orientations ✅ 50/60 Hz Compatible — Works on both domestic (60 Hz) and international (50 Hz) electrical systems ✅ 1-Year Manufacturer Warranty — Full coverage from Laing Thermotech / Xylem ⚙️ Technical Specifications Specification Value Manufacturer Laing Thermotech (Xylem) Series E-10 EcoCirc Model E10-NSHNNN1W-19 Primary Part Number 6050U0011 Alternate Part Number 74069 UPC 733886740691 Pump Type Spa Circulation Pump — 24/7 Continuous Duty Motor Type Electronically Commutated AC/DC/AC Spherical Motor (ECM) Impeller Type Magnetically Driven, Open — Clog Resistant Shaft Seal NONE — Magnetically Driven (No Seal Required) Voltage 115V Frequency 50/60 Hz (Domestic and International) Phase Single Phase Amperage 0.61A Wattage 70W Input (Delivers 98W Performance) RPM 3,100 Speed Single Speed Maximum Flow Rate 14 GPM Maximum Head 20 ft Maximum Working Pressure 50 PSI Maximum Temperature 140°F (60°C) Rotation Counter-Clockwise (Viewed from Motor End) Suction Connection 1″ Barb — Center Suction Discharge Connection 1″ Barb — Side Discharge Volute Fastening 4 Bolts and 4 Nuts Wet End Material Thermoplastic Discharge Positions 4 Angles via Built-In Mounting Bracket Dimensions (L × H × W) 6″ × 4.88″ × 4.31″ Weight Under 5 lbs Noise Level Under 50 dB Power Cord 4-Foot Bare Cord INCLUDED Mounting Bracket INCLUDED Protection Features Dry Run Protection, Automatic Overload Protection, Soft Start (~3 sec) Warranty 1-Year Manufacturer Warranty ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 115V (110V/120V same standard) Frequency 50/60 Hz Phase Single Phase Amperage 0.61A Wattage 70W Input Power Cord 4-Foot Bare Cord INCLUDED Wiring 3 Wires: Hot, Neutral, Ground ⚠️ CRITICAL — 115V ONLY: This pump operates on 115V ONLY. Do NOT connect to a 230V circuit. Using the wrong voltage will damage the motor. For 230V spas, order the Laing E-10 230V model (6050U0010 for 1″ barb or 6050U0016 for 3/4″ barb). �� Compatibility Guide Laing E-10 Family — Connection Variants Part Number Voltage Connection Cord 6050U0011 (This Pump) 115V 1″ Barb 4 ft Bare Cord 6050U0015 115V 3/4″ Barb 4 ft Bare Cord 73989 115V 3/4″ Barb 4 ft Bare Cord 6050U0013 115V 3/4″ MPT 4 ft Bare Cord 6050U0010 230V 1″ Barb 4 ft Bare Cord 73979 230V 3/4″ Barb 4 ft Bare Cord 6050U0016 230V 3/4″ Barb 4 ft Bare Cord 73999 230V 3/4″ MPT 4 ft Bare Cord Laing E-10 vs Grundfos 43 Series Comparison Feature Laing E-10 6050U0011 (This Pump) Grundfos 59896291 Voltage 115V 115V Amperage 0.61A 0.74A Wattage 70W 85W Max Flow Rate 14 GPM 12-18 GPM Max Head 20 ft See manual Connections 1″ Barb 1″ Barb Motor Type ECM (Electronically Commutated) Wet Rotor Shaft Seal None (Magnetic Drive) None (Wet Rotor) Dry Run Protection Yes — Built In No Soft Start Yes (~3 sec) No Cord Included Yes — 4 ft Bare No Volute Adjustment 4 Discharge Angles Rotating (Any Angle) 50/60 Hz Yes — Both 60 Hz Warranty 1-Year 1-Year �� The Laing E-10 offers advanced ECM technology with built-in dry run protection and soft start. The Grundfos 43 Series offers a fully rotating volute for unlimited plumbing angles. Both eliminate shaft seals through different motor designs. SM909 and SM1212 Series — Replaced By E-10 The Laing E-10 directly replaces ALL previous Laing SM909 and SM1212 series circulation pumps, consuming up to 40% less energy while providing equal or better flow rates. Previous Model Flow Rate Replaced By SM-909-NH-14 (6509, 6848) 6 GPM E-10 6050U0011 (14 GPM) SM-909-NH-26 (6860, 6920) 9.5 GPM E-10 6050U0011 (14 GPM) SM-909-NH-18 (6865, 6921) 11 GPM E-10 6050U0011 (14 GPM) SM-1212-NH-26 (6958, 6975) 12 GPM E-10 6050U0011 (14 GPM) SM-1212-NH-21 (6956) 18 GPM E-10 6050U0011 (14 GPM) Compatible Spa Brands (OEM Equipment) The Laing E-10 is used as original factory equipment in spas from: ♨️ Hot Springs (Watkins Manufacturing) ♨️ Dimension One (D1) ♨️ Cal Spas ♨️ Jacuzzi ♨️ Sundance ♨️ And many other major spa manufacturers �� Alternate Part Numbers & Cross-References Primary Part Numbers Part Number Description 6050U0011 Laing Primary Part Number E10-NSHNNN1W-19 Laing Full Model Number E10-NSHN1W-19 Laing Model Number (Abbreviated) E10-NSHNDNN1W-08 Laing Model Number (Alternate) 74069 Laing Alternate Part Number 733886740691 UPC Code 10-0122 HydroQuip Part Number 10-0122-K HydroQuip Kit Version 10-0123 HydroQuip Part Number LHB07100143 HydroQuip Internal Code 1-00-0199 Allied Innovations 1-00-0199A Allied Innovations Previous Laing Models (Replaced By E-10) Part Number Model / Notes SM-909-NH-14 SM909 Series — 6 GPM SM-909-NH-18 SM909 Series — 11 GPM SM-909-NH-26 SM909 Series — 9.5 GPM SM-1212-NH-21 SM1212 Series — 18 GPM SM-1212-NH-26 SM1212 Series — 12 GPM SM-303 SM303 Series LAISM909NH142 SM909 Model Code LAISM909NH1834 SM909 Model Code LAISM909NH26120 SM909 Model Code LAISM1212NH211 SM1212 Model Code LAISM1212NH2612 SM1212 Model Code SM1212NH-21-120 SM1212 Model Code SM909NH SM909 Model Code Dimension One (D1) Cross-References Part Number Notes 6425.9 Dimension One Spa Circ Pump 64259 Dimension One (Alternate Format) Sundance / Jacuzzi Cross-References Part Number Notes 6509 SM-909-NH-14 — 6 GPM 6848 SM-909-NH-14 6860 SM-909-NH-26 — 9.5 GPM 6865 SM-909-NH-18 — 11 GPM 6920 SM-909-NH-26 6921 SM-909-NH-18 6956 SM-1212-NH-21 — 18 GPM 6957 SM-1212-NH-19 6958 SM-1212-NH-26 — 12 GPM 6975 SM-1212-NH-26 7165 SM-909-NH-14 Other Industry Cross-References Part Number Notes 313663 Industry Cross-Reference 611594 Industry Cross-Reference 901112 Industry Cross-Reference 9333-0 Industry Cross-Reference 9338-30 Industry Cross-Reference 9338-31 Industry Cross-Reference 9339-04 Industry Cross-Reference 733886695601 UPC Cross-Reference ��️ Installation Requirements What’s in the Box ✅ Laing E-10 EcoCirc Circulation Pump ✅ 4-Foot Bare Cord (Pre-Wired) ✅ Built-In Mounting Bracket ❌ Unions / Fittings — NOT INCLUDED (Order Separately) Mounting Requirement Specification Mounting Position Horizontal — Motor must remain dry Bracket Built-in mounting bracket with 4 discharge angle positions Base Solid, level surface Ventilation Side vents must remain clear for motor cooling Access Sufficient clearance for service and maintenance Plumbing Connection Size Suction 1″ Barb — Center Discharge 1″ Barb — Side Volute Fastening 4 Bolts and 4 Nuts Installation Notes ⚠️ Pump must be installed below water level (flooded suction) to operate properly. ⚠️ Built-in dry run protection will shut down the pump if operated without water — however, always ensure flooded suction before starting. ⚠️ 4-foot bare cord requires wiring to spa control system — connect hot, neutral, and ground wires per your spa’s wiring requirements. ⚠️ Soft start feature provides approximately 3-second gradual startup — this is normal operation, not a fault. ⚠️ Counter-clockwise rotation when viewed from the motor end — do not attempt to reverse. ⚠️ GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. ⚠️ Keep motor side vents clear of debris for proper cooling. ⚠️ 115V ONLY — verify your spa’s voltage before ordering. For 230V, order 6050U0010 (1″ barb) or 6050U0016 (3/4″ barb). �� Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Around barb connections and hose clamps Inspect hose clamps Monthly Tighten if needed Check flow rate Monthly Reduced flow indicates blockage Inspect motor side vents Quarterly Keep clear of debris for cooling Verify quiet operation Quarterly Unusual noise indicates bearing wear Check mounting bracket Quarterly Tighten if loose Clean open impeller area As Needed Remove any debris if flow decreases Warning Signs — Replace Pump If: Unusual noise (grinding, humming, rattling) Motor overheating excessively Reduced or no water flow despite clear suction Motor trips breaker repeatedly Pump fails to start after soft start period Dry run protection activates repeatedly with water present Magnetically Driven Impeller — NO Seal Replacement Needed The Laing E-10 uses a magnetically driven impeller with NO mechanical shaft seal. Unlike conventional shaft-seal pumps (Gecko CMHP, Waterway Iron Might, Balboa) where the seal is the most common failure point, the E-10’s magnetic drive completely eliminates this component. There is no seal to leak, wear out, or replace — ever. �� Ideal Applications Application Suitability Notes ♨️ 24/7 Spa Circulation ✅ Yes — Primary Use Continuous duty low-flow heater circulation ♨️ Low-Flow Heater Systems ✅ Yes — Primary Use 14 GPM max flow, 20 ft max head ♨️ Replacement Laing SM909 / SM1212 ✅ Yes — Direct Replacement Replaces ALL SM909 and SM1212 models ♨️ Hot Springs / Watkins Spas ✅ Yes OEM factory equipment ♨️ Dimension One (D1) Spas ✅ Yes Replaces 6425.9 ♨️ Jacuzzi / Sundance Spas ✅ Yes Verified cross-reference ♨️ Cal Spas ✅ Yes Verified OEM replacement ♨️ Ozone Treatment Systems ✅ Yes Compatible with ozone injection ♨️ Saltwater Spa Systems ✅ Yes Saltwater compatible ♨️ Chilling Systems ✅ Yes Compatible application �� 1-1/2″ MBT Plumbing ❌ No Use Gecko Aqua-Flo CMHP for 1-1/2″ connections �� 230V Spa ❌ No — 115V Only Use 6050U0010 (1″ barb) or 6050U0016 (3/4″ barb) for 230V �� High-Flow 40 GPM ❌ No Use Gecko CMHP for high-flow requirements ❓ Frequently Asked Questions Q: What is the flow rate of this pump? A: Maximum 14 GPM with a maximum head of 20 feet. Designed for continuous 24/7 low-flow heater spa circulation. Q: What is the amperage draw? A: 0.61A at 115V, consuming just 70W of input power while delivering 98W of performance through ECM technology. Q: Does this pump come with a power cord? A: Yes. A 4-foot bare cord is included and pre-wired to the pump. Connect the hot, neutral, and ground wires to your spa’s control system. Q: What size are the connections? A: 1″ barb inlet (center suction) and 1″ barb outlet (side discharge). For spas with 3/4″ plumbing, consider the Laing E-10 model 6050U0015 or 73989 with 3/4″ barb connections instead. Q: Does this replace the Laing SM909 and SM1212 series? A: Yes. The E-10 directly replaces ALL SM909 and SM1212 series models while consuming up to 40% less energy and providing equal or better flow rates. Q: Does this pump have a shaft seal? A: No. The E-10 uses a magnetically driven impeller that completely eliminates the mechanical shaft seal. There is no seal to leak, wear out, or replace. Q: What is dry run protection? A: The E-10 has built-in electronics that automatically detect when the pump is running without water and shut it down to prevent motor and pump damage. This protects against accidental dry operation. Q: What is the soft start feature? A: The pump gradually ramps up to full speed over approximately 3 seconds on every startup. This reduces mechanical stress and extends pump life. The brief startup delay is normal operation, not a fault. Q: What spa brands use this pump? A: The Laing E-10 is OEM equipment in Hot Springs (Watkins), Dimension One (D1), Cal Spas, Jacuzzi, Sundance, and many other major spa brands. Q: Can I adjust the discharge angle? A: Yes. The built-in mounting bracket allows installation in 4 different discharge positions to match your existing plumbing configuration. Q: What voltage does this pump require? A: 115V ONLY (also referenced as 110V or 120V — same standard). Works on both 50 Hz and 60 Hz. For 230V, order the Laing E-10 model 6050U0010 (1″ barb) or 6050U0016 (3/4″ barb). Q: Is this pump quiet? A: Yes, extremely. The E-10 operates at under 50 dB — virtually silent. The ECM motor with soft start technology contributes to whisper-quiet operation. Q: What is the difference between this pump and the Grundfos 59896291? A: Both are 115V, 1″ barb circulation pumps with no shaft seal. The Laing E-10 offers ECM technology, dry run protection, and soft start. The Grundfos offers a fully rotating volute (any angle vs 4 positions). The Grundfos is typically more affordable. Both are excellent choices — the Laing offers more built-in protection features. Q: Do I need a GFCI breaker? A: Yes. GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. Q: What warranty is included? A: 1-year manufacturer warranty from Laing Thermotech / Xylem. Contact Parts4Tubs for full warranty terms and support. �� Why Choose the Laing E-10 EcoCirc 6050U0011 ✅ ECM Motor Technology — Advanced electronically commutated motor consumes 40% less energy than the SM909/SM1212 series it replaces ✅ Built-In Dry Run Protection — Automatic electronic protection prevents costly motor and pump damage from operating without water ✅ Soft Start Technology — Gradual 3-second startup reduces mechanical stress and extends pump life ✅ Magnetically Driven Open Impeller — NO shaft seal to leak or replace, PLUS clog-resistant open design ✅ Whisper-Quiet Operation — Under 50 dB for virtually silent running that won’t disturb spa enjoyment ✅ 98W Performance from 70W Input — ECM technology delivers more flow per watt than conventional circ pumps ✅ 4-Foot Bare Cord INCLUDED — Ready for immediate installation, no separate cord purchase required ✅ 50/60 Hz Compatible — Works on both domestic and international electrical systems ✅ Proven OEM Choice — Factory-installed in Hot Springs, Dimension One, Cal Spas, Jacuzzi, and other major brands ✅ Compact and Lightweight — Under 5 lbs with 4 discharge angle positions for flexible installation ✅ Laing Thermotech / Xylem Quality — Decades of proven reliability in spa circulation technology ✅ 1-Year Manufacturer Warranty — Full coverage for peace of mind �� Why Buy from Parts4Tubs ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing ✅ Full warranty support ✅ Hassle-free returns ✅ Complete Laing E-10 family in stock (115V and 230V, all connection types) ✅ Dedicated customer service team The Laing E-10 EcoCirc 6050U0011 is a 115V spa circulation pump with advanced ECM technology, delivering up to 14 GPM while consuming just 0.61A and 70W. Featuring built-in dry run protection, soft start technology, a magnetically driven clog-resistant open impeller with no shaft seal, and a 4-foot bare cord included, this pump replaces all previous Laing SM909 and SM1212 series models. Used as OEM equipment in Hot Springs, Dimension One, Jacuzzi, and many other major spa brands. Order from Parts4Tubs today for fast shipping and expert support. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Laing E-10 EcoCirc 6050U0011 Spa Circulation Pump – 115V 1″ Barb
