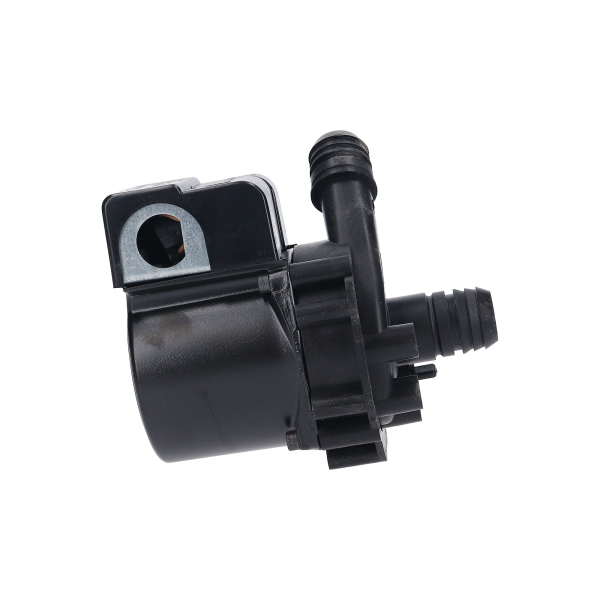

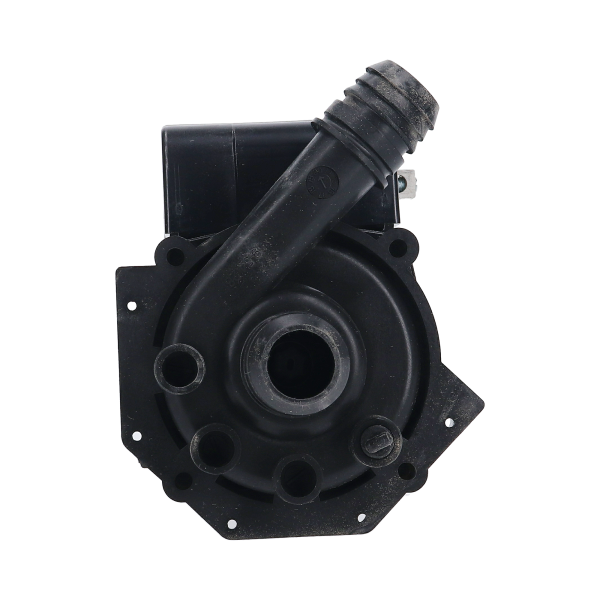

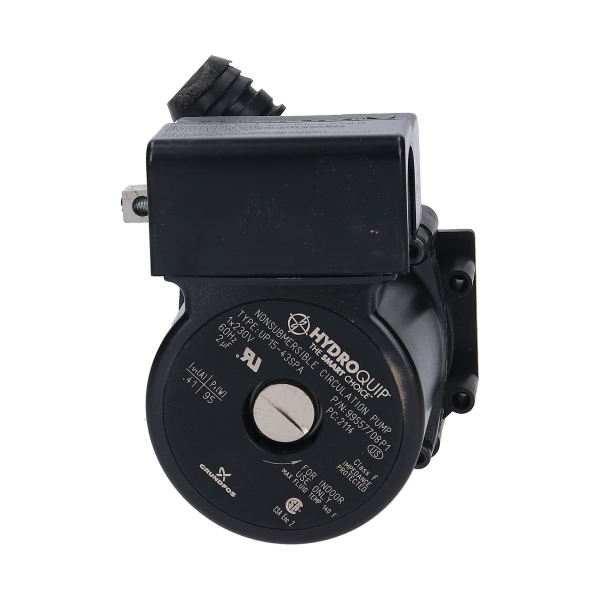

Grundfos 43 Series Spa Circulation Pump – 230V Single Speed 1″ Barb

$ 90.74

Additional Info

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping

Category:

$ USD

₵ GHS
$ USD
£ GBP

♨️ Grundfos 43 Series Spa Circulation Pump – 230V Single Speed 1″ Barb Energy-efficient 230V circulation for 24-hour spa filtration at ultra-low amperage �� Product Overview The Grundfos 43 Series 230V (SKU: PU602394) is the high-voltage variant of Grundfos’ proven spa circulation pump, designed specifically for 230V/60Hz hot tub systems. Drawing just 0.35 amps, this ultra-efficient single-speed circulator delivers 12 to 18 GPM of consistent water flow through 1″ barbed connections — making it one of the lowest-draw circulation pumps available for portable spas. Built by Grundfos — a global leader in pump technology — the 43 Series features the same redesigned rotating volute found on the 115V model, allowing installation in virtually any plumbing configuration. Its near-silent operation, compact footprint, and rock-solid reliability have made it a go-to replacement pump for spa technicians across the country. This 230V version is the direct replacement for the earlier Grundfos UP15-38SPA 230V and also serves as a popular substitute for Laing and Waterway 230V circulation pumps using 1″ barb plumbing connections. ⭐ Key Features ✅ Grundfos 43 Series Circulator (230V) – World-renowned Grundfos quality engineered for 230V spa systems ✅ 12 to 18 GPM Flow Rate – Consistent water movement for effective 24-hour filtration and heat distribution ✅ Ultra-Low 0.35A Draw – 230V operation means half the amperage of the 115V model — minimal electrical load ✅ Whisper-Quiet Operation – Near-silent performance for undisturbed spa enjoyment ✅ Rotating Adjustable Volute – Redesigned wet end rotates to accommodate virtually any plumbing configuration ✅ 1″ Barb Connections – Standard 1″ barbed intake and discharge for secure connection to vinyl tubing ✅ Side Discharge Design – Discharge exits from the side of the pump body ✅ Compact and Lightweight – Space-saving footprint fits tight equipment compartments ✅ Includes Mounting Bracket – Grundfos mounting bracket allows flexible pump positioning ✅ Continuous Duty Rated – Designed specifically for 24/7 spa circulation operation ✅ Replaces Multiple Brands – Drop-in replacement for Laing, Waterway, and other 230V circ pump brands with 1″ barb connections ✅ 36-Month Manufacturer Warranty – Grundfos factory warranty from date of manufacture �� Technical Specifications Specification Value SKU PU602394 Manufacturer Grundfos Series 43 Series Pump Type Circulation Grundfos Type UP15-43SPA (replaces UP15-38SPA) Grundfos Product Code PUGR1543220S Speed Settings Single Speed Voltage 230V Frequency 60 Hz Amperage 0.35A Flow Rate 12–18 GPM Suction Port 1″ Barb Discharge Port 1″ Barb Discharge Position Side Barb OD Approx. 1.10″ Port Inside Diameter Approx. 3/4″ Volute Rotating/Adjustable Cord Not Included (Hardwire) Mounting Includes Grundfos mounting bracket Warranty 36 months from date of manufacture ⚡ Electrical Requirements Electrical Spec Requirement Supply Voltage 230V Frequency 60 Hz Phase Single Phase Full Load Amps 0.35A Connection Hardwire (no cord included) Wiring Two hot wires (white) ground (green) ⚠️ IMPORTANT ELECTRICAL SAFETY INFORMATION: Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection as mandated by the NEC. A dedicated circuit is required — do not share the circuit with other appliances. This pump does not include a power cord. It must be hardwired to your spa control system by a licensed electrician. This is a 230V pump. If your spa uses a 115V system, you need the Grundfos 43 Series 115V model (31842 / 59896291 / PUGR1543115S) instead. Connecting to incorrect voltage will damage the pump and may create a safety hazard. On the 230V model, both white wires are hot and the green wire is ground. Verify wiring configuration with your spa control system documentation. �� Compatibility Guide Connection Configuration Specification This Pump Suction 1″ Barb Discharge 1″ Barb (Side) Barb OD Approx. 1.10″ Tubing Size 1″ inside diameter vinyl tubing Volute Rotating — adjustable for multiple plumbing configurations Stepping Up From 3/4″ Plumbing If your existing spa uses 3/4″ vinyl tubing, you can upgrade to this 1″ barb pump by using barb-to-barb adapter fittings (such as part number 1429-131, 1″ to 3/4″) available from plumbing supply stores, along with appropriate 3/4″ ID clear tubing (1″ OD) as needed. Direct Replacement For This pump directly replaces the following Grundfos 230V models: Grundfos UP15-38SPA (230V versions) Grundfos UP15-43SPA (230V versions) Grundfos 59896865 Grundfos 59896137 Grundfos 59896353 Cross-Compatible With The Grundfos 43 Series 230V is widely used as a replacement for other 230V circulation pumps with 1″ barb connections: Laing E10 230V variants — with matching barb size Waterway Tiny Might 230V (300-9020) — with matching barb size Other 230V 1″ barb circulation pumps of similar flow ⚠️ Always verify your existing pump’s connection type (barb vs. union vs. threaded), connection size, and voltage before ordering a replacement. Voltage Variants — 115V vs. 230V Model Voltage Amperage Key Part Numbers 31842 / 59896291 115V / 60Hz 0.71A PUGR1543115S, 10-0134 PU602394 / 59896292 (this pump) 230V / 60Hz 0.35A PUGR1543220S, 10-0135 ⚠️ CRITICAL: These two pumps look identical but are NOT interchangeable. Connecting a 230V pump to a 115V supply (or vice versa) will damage the motor. Always confirm your spa’s voltage before ordering. Alternate Part Numbers This pump may also be referenced under the following part numbers: PUGR1543220S PUGR1543220S (Cal Spas) 59896292 59896353 59896137 PU602394 10-0135 (HydroQuip) 1-00-0185 34-430-2055 1030007 GG92009 9333-02 632514098893 92009 PMPUP1538SPA230 15-178-6292 ��️ Installation Requirements Mounting Requirement Specification Mounting Position Flexible — mounting bracket included Base Solid, level surface Ventilation Maintain adequate clearance around the pump body for heat dissipation Access Allow clearance for plumbing connections and drain plug Plumbing Connection Size Suction 1″ Barb Discharge 1″ Barb (Side) Tubing 1″ ID vinyl tubing Installation Notes ⚠️ DRAIN PLUG: Grundfos ships these pumps with the drain plug installed loosely. You must hand-tighten the drain plug before installing the pump. Do not over-tighten — hand-tight only. ⚠️ Do not run the pump dry. Always ensure the pump casing is filled with water before starting. ⚠️ The rotating volute allows the discharge to be oriented in multiple directions for flexible plumbing configurations. Rotate the volute to align with your existing plumbing before securing. ⚠️ GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa installations. ⚠️ This is a hardwire pump — no power cord is included. A licensed electrician must connect the pump to your spa control system. ⚠️ On the 230V model, both white wires are hot leads and the green wire is ground. Do not assume standard residential color coding applies. ⚠️ When replacing a 3/4″ barb pump, use barb-to-barb adapters (such as part 1429-131) to step up to the 1″ barb connections. ⚙️ Maintenance Guide Routine Maintenance Task Frequency Notes Check for leaks Monthly Inspect barb connections and drain plug Inspect barb connections Monthly Ensure hose clamps are secure Verify drain plug tightness Quarterly Hand-tight only Check amperage draw Annually Should read approximately 0.35A on 230V Inspect mounting bracket Quarterly Tighten if vibration has loosened bolts Clean pump intake As needed Remove debris that may restrict flow Warning Signs — Consider Pump Replacement If: Unusual noise (grinding, humming, or buzzing) Water leaking from the pump body or connections Motor trips breaker repeatedly Noticeably reduced water flow Motor running excessively hot or failing to start Pump not maintaining circulation after priming �� Ideal Applications Application Suitability Notes ♨️ 24-Hour Spa Circulation (230V systems) ✅ Yes — Primary Use Designed specifically for continuous spa filtration on 230V ♨️ Spa Heating Circulation ✅ Yes Maintains consistent water flow through heating system ♨️ Chemical Distribution ✅ Yes Continuous movement ensures even sanitizer distribution ♨️ Ozone System Circulation ⚠️ Caution Do not introduce ozone directly to pump suction — air locking may occur ♨️ Replacement for Laing E10 230V ✅ Yes Popular upgrade/replacement with 1″ barb connections ♨️ Replacement for Waterway Tiny Might 230V ✅ Yes Compatible with 1″ barb plumbing systems at 230V ♨️ Cal Spa Applications ✅ Yes Listed under Cal Spas part number PUGR1543220S ♨️ Jet Pump Application ❌ No This is a low-flow circulation pump — it does not power therapy jets ♨️ 115V Spa Systems ❌ No Use the 115V model (31842 / 59896291) for 115V spas ❓ Frequently Asked Questions Q: What horsepower is this pump? A: The pump is listed at approximately 1/15 HP, drawing 0.35 amps at 230V. For replacement matching on 230V systems, use the amperage rating rather than HP, as horsepower ratings can vary slightly between sources. Q: Will this fit my hot tub? A: This pump uses 1″ barbed connections for vinyl tubing and requires 230V power. Check your existing circulation pump’s connection type, size, and voltage. If your current pump uses 1″ barbs on a 230V system, this is a direct fit. Q: What voltage does this pump require? A: 230V / 60Hz. This is NOT a 115V pump. If your spa uses 115V, you need the Grundfos 43 Series 115V model (31842 / 59896291). Using the wrong voltage will damage the motor. Q: Does this come with a power cord? A: No. This is a hardwire pump — no cord is included. A licensed electrician must wire the pump directly to your spa control system. Q: How do I wire this pump? A: On the 230V model, both white wires are hot leads and the green wire is ground. Always have a licensed electrician perform the wiring in accordance with your spa control system’s documentation and the NEC. Q: What is the flow rate? A: 12 to 18 GPM, depending on system resistance (plumbing length, fittings, elevation changes). Q: Can I use this as a replacement for a Laing E10? A: Yes, if your Laing was a 230V model with 1″ barb connections. The Grundfos 43 Series is a widely used and well-regarded replacement. Verify voltage and connection type before ordering. Q: What is the difference between this and the 115V model? A: The pumps are physically identical in size, connections, and flow performance. The only difference is electrical — this model runs on 230V at 0.35A, while the 115V model (31842) runs at 0.71A. They are NOT interchangeable. Q: What is the rotating volute feature? A: The redesigned volute can be rotated to position the discharge in multiple directions, allowing the pump to be installed in virtually any plumbing configuration without additional fittings or modifications. Q: Do I need to tighten the drain plug? A: Yes. Grundfos ships the pump with the drain plug installed loosely. You must hand-tighten the drain plug before installing the pump in your spa. Q: Can I use ozone with this pump? A: Do not introduce ozone directly to the pump suction, as air locking may occur. Route ozone injection downstream of the circulation pump. Q: What warranty is included? A: Grundfos provides a 36-month warranty from date of manufacture. Contact Parts4Tubs for full warranty terms and conditions. Q: Do I need a GFCI breaker? A: Yes. GFCI (Ground Fault Circuit Interrupter) protection is required by the National Electrical Code (NEC) for all hot tub and spa installations, including 230V systems. Q: Is this pump compatible with Cal Spas? A: Yes. This pump is referenced under Cal Spas part number PUGR1543220S and is used as a replacement in many Cal Spa models. ✅ Why Choose the Grundfos 43 Series 230V ✅ Grundfos Quality — World-renowned pump manufacturer with decades of proven reliability ✅ Whisper-Quiet Operation — Near-silent performance for undisturbed spa enjoyment ✅ Ultra-Low 0.35A Draw — 230V operation minimizes amperage load on your electrical system ✅ Rotating Volute Flexibility — Adjustable discharge direction fits virtually any plumbing layout ✅ Broad Cross-Compatibility — Replaces Grundfos, Laing, Waterway, and other 230V 1″ barb circ pumps ✅ Compact and Lightweight — Fits tight equipment compartments with ease ✅ OEM Trusted — Used in Cal Spas and other major hot tub brands ✅ 36-Month Factory Warranty — Grundfos-backed manufacturer warranty for peace of mind �� Why Buy From Parts4Tubs ✅ US-based support for American customers ✅ Fast shipping across the United States ✅ Expert advice from spa and hot tub specialists ✅ Competitive pricing in USD ✅ Full warranty support ✅ Hassle-free returns ✅ Both 115V and 230V Grundfos models in stock ✅ Dedicated customer service team �� Summary The Grundfos 43 Series 230V (SKU: PU602394) is a whisper-quiet, ultra-efficient single-speed spa circulation pump drawing just 0.35 amps at 230V/60Hz. Delivering 12–18 GPM through 1″ barb connections with a rotating adjustable volute, it fits virtually any plumbing configuration. This pump directly replaces Grundfos UP15-38SPA 230V models and cross-references to Cal Spas, Laing, Waterway, HydroQuip, and other OEM applications — all backed by a 36-month Grundfos factory warranty. Order today from Parts4Tubs for fast US shipping and expert support. Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBTUnion, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring $6.36 Max: 379 Min: 1 Step: 1 Add to cartMagic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-RingUnion, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring $8.00 Max: 953 Min: 1 Step: 1 Add to cartWaterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union)Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S $14.77 Max: 135 Min: 1 Step: 1 Add to cart1 Speed Pump / Blower / AMP Cord | 21086Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White $24.71 Max: 435 Min: 1 Step: 1 Add to cartBalboa Amp Plug 21087 (For 2 Speed Pumps)Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White $31.72 Max: 160 Min: 1 Step: 1 Add to cart Hot Tub Pump Collar & Union Size Chart Hot Tub Pump Collar & Union Size Chart Imperial & Metric Specifications Union Size Collar Size Thread OD Union OD O-Ring Size 1.5" Female ButtressThread (FBT) 2.5" / 64mm (Tip to Tip)Measurement 2-1/2" 64mm 2-13/16" 71mm 2-5/16" OD 59mm 2" Female ButtressThread (FBT) 3.1" / 78mm (Tip to Tip)Measurement 3-1/16" 78mm 3-3/8" 81mm 2-15/16" OD 75mm 2.5" Female ButtressThread (FBT) 3.6" / 91mm (Tip to Tip)Measurement 3-5/8" 91mm 4-1/4" 108mm 3-7/16" OD 87mm Important Notes The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement. Collar size is measured from thread tip to thread tip on the pump outlet. Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications. O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy. How do I Replace a Hot Tub Pump? Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance. Materials You'll Need: Replacement pump Pipe wrench Adjustable wrench Screwdriver Pipe sealant (thread tape or plumber's putty) PVC primer and cement (if you have PVC plumbing) Teflon tape (for threaded connections) Procedure: Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves) Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues. Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help. How do I know what size hot tub pump I have? Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps: Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model. Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.

Grundfos 43 Series Spa Circulation Pump – 230V Single Speed 1″ Barb
